HA24V

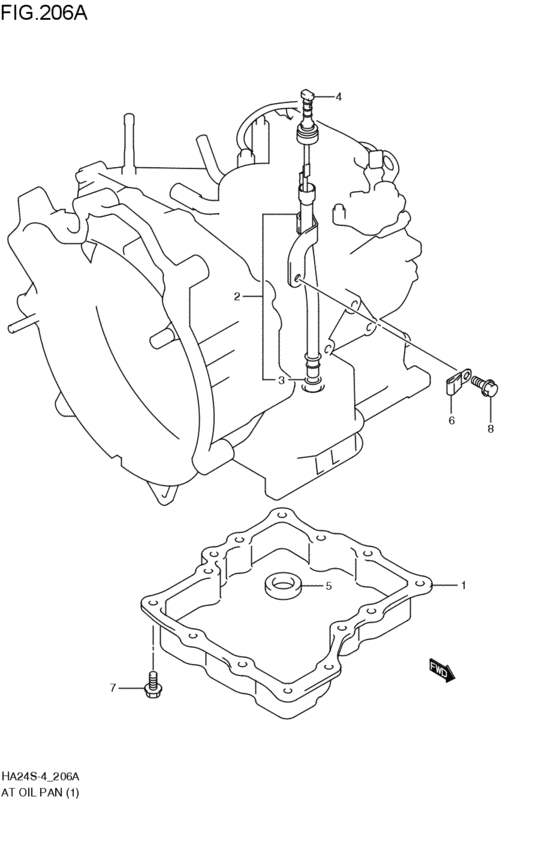

at - oil pan (3AT; 2008-05-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 24761-76G10-000 | PAN,T/M OIL |
| 2 | 24770-72J10-000 | TUBE ASSY,T/M OIL FILLER |
| 3 | 09280-09008-000 | O RING(D:2.1,ID:8.8) - O ring (d:2.1,id:8.8) |
| 4 | 24830-72J10-000 | GAUGE,T/M OIL LEVEL |
| 5 | 24861-71B70-000 | MAGNET,OIL CLEANER |
| 6 | 26585-71B70-000 | CLIP,HARN,NO.3 |
| 7 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | at - oil pan (3AT; 2008-05-01~) |
| 09280-09008-000 | O RING(D:2.1,ID:8.8) - O ring (d:2.1,id:8.8) | at - oil pan (3AT; 2008-05-01~) |
| 24761-76G10-000 | PAN,T/M OIL | at - oil pan (3AT; 2008-05-01~) |
| 24770-72J10-000 | TUBE ASSY,T/M OIL FILLER | at - oil pan (3AT; 2008-05-01~) |
| 24830-72J10-000 | GAUGE,T/M OIL LEVEL | at - oil pan (3AT; 2008-05-01~) |
| 24861-71B70-000 | MAGNET,OIL CLEANER | at - oil pan (3AT; 2008-05-01~) |
| 26585-71B70-000 | CLIP,HARN,NO.3 | at - oil pan (3AT; 2008-05-01~) |
