Search › Model › HA1W
HA1W

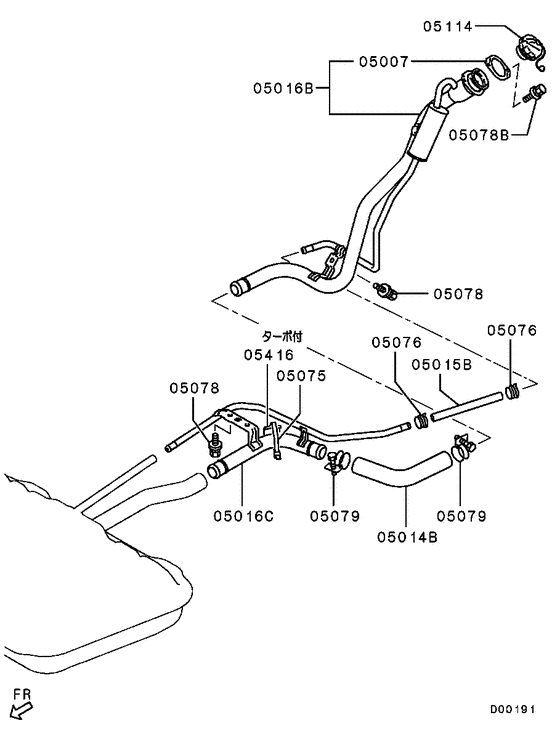

Fuel tank (FUEL FILLER NECK) 11
| # | OEM | Part name |
|---|---|---|
| 5007 | MB554982 | GASKET, FUEL FILLER NECK |
| 5014 | MN192066 | HOSE, FUEL FILLER |
| 5015 | MN192067 | HOSE, FUEL FILLER NECK BREATHER |
| 5016 | MN157727 | NECK, FUEL FILLER |
| 5075 | MB249339 | BAND, ENG BREATHER - L=169.5 |
| 5075 | MB596900 | BAND, STEERING COLUMN SWITCH - 185 |
| 5076 | MS660168 | CLIP, ROCKER COVER - D=17.8 |
| 5078 | MS240125 | BOLT, FUEL TANK - Washer assembled,8x20 |
| 5078 | MB400550 | BOLT, FUEL LINE - Washer assembled,6x16 |
| 5079 | MS660271 | CLAMP, FUEL TANK - 45 |
| 5114 | MN120695 | CAP, FUEL TANK |
| OEM | Part name | Category |
|---|---|---|
| MB249339 | BAND, ENG BREATHER - L=169.5 | Fuel tank (FUEL FILLER NECK) |
| MB400550 | BOLT, FUEL LINE - Washer assembled,6x16 | Fuel tank (FUEL FILLER NECK) |
| MB554982 | GASKET, FUEL FILLER NECK | Fuel tank (FUEL FILLER NECK) |
| MB596900 | BAND, STEERING COLUMN SWITCH - 185 | Fuel tank (FUEL FILLER NECK) |
| MN120695 | CAP, FUEL TANK | Fuel tank (FUEL FILLER NECK) |
| MN157727 | NECK, FUEL FILLER | Fuel tank (FUEL FILLER NECK) |
| MN192066 | HOSE, FUEL FILLER | Fuel tank (FUEL FILLER NECK) |
| MN192067 | HOSE, FUEL FILLER NECK BREATHER | Fuel tank (FUEL FILLER NECK) |
| MS240125 | BOLT, FUEL TANK - Washer assembled,8x20 | Fuel tank (FUEL FILLER NECK) |
| MS660168 | CLIP, ROCKER COVER - D=17.8 | Fuel tank (FUEL FILLER NECK) |
| MS660271 | CLAMP, FUEL TANK - 45 | Fuel tank (FUEL FILLER NECK) |
