| 09159-16017-000 |
NUT |

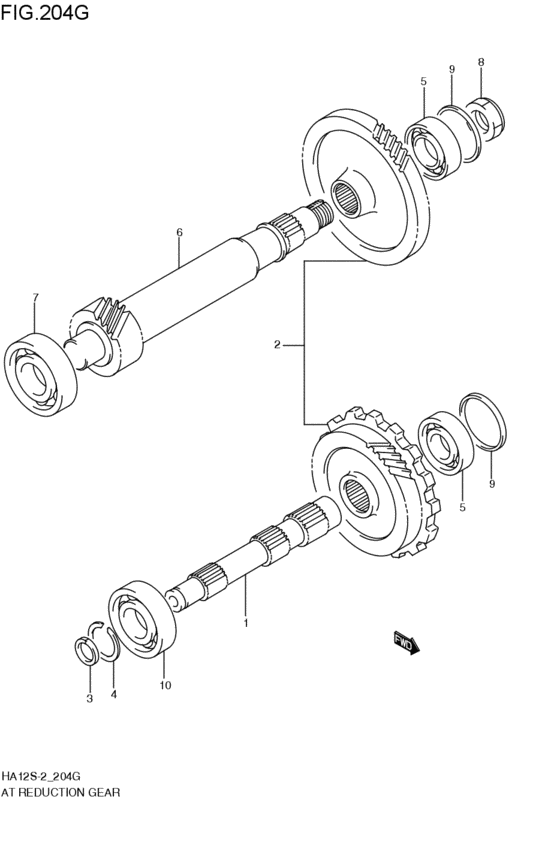

at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 09262-20106-000 |
BEARING(20X42X12) |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 09262-20138-000 |
BEARING(20X47X14) |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 09288-15601-000 |
RING |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 09380-20015-000 |
RING |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24120-56ET2-000 |
ギヤセット,リダクション |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24121-76G10-000 |
SHAFT,OUTPUT |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24131-76G10-000 |
シャフト,トランスミッションカウンタ |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24133-76G10-000 |
SHAFT,T/M COUNTER |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24134-76G10-000 |
ベアリング,カウンタシャフト,フロント |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24134-76G11-000 |
BEARING,COUNTERSHAFT |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24135-61D00-000 |
ベアリング |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24160-76G10-000 |
SHIM,OUTPUT SHAFT BRG |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24161-76G10-000 |
SHIM,OUTPUT SHAFT BRG |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24162-76G10-000 |
SHIM,OUTPUT SHAFT BRG |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24163-76G10-000 |
SHIM,OUTPUT SHAFT BRG |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24164-76G10-000 |
SHIM,OUTPUT SHAFT BRG |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24165-76G10-000 |
SHIM,OUTPUT SHAFT BRG |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
| 24166-76G10-000 |
SHIM,OUTPUT SHAFT BRG |
at - reduction gear (3AT; 1999-10-01~2001-01-01) |
