Search › Model › HA12V
HA12V

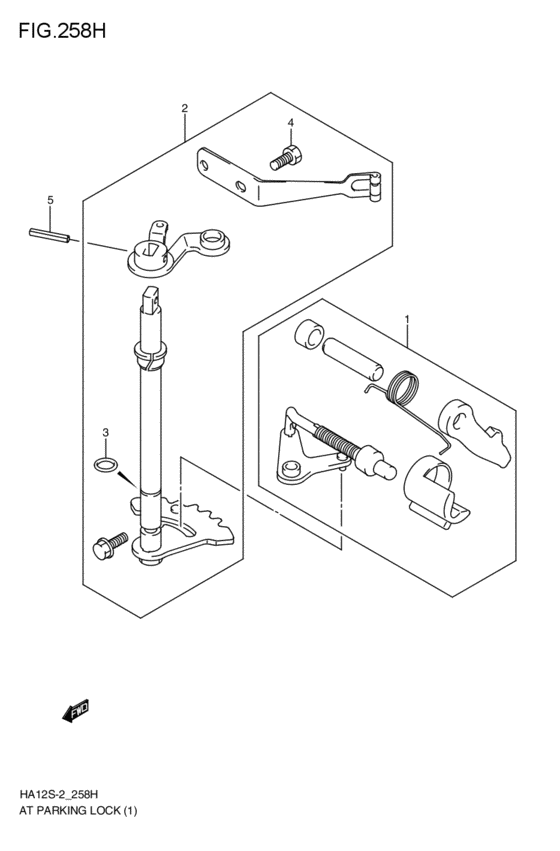

at - parking lock (3AT; 1999-10-01~2001-01-01) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 25910-76GT0-000 | PAWL SET,PARKING |
| 2 | 25940-76GT1-000 | SHAFT SET,MANUAL |
| 3 | 09280-09007-000 | O ring |
| 3 | 29280-78G10-000 | O-RING,MANUAL SHF SHAFT |
| 4 | 09128-06008-000 | SCREW(6X14) |
| 5 | 25954-51F00-000 | PIN,SELECT RANGE LEVER |
| OEM | Part name | Category |
|---|---|---|
| 09128-06008-000 | SCREW(6X14) | at - parking lock (3AT; 1999-10-01~2001-01-01) |
| 09280-09007-000 | O ring | at - parking lock (3AT; 1999-10-01~2001-01-01) |
| 25910-76GT0-000 | PAWL SET,PARKING | at - parking lock (3AT; 1999-10-01~2001-01-01) |
| 25940-76GT1-000 | SHAFT SET,MANUAL | at - parking lock (3AT; 1999-10-01~2001-01-01) |
| 25954-51F00-000 | PIN,SELECT RANGE LEVER | at - parking lock (3AT; 1999-10-01~2001-01-01) |
| 29280-78G10-000 | O-RING,MANUAL SHF SHAFT | at - parking lock (3AT; 1999-10-01~2001-01-01) |
