Search › Model › HA12S

HA12S

Suzuki ALTO-A-STAR-CELERIO · 1998 · 2,168 parts · 110 categories

2,168 items

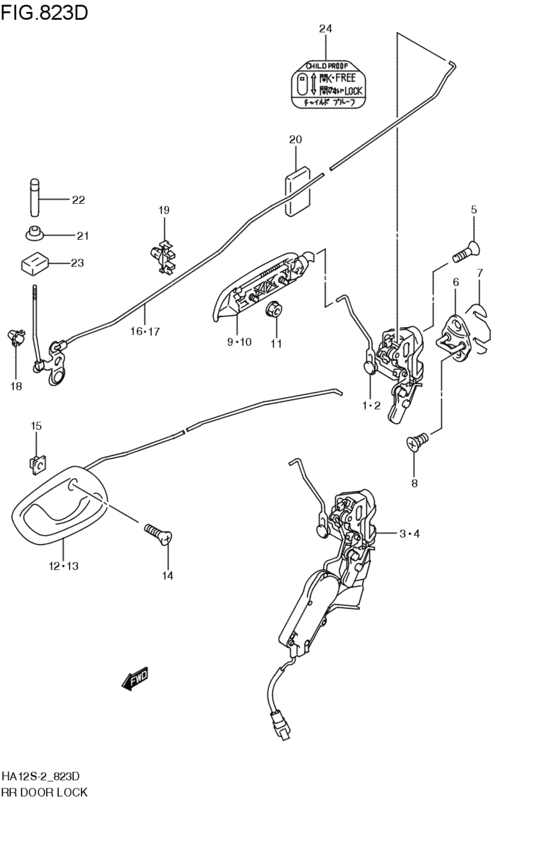

rear door lock (5DR; 1999-10-01~2001-01-01) 62

#	OEM	Part name
3	82301-77G40-000	ラッチアッシ,リヤドア,ライト
4	82302-77G40-000	ラッチアッシ,リヤドア,レフト
5	82205-83E00-000	スクリュ,ドアラッチ
5	82205-83E0V-000	SCREW
6	82610-72B11-000	STRIKER COMPDOOR
6	82610-72B12-000	STRIKER,DOOR LATCH
7	78199-78000-000	SPACER,DOOR LOCK STRIKER
8	09137-08011-000	SCREW(8X18)
9	82801-81A01-Z2S	Handle, door out rh (silver)
9	82801-81A51-Z2S	HANDLE,SIDE DR OUT,R
9	82801-81A52-Z2S	HANDLE,SIDE DR OUT,R
9	82801-81A53-Z2S	Handle Assy,fr Dr Out,r
9	82801-81A01-Z6B	ハンドルアッシ,ドアアウト,ライト(シルバー)
9	82801-81A50-Z6B	ハンドルアッシ,ドアアウト,ライト(ブラック)
9	82801-81A03-5PK	HANDLE ASSY,FR DR OUT,R
9	82801-81A04-5PK	Handle Assy,fr Dr Out,r(Black)
9	82801-81A01-Z7T	ハンドルアッシ,ドアアウト,ライト(ホワイト)
9	82801-81A51-Z7T	HANDLE,SIDE DR OUT,R
9	82801-81A52-Z7T	HANDLE,SIDE DR OUT,R
9	82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH
9	82801-81A01-Z9C	ハンドルアッシ,ドアアウト,ライト(シルバー)
9	82801-81A50-Z9C	HANDLE,SIDE DR OUT,R
9	82801-81A01-26U	Handle, door out rh (white)
9	82801-81A51-26U	HANDLE,SIDE DR OUT,R
9	82801-81A52-26U	HANDLE,SIDE DR OUT,R
9	82801-81A53-26U	Handle Assy,fr Dr Out,r
10	82802-81A01-Z2S	Handle, door out lh (silver)
10	82802-81A51-Z2S	HANDLE,SIDE DR OUT,L
10	82802-81A52-Z2S	HANDLE,SIDE DR OUT,L
10	82802-81A53-Z2S	Handle Assy,fr Dr Out,l
10	82802-81A01-Z6B	ハンドルアッシ,ドアアウト,レフト(シルバー)
10	82802-81A50-Z6B	ハンドルアッシ,ドアアウト,レフト(ブラック)
10	82802-81A03-5PK	HANDLE ASSY,FR DR OUT,L
10	82802-81A04-5PK	Handle Assy,fr Dr Out,l(Black)
10	82802-81A01-Z7T	ハンドルアッシ,ドアアウト,レフト(ホワイト)
10	82802-81A51-Z7T	HANDLE,SIDE DR OUT,L
10	82802-81A52-Z7T	HANDLE,SIDE DR OUT,L
10	82802-81A53-Z7T	Handle Assy,fr Dr Out,l
10	82802-81A01-Z9C	ハンドルアッシ,ドアアウト,レフト(シルバー)
10	82802-81A50-Z9C	HANDLE,SIDE DR OUT,L
10	82802-81A01-26U	Handle, door out lh (white)
10	82802-81A51-26U	HANDLE,SIDE DR OUT,L
10	82802-81A52-26U	HANDLE,SIDE DR OUT,L
10	82802-81A53-26U	Handle Assy,fr Dr Out,l
11	08316-10063-000	Nut
11	08316-1006B-000	NUT
12	83103-77G00-T01	HANDLE,RR DR INSIDE,R(GRAY)
12	83103-77G01-T01	HANDLE,RR DR INSIDE,R
13	83104-77G00-T01	HANDLE,RR DR INSIDE,L(GRAY)
13	83104-77G01-T01	HANDLE,RR DR INSIDE,L
14	03521-05163-000	Screw
14	03521-0516A-000	SCREW
15	83119-60B00-000	NUT,FR DOOR INSIDE HANDLE
16	83270-77G00-000	ROD,RR DOOR INSIDE LOCK,R
17	83280-77G00-000	ROD,RR DOOR INSIDE LOCK,L
18	83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD
19	83271-50E00-000	CLIP,DR HANDLE ROD
20	77591-75000-000	PAD
21	82991-76G00-T01	CAP,DR INSIDE LOCK KNOB - Cap, door inside lock knob (gray)
22	82982-65D00-T01	KNOB,SIDE DR INS LOCK - Knob, inside lock (gray)
23	83211-76G00-000	PAD SIDE DOOR INSIDE LOCK
24	86951-78004-000	CAUTION PLATE,CHILD PROOF

OEM	Part name	Category
03521-05163-000	Screw	rear door lock (5DR; 1999-10-01~2001-01-01)
03521-0516A-000	SCREW	rear door lock (5DR; 1999-10-01~2001-01-01)
08316-10063-000	Nut	rear door lock (5DR; 1999-10-01~2001-01-01)
08316-1006B-000	NUT	rear door lock (5DR; 1999-10-01~2001-01-01)
09137-08011-000	SCREW(8X18)	rear door lock (5DR; 1999-10-01~2001-01-01)
77591-75000-000	PAD	rear door lock (5DR; 1999-10-01~2001-01-01)
78199-78000-000	SPACER,DOOR LOCK STRIKER	rear door lock (5DR; 1999-10-01~2001-01-01)
82205-83E00-000	スクリュ,ドアラッチ	rear door lock (5DR; 1999-10-01~2001-01-01)
82205-83E0V-000	SCREW	rear door lock (5DR; 1999-10-01~2001-01-01)
82301-77G40-000	ラッチアッシ,リヤドア,ライト	rear door lock (5DR; 1999-10-01~2001-01-01)
82302-77G40-000	ラッチアッシ,リヤドア,レフト	rear door lock (5DR; 1999-10-01~2001-01-01)
82610-72B11-000	STRIKER COMPDOOR	rear door lock (5DR; 1999-10-01~2001-01-01)
82610-72B12-000	STRIKER,DOOR LATCH	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A01-26U	Handle, door out rh (white)	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A01-Z2S	Handle, door out rh (silver)	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A01-Z6B	ハンドルアッシ,ドアアウト,ライト(シルバー)	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A01-Z7T	ハンドルアッシ,ドアアウト,ライト(ホワイト)	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A01-Z9C	ハンドルアッシ,ドアアウト,ライト(シルバー)	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A03-5PK	HANDLE ASSY,FR DR OUT,R	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A04-5PK	Handle Assy,fr Dr Out,r(Black)	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A50-Z6B	ハンドルアッシ,ドアアウト,ライト(ブラック)	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A50-Z9C	HANDLE,SIDE DR OUT,R	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A51-26U	HANDLE,SIDE DR OUT,R	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A51-Z2S	HANDLE,SIDE DR OUT,R	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A51-Z7T	HANDLE,SIDE DR OUT,R	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A52-26U	HANDLE,SIDE DR OUT,R	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A52-Z2S	HANDLE,SIDE DR OUT,R	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A52-Z7T	HANDLE,SIDE DR OUT,R	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A53-26U	Handle Assy,fr Dr Out,r	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A53-Z2S	Handle Assy,fr Dr Out,r	rear door lock (5DR; 1999-10-01~2001-01-01)
82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A01-26U	Handle, door out lh (white)	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A01-Z2S	Handle, door out lh (silver)	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A01-Z6B	ハンドルアッシ,ドアアウト,レフト(シルバー)	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A01-Z7T	ハンドルアッシ,ドアアウト,レフト(ホワイト)	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A01-Z9C	ハンドルアッシ,ドアアウト,レフト(シルバー)	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A03-5PK	HANDLE ASSY,FR DR OUT,L	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A04-5PK	Handle Assy,fr Dr Out,l(Black)	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A50-Z6B	ハンドルアッシ,ドアアウト,レフト(ブラック)	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A50-Z9C	HANDLE,SIDE DR OUT,L	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A51-26U	HANDLE,SIDE DR OUT,L	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A51-Z2S	HANDLE,SIDE DR OUT,L	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A51-Z7T	HANDLE,SIDE DR OUT,L	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A52-26U	HANDLE,SIDE DR OUT,L	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A52-Z2S	HANDLE,SIDE DR OUT,L	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A52-Z7T	HANDLE,SIDE DR OUT,L	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A53-26U	Handle Assy,fr Dr Out,l	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A53-Z2S	Handle Assy,fr Dr Out,l	rear door lock (5DR; 1999-10-01~2001-01-01)
82802-81A53-Z7T	Handle Assy,fr Dr Out,l	rear door lock (5DR; 1999-10-01~2001-01-01)
82982-65D00-T01	KNOB,SIDE DR INS LOCK - Knob, inside lock (gray)	rear door lock (5DR; 1999-10-01~2001-01-01)
82991-76G00-T01	CAP,DR INSIDE LOCK KNOB - Cap, door inside lock knob (gray)	rear door lock (5DR; 1999-10-01~2001-01-01)
83103-77G00-T01	HANDLE,RR DR INSIDE,R(GRAY)	rear door lock (5DR; 1999-10-01~2001-01-01)
83103-77G01-T01	HANDLE,RR DR INSIDE,R	rear door lock (5DR; 1999-10-01~2001-01-01)
83104-77G00-T01	HANDLE,RR DR INSIDE,L(GRAY)	rear door lock (5DR; 1999-10-01~2001-01-01)
83104-77G01-T01	HANDLE,RR DR INSIDE,L	rear door lock (5DR; 1999-10-01~2001-01-01)
83119-60B00-000	NUT,FR DOOR INSIDE HANDLE	rear door lock (5DR; 1999-10-01~2001-01-01)
83211-76G00-000	PAD SIDE DOOR INSIDE LOCK	rear door lock (5DR; 1999-10-01~2001-01-01)
83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD	rear door lock (5DR; 1999-10-01~2001-01-01)
83270-77G00-000	ROD,RR DOOR INSIDE LOCK,R	rear door lock (5DR; 1999-10-01~2001-01-01)
83271-50E00-000	CLIP,DR HANDLE ROD	rear door lock (5DR; 1999-10-01~2001-01-01)
83280-77G00-000	ROD,RR DOOR INSIDE LOCK,L	rear door lock (5DR; 1999-10-01~2001-01-01)
86951-78004-000	CAUTION PLATE,CHILD PROOF	rear door lock (5DR; 1999-10-01~2001-01-01)

Source: Public OEM parts-catalog data
Variants: 2 / 209
Category: 110
Collected: 2026-08-01
