Search › Model › HA12S

HA12S

Suzuki ALTO-A-STAR-CELERIO · 1998 · 2,168 parts · 110 categories

2,168 items

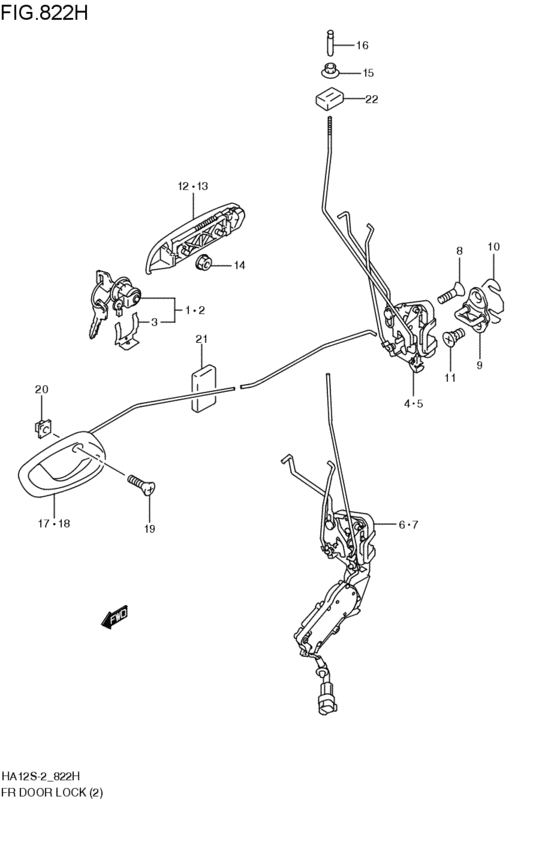

front door lock (5DR; 1999-10-01~) 60

#	OEM	Part name
1	82270-76810-000	CYLINDER,FR DR LOCK,R
2	82280-76810-000	CYLINDER,FR DR LOCK,L
3	82291-81A00-000	RETAINER,FR DR CYLINDER
6	82201-77G50-000	ラッチアッシ,フロントドア,ライト
7	82202-77G40-000	ラッチアッシ,フロントドア,レフト
8	82205-83E00-000	スクリュ,ドアラッチ
8	82205-83E0V-000	SCREW
9	82610-72B11-000	STRIKER COMPDOOR
9	82610-72B12-000	STRIKER,DOOR LATCH
10	78199-78000-000	SPACER,DOOR LOCK STRIKER
11	09137-08011-000	SCREW(8X18)
12	82801-81A01-Z2S	Handle, door out rh (silver)
12	82801-81A51-Z2S	HANDLE,SIDE DR OUT,R
12	82801-81A52-Z2S	HANDLE,SIDE DR OUT,R
12	82801-81A53-Z2S	Handle Assy,fr Dr Out,r
12	82801-81A01-Z6B	ハンドルアッシ,ドアアウト,ライト(シルバー)
12	82801-81A50-Z6B	ハンドルアッシ,ドアアウト,ライト(ブラック)
12	82801-81A03-5PK	HANDLE ASSY,FR DR OUT,R
12	82801-81A04-5PK	Handle Assy,fr Dr Out,r(Black)
12	82801-81A01-Z7T	ハンドルアッシ,ドアアウト,ライト(ホワイト)
12	82801-81A51-Z7T	HANDLE,SIDE DR OUT,R
12	82801-81A52-Z7T	HANDLE,SIDE DR OUT,R
12	82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH
12	82801-81A01-Z9C	ハンドルアッシ,ドアアウト,ライト(シルバー)
12	82801-81A50-Z9C	HANDLE,SIDE DR OUT,R
12	82801-81A01-26U	Handle, door out rh (white)
12	82801-81A51-26U	HANDLE,SIDE DR OUT,R
12	82801-81A52-26U	HANDLE,SIDE DR OUT,R
12	82801-81A53-26U	Handle Assy,fr Dr Out,r
13	82802-81A01-Z2S	Handle, door out lh (silver)
13	82802-81A51-Z2S	HANDLE,SIDE DR OUT,L
13	82802-81A52-Z2S	HANDLE,SIDE DR OUT,L
13	82802-81A53-Z2S	Handle Assy,fr Dr Out,l
13	82802-81A01-Z6B	ハンドルアッシ,ドアアウト,レフト(シルバー)
13	82802-81A50-Z6B	ハンドルアッシ,ドアアウト,レフト(ブラック)
13	82802-81A03-5PK	HANDLE ASSY,FR DR OUT,L
13	82802-81A04-5PK	Handle Assy,fr Dr Out,l(Black)
13	82802-81A01-Z7T	ハンドルアッシ,ドアアウト,レフト(ホワイト)
13	82802-81A51-Z7T	HANDLE,SIDE DR OUT,L
13	82802-81A52-Z7T	HANDLE,SIDE DR OUT,L
13	82802-81A53-Z7T	Handle Assy,fr Dr Out,l
13	82802-81A01-Z9C	ハンドルアッシ,ドアアウト,レフト(シルバー)
13	82802-81A50-Z9C	HANDLE,SIDE DR OUT,L
13	82802-81A01-26U	Handle, door out lh (white)
13	82802-81A51-26U	HANDLE,SIDE DR OUT,L
13	82802-81A52-26U	HANDLE,SIDE DR OUT,L
13	82802-81A53-26U	Handle Assy,fr Dr Out,l
14	08316-10063-000	Nut
14	08316-1006B-000	NUT
15	82991-76G00-T01	CAP,DR INSIDE LOCK KNOB - Cap, door inside lock knob (gray)
16	82982-65D00-T01	KNOB,SIDE DR INS LOCK - Knob, inside lock (gray)
17	83101-77G00-T01	HANDLE ASSY,DR INSIDE,R(GRAY)
17	83101-77G01-T01	HANDLE ASSY,DR INSIDE,R
18	83102-77G00-T01	HANDLE ASSY,DR INSIDE,L(GRAY)
18	83102-77G01-T01	HANDLE ASSY,DR INSIDE,L
19	03521-05163-000	Screw
19	03521-0516A-000	SCREW
20	83119-60B00-000	NUT,FR DOOR INSIDE HANDLE
21	77591-75000-000	PAD
22	83211-76G00-000	PAD SIDE DOOR INSIDE LOCK

OEM	Part name	Category
03521-05163-000	Screw	front door lock (5DR; 1999-10-01~)
03521-0516A-000	SCREW	front door lock (5DR; 1999-10-01~)
08316-10063-000	Nut	front door lock (5DR; 1999-10-01~)
08316-1006B-000	NUT	front door lock (5DR; 1999-10-01~)
09137-08011-000	SCREW(8X18)	front door lock (5DR; 1999-10-01~)
77591-75000-000	PAD	front door lock (5DR; 1999-10-01~)
78199-78000-000	SPACER,DOOR LOCK STRIKER	front door lock (5DR; 1999-10-01~)
82201-77G50-000	ラッチアッシ,フロントドア,ライト	front door lock (5DR; 1999-10-01~)
82202-77G40-000	ラッチアッシ,フロントドア,レフト	front door lock (5DR; 1999-10-01~)
82205-83E00-000	スクリュ,ドアラッチ	front door lock (5DR; 1999-10-01~)
82205-83E0V-000	SCREW	front door lock (5DR; 1999-10-01~)
82270-76810-000	CYLINDER,FR DR LOCK,R	front door lock (5DR; 1999-10-01~)
82280-76810-000	CYLINDER,FR DR LOCK,L	front door lock (5DR; 1999-10-01~)
82291-81A00-000	RETAINER,FR DR CYLINDER	front door lock (5DR; 1999-10-01~)
82610-72B11-000	STRIKER COMPDOOR	front door lock (5DR; 1999-10-01~)
82610-72B12-000	STRIKER,DOOR LATCH	front door lock (5DR; 1999-10-01~)
82801-81A01-26U	Handle, door out rh (white)	front door lock (5DR; 1999-10-01~)
82801-81A01-Z2S	Handle, door out rh (silver)	front door lock (5DR; 1999-10-01~)
82801-81A01-Z6B	ハンドルアッシ,ドアアウト,ライト(シルバー)	front door lock (5DR; 1999-10-01~)
82801-81A01-Z7T	ハンドルアッシ,ドアアウト,ライト(ホワイト)	front door lock (5DR; 1999-10-01~)
82801-81A01-Z9C	ハンドルアッシ,ドアアウト,ライト(シルバー)	front door lock (5DR; 1999-10-01~)
82801-81A03-5PK	HANDLE ASSY,FR DR OUT,R	front door lock (5DR; 1999-10-01~)
82801-81A04-5PK	Handle Assy,fr Dr Out,r(Black)	front door lock (5DR; 1999-10-01~)
82801-81A50-Z6B	ハンドルアッシ,ドアアウト,ライト(ブラック)	front door lock (5DR; 1999-10-01~)
82801-81A50-Z9C	HANDLE,SIDE DR OUT,R	front door lock (5DR; 1999-10-01~)
82801-81A51-26U	HANDLE,SIDE DR OUT,R	front door lock (5DR; 1999-10-01~)
82801-81A51-Z2S	HANDLE,SIDE DR OUT,R	front door lock (5DR; 1999-10-01~)
82801-81A51-Z7T	HANDLE,SIDE DR OUT,R	front door lock (5DR; 1999-10-01~)
82801-81A52-26U	HANDLE,SIDE DR OUT,R	front door lock (5DR; 1999-10-01~)
82801-81A52-Z2S	HANDLE,SIDE DR OUT,R	front door lock (5DR; 1999-10-01~)
82801-81A52-Z7T	HANDLE,SIDE DR OUT,R	front door lock (5DR; 1999-10-01~)
82801-81A53-26U	Handle Assy,fr Dr Out,r	front door lock (5DR; 1999-10-01~)
82801-81A53-Z2S	Handle Assy,fr Dr Out,r	front door lock (5DR; 1999-10-01~)
82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH	front door lock (5DR; 1999-10-01~)
82802-81A01-26U	Handle, door out lh (white)	front door lock (5DR; 1999-10-01~)
82802-81A01-Z2S	Handle, door out lh (silver)	front door lock (5DR; 1999-10-01~)
82802-81A01-Z6B	ハンドルアッシ,ドアアウト,レフト(シルバー)	front door lock (5DR; 1999-10-01~)
82802-81A01-Z7T	ハンドルアッシ,ドアアウト,レフト(ホワイト)	front door lock (5DR; 1999-10-01~)
82802-81A01-Z9C	ハンドルアッシ,ドアアウト,レフト(シルバー)	front door lock (5DR; 1999-10-01~)
82802-81A03-5PK	HANDLE ASSY,FR DR OUT,L	front door lock (5DR; 1999-10-01~)
82802-81A04-5PK	Handle Assy,fr Dr Out,l(Black)	front door lock (5DR; 1999-10-01~)
82802-81A50-Z6B	ハンドルアッシ,ドアアウト,レフト(ブラック)	front door lock (5DR; 1999-10-01~)
82802-81A50-Z9C	HANDLE,SIDE DR OUT,L	front door lock (5DR; 1999-10-01~)
82802-81A51-26U	HANDLE,SIDE DR OUT,L	front door lock (5DR; 1999-10-01~)
82802-81A51-Z2S	HANDLE,SIDE DR OUT,L	front door lock (5DR; 1999-10-01~)
82802-81A51-Z7T	HANDLE,SIDE DR OUT,L	front door lock (5DR; 1999-10-01~)
82802-81A52-26U	HANDLE,SIDE DR OUT,L	front door lock (5DR; 1999-10-01~)
82802-81A52-Z2S	HANDLE,SIDE DR OUT,L	front door lock (5DR; 1999-10-01~)
82802-81A52-Z7T	HANDLE,SIDE DR OUT,L	front door lock (5DR; 1999-10-01~)
82802-81A53-26U	Handle Assy,fr Dr Out,l	front door lock (5DR; 1999-10-01~)
82802-81A53-Z2S	Handle Assy,fr Dr Out,l	front door lock (5DR; 1999-10-01~)
82802-81A53-Z7T	Handle Assy,fr Dr Out,l	front door lock (5DR; 1999-10-01~)
82982-65D00-T01	KNOB,SIDE DR INS LOCK - Knob, inside lock (gray)	front door lock (5DR; 1999-10-01~)
82991-76G00-T01	CAP,DR INSIDE LOCK KNOB - Cap, door inside lock knob (gray)	front door lock (5DR; 1999-10-01~)
83101-77G00-T01	HANDLE ASSY,DR INSIDE,R(GRAY)	front door lock (5DR; 1999-10-01~)
83101-77G01-T01	HANDLE ASSY,DR INSIDE,R	front door lock (5DR; 1999-10-01~)
83102-77G00-T01	HANDLE ASSY,DR INSIDE,L(GRAY)	front door lock (5DR; 1999-10-01~)
83102-77G01-T01	HANDLE ASSY,DR INSIDE,L	front door lock (5DR; 1999-10-01~)
83119-60B00-000	NUT,FR DOOR INSIDE HANDLE	front door lock (5DR; 1999-10-01~)
83211-76G00-000	PAD SIDE DOOR INSIDE LOCK	front door lock (5DR; 1999-10-01~)
