HA12S

Suzuki ALTO-A-STAR-CELERIO · 1998 · 2,168 parts · 110 categories

2,168 items

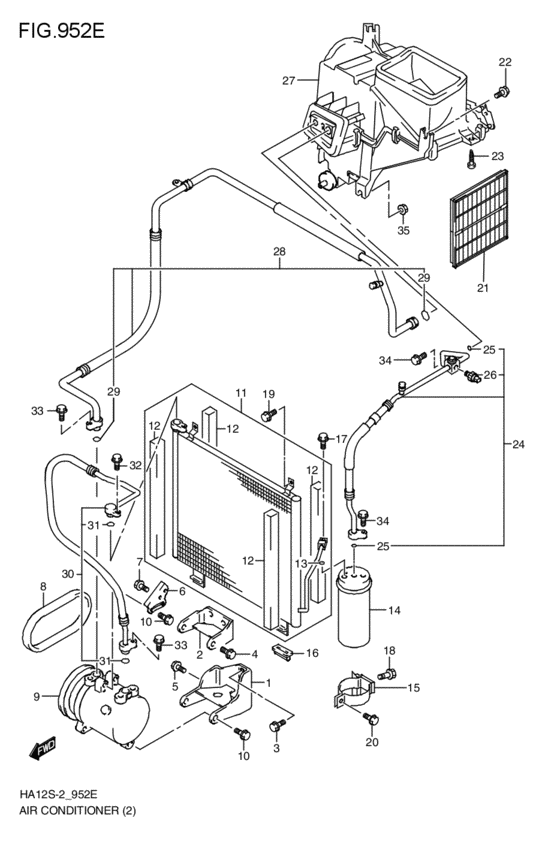

air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01) 44

#	OEM	Part name
1	95110-76G00-000	ブラケット,コンプレッサ
3	01550-08203-000	Bolt
3	01550-0820B-000	Bolt
3	01550-0820A-000	Bolt - Bolt, funnel bracket
5	01550-08603-000	Bolt, crankcase - Bolt, sec case
5	01550-0860B-000	Bolt - Bolt, sec case
5	01550-0860A-000	Bolt
6	95120-73G01-000	Stay, compressor adjust
6	95120-73G10-000	STAY,COMPRESSOR ADJUST
8	95141-71B00-000	V-BELT,L:730
9	95200-76G01-000	コンプレッサアッシ
9	95200-76G03-000	COMPRESSOR ASSY
9	95200-77G00-000	Compressor assy (seiko)
9	95200-77G02-000	COMPRESSOR ASSY
11	95310-76G20-000	コンデンサアッシ
11	95310-76F00-000	CONDENSER ASSY
12	95815-50E00-000	PACKING,CONDENSER
13	95891-50G00-000	O-RING,D:1.8 ID:6.7
14	95330-77G00-000	RECEIVER DRYER
15	95350-76G00-000	BRACKET,RCVR
16	95851-75F00-000	BUSH,COND
17	01550-06203-000	Bolt
17	01550-0620B-000	Bolt - Bolt, inspection cap
18	02162-06163-000	Screw - Bolt
18	02162-0616B-000	SCREW - Bolt, adjust
21	95860-81A00-000	フィルタ
21	95860-81A10-000	FILTER
21	95860-81A01-000	FILTER
22	09116-06167-000	BOLT(6X20) - Bolt (6x20)
23	03541-05163-000	Screw
23	03541-0516A-000	SCREW
24	95732-76G00-000	Hose, receiver outlet
24	95732-76G02-000	HOSE,RCVR OUTLET
26	95526-50G10-000	Switch, dual pressure
26	95526-50G30-000	SWITCH,DUAL PRESSURE
27	95400-76G03-000	クーリングユニット
27	95400-76G05-000	COOLING UNIT
28	95710-76G02-000	ホース,サクション
28	95710-76G01-000	ホース,サクション
29	95896-50G00-000	O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4)
30	95720-76G00-000	Hose, discharge
30	95720-76G02-000	HOSE,DISCHARGE
31	95895-50G00-000	O-RING,D:2.4 ID:10.8
35	09159-06081-000	NUT

OEM	Part name	Category
01550-06203-000	Bolt	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
01550-0620B-000	Bolt - Bolt, inspection cap	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
01550-08203-000	Bolt	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
01550-0820A-000	Bolt - Bolt, funnel bracket	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
01550-0820B-000	Bolt	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
01550-08603-000	Bolt, crankcase - Bolt, sec case	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
01550-0860A-000	Bolt	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
01550-0860B-000	Bolt - Bolt, sec case	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
02162-06163-000	Screw - Bolt	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
02162-0616B-000	SCREW - Bolt, adjust	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
03541-05163-000	Screw	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
03541-0516A-000	SCREW	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
09116-06167-000	BOLT(6X20) - Bolt (6x20)	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
09159-06081-000	NUT	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95110-76G00-000	ブラケット,コンプレッサ	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95120-73G01-000	Stay, compressor adjust	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95120-73G10-000	STAY,COMPRESSOR ADJUST	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95141-71B00-000	V-BELT,L:730	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95200-76G01-000	コンプレッサアッシ	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95200-76G03-000	COMPRESSOR ASSY	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95200-77G00-000	Compressor assy (seiko)	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95200-77G02-000	COMPRESSOR ASSY	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95310-76F00-000	CONDENSER ASSY	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95310-76G20-000	コンデンサアッシ	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95330-77G00-000	RECEIVER DRYER	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95350-76G00-000	BRACKET,RCVR	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95400-76G03-000	クーリングユニット	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95400-76G05-000	COOLING UNIT	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95526-50G10-000	Switch, dual pressure	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95526-50G30-000	SWITCH,DUAL PRESSURE	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95710-76G01-000	ホース,サクション	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95710-76G02-000	ホース,サクション	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95720-76G00-000	Hose, discharge	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95720-76G02-000	HOSE,DISCHARGE	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95732-76G00-000	Hose, receiver outlet	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95732-76G02-000	HOSE,RCVR OUTLET	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95815-50E00-000	PACKING,CONDENSER	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95851-75F00-000	BUSH,COND	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95860-81A00-000	フィルタ	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95860-81A01-000	FILTER	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95860-81A10-000	FILTER	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95891-50G00-000	O-RING,D:1.8 ID:6.7	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95895-50G00-000	O-RING,D:2.4 ID:10.8	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
95896-50G00-000	O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4)	air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01)
