Search › Model › H82W
H82W

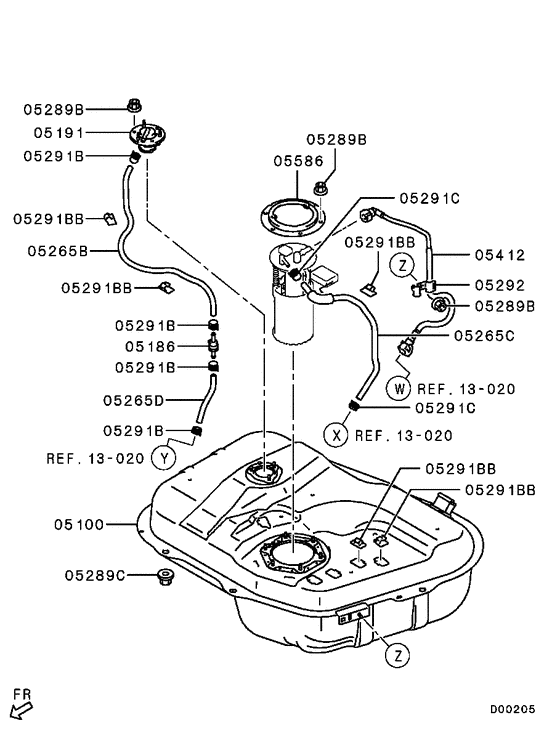

Fuel tank (FUEL TANK) 11
| # | OEM | Part name |
|---|---|---|
| 5186 | MR487888 | VALVE, FUEL FILLER NECK |
| 5191 | MN120764 | VALVE, FUEL TANK SAFETY |
| 5265 | MU602845 | HOSE, FUEL TANK - 6x450 |
| 5289 | MS440501 | NUT, FUEL TANK - Washer assembled,5 |
| 5289 | MS440523 | NUT, FUEL TANK - Washer assembled,8 |
| 5291 | MS660169 | CLIP, FUEL TANK - D=10 |
| 5291 | MR342642 | CLIP, FUEL TANK - 10 |
| 5291 | MR342900 | CLIP, FUEL TANK - 8 |
| 5291 | MR487075 | CLIP, FUEL TANK |
| 5292 | MR970572 | CLAMP, FUEL TANK |
| 5586 | MR970570 | PLATE, FUEL PUMP BRACKET |
| OEM | Part name | Category |
|---|---|---|
| MN120764 | VALVE, FUEL TANK SAFETY | Fuel tank (FUEL TANK) |
| MR342642 | CLIP, FUEL TANK - 10 | Fuel tank (FUEL TANK) |
| MR342900 | CLIP, FUEL TANK - 8 | Fuel tank (FUEL TANK) |
| MR487075 | CLIP, FUEL TANK | Fuel tank (FUEL TANK) |
| MR487888 | VALVE, FUEL FILLER NECK | Fuel tank (FUEL TANK) |
| MR970570 | PLATE, FUEL PUMP BRACKET | Fuel tank (FUEL TANK) |
| MR970572 | CLAMP, FUEL TANK | Fuel tank (FUEL TANK) |
| MS440501 | NUT, FUEL TANK - Washer assembled,5 | Fuel tank (FUEL TANK) |
| MS440523 | NUT, FUEL TANK - Washer assembled,8 | Fuel tank (FUEL TANK) |
| MS660169 | CLIP, FUEL TANK - D=10 | Fuel tank (FUEL TANK) |
| MU602845 | HOSE, FUEL TANK - 6x450 | Fuel tank (FUEL TANK) |
