H82W

Mitsubishi EK-SERIES · 2006 · 1,417 parts · 208 categories

← Back to categories

1,417 items

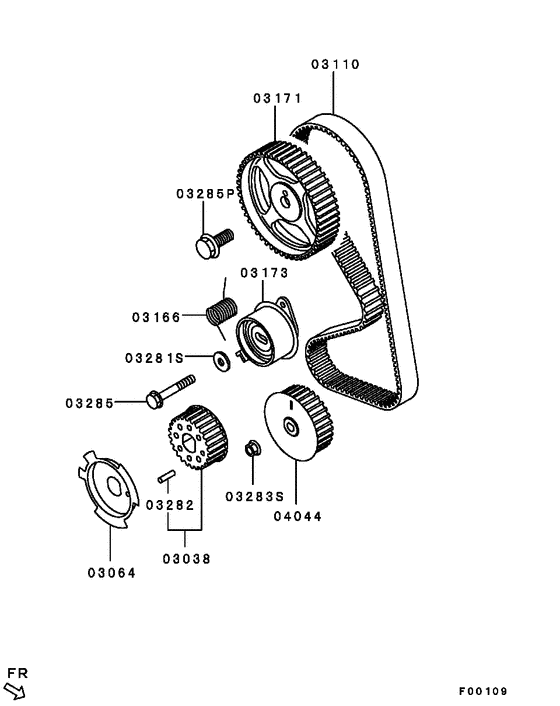

Camshaft & valve (0803.2- (TIMING TRAIN)) 12

#	OEM	Part name
3038	MD356475	SPROCKET, CRANKSHAFT CAMSHAFT DRIVE
3064	MD353845	BLADE, CRANKSHAFT ANGLE SENSING
3110	MN115158	BELT, VALVE TIMING
3166	MD365313	SPRING, TIMING BELT TENSIONER
3171	MD349637	SPROCKET, CAMSHAFT
3173	MD351829	TENSIONER, TIMING BELT
3281	MF450154	WASHER, ENG FR MOUNTING - Plain,8
3282	MD185714	SPRING PIN, TIMING BELT TRAIN - 5x20
3282	MF472571	SPRING PIN, TIMING BELT TRAIN - 5x20
3283	MD090676	NUT, TIMING BELT TRAIN - Flange,8
3285	MF140285	BOLT, ENG RR PLATE - Flange,12x30
4044	MD356477	SPROCKET, ENG OIL PUMP

OEM	Part name	Category
MD090676	NUT, TIMING BELT TRAIN - Flange,8	Camshaft & valve (0803.2- (TIMING TRAIN))
MD185714	SPRING PIN, TIMING BELT TRAIN - 5x20	Camshaft & valve (0803.2- (TIMING TRAIN))
MD349637	SPROCKET, CAMSHAFT	Camshaft & valve (0803.2- (TIMING TRAIN))
MD351829	TENSIONER, TIMING BELT	Camshaft & valve (0803.2- (TIMING TRAIN))
MD353845	BLADE, CRANKSHAFT ANGLE SENSING	Camshaft & valve (0803.2- (TIMING TRAIN))
MD356475	SPROCKET, CRANKSHAFT CAMSHAFT DRIVE	Camshaft & valve (0803.2- (TIMING TRAIN))
MD356477	SPROCKET, ENG OIL PUMP	Camshaft & valve (0803.2- (TIMING TRAIN))
MD365313	SPRING, TIMING BELT TENSIONER	Camshaft & valve (0803.2- (TIMING TRAIN))
MF140285	BOLT, ENG RR PLATE - Flange,12x30	Camshaft & valve (0803.2- (TIMING TRAIN))
MF450154	WASHER, ENG FR MOUNTING - Plain,8	Camshaft & valve (0803.2- (TIMING TRAIN))
MF472571	SPRING PIN, TIMING BELT TRAIN - 5x20	Camshaft & valve (0803.2- (TIMING TRAIN))
MN115158	BELT, VALVE TIMING	Camshaft & valve (0803.2- (TIMING TRAIN))
