Search › Model › H77W
H77W

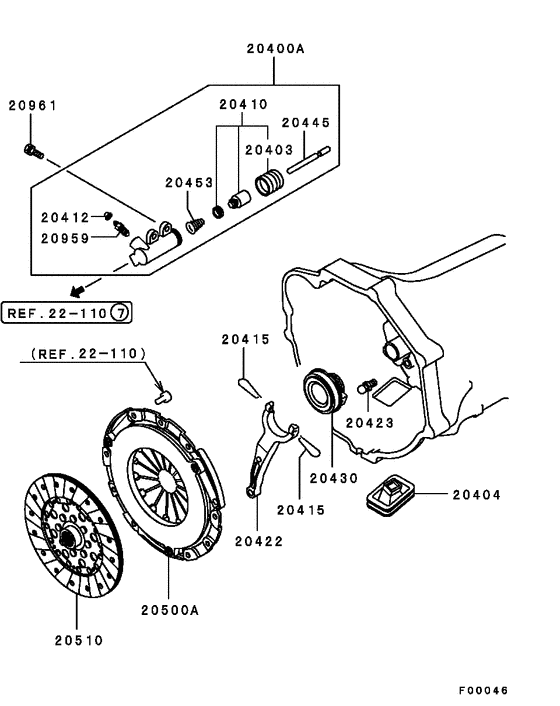

Clutch & clutch release (ALL) 15
| # | OEM | Part name |
|---|---|---|
| 20400 | MR410188 | Cylinder Assy, Clutch Release |
| 20403 | MD603464 | BOOT, CLUTCH RELEASE CYLINDER |
| 20404 | MR377770 | BOOT, CLUTCH RELEASE FORK |
| 20410 | MD979428 | CYLINDER KIT, CLUTCH RELEASE |
| 20412 | MD701140 | CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW |
| 20415 | MD701242 | CLIP, CLUTCH RELEASE BEARING RETURN |
| 20422 | MD703275 | FORK, CLUTCH RELEASE |
| 20423 | MR388790 | FULCRUM, CLUTCH RELEASE FORK |
| 20430 | MD703270 | BEARING, CLUTCH RELEASE - Ball,70.1 |
| 20445 | MD621009 | PUSH ROD, CLUTCH RELEASE CYLINDER |
| 20453 | MR486159 | SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN |
| 20500 | MR534369 | CLUTCH COVER ASSY |
| 20510 | MR534961 | CLUTCH DISC - 225 |
| 20959 | MD704268 | PLUG, M/T CLUTCH CONTROL EQUIP |
| 20961 | MF241255 | BOLT, CYLINDER HEAD - Washer assembled,8x25 |
| OEM | Part name | Category |
|---|---|---|
| MD603464 | BOOT, CLUTCH RELEASE CYLINDER | Clutch & clutch release (ALL) |
| MD621009 | PUSH ROD, CLUTCH RELEASE CYLINDER | Clutch & clutch release (ALL) |
| MD701140 | CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW | Clutch & clutch release (ALL) |
| MD701242 | CLIP, CLUTCH RELEASE BEARING RETURN | Clutch & clutch release (ALL) |
| MD703270 | BEARING, CLUTCH RELEASE - Ball,70.1 | Clutch & clutch release (ALL) |
| MD703275 | FORK, CLUTCH RELEASE | Clutch & clutch release (ALL) |
| MD704268 | PLUG, M/T CLUTCH CONTROL EQUIP | Clutch & clutch release (ALL) |
| MD979428 | CYLINDER KIT, CLUTCH RELEASE | Clutch & clutch release (ALL) |
| MF241255 | BOLT, CYLINDER HEAD - Washer assembled,8x25 | Clutch & clutch release (ALL) |
| MR377770 | BOOT, CLUTCH RELEASE FORK | Clutch & clutch release (ALL) |
| MR388790 | FULCRUM, CLUTCH RELEASE FORK | Clutch & clutch release (ALL) |
| MR410188 | Cylinder Assy, Clutch Release | Clutch & clutch release (ALL) |
| MR486159 | SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN | Clutch & clutch release (ALL) |
| MR534369 | CLUTCH COVER ASSY | Clutch & clutch release (ALL) |
| MR534961 | CLUTCH DISC - 225 | Clutch & clutch release (ALL) |
