Search › Model › H66W
H66W

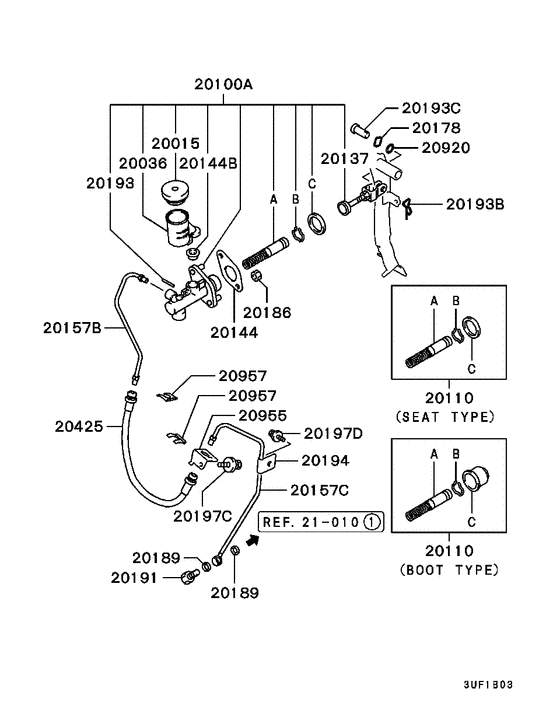

Clutch control (RHD..-0006.3) 17
| # | OEM | Part name |
|---|---|---|
| 20015 | MB555135 | CAP, CLUTCH FLUID RESERVOIR |
| 20036 | MR272776 | RESERVOIR, CLUTCH FLUID |
| 20100 | MR319787 | CYLINDER ASSY, CLUTCH MASTER |
| 20110 | MR403052 | CYLINDER KIT, CLUTCH MASTER |
| 20137 | MB555211 | PUSH ROD, CLUTCH M/CYL |
| 20144 | MB555016 | SEAL, CLUTCH M/CYL |
| 20144 | MR244929 | SEAL, CLUTCH M/CYL |
| 20157 | MR491566 | TUBE,CLUTCH M/CYL |
| 20178 | MF451105 | WASHER, BACK DOOR LOCKING - Wave,10 |
| 20186 | MS440503 | NUT - Washer assembled,8 |
| 20193 | MR244930 | PIN, CLUTCH M/CYL |
| 20193 | MB858800 | PIN, BRAKE BOOSTER - Snap,10 |
| 20193 | MF473492 | PIN, CLUTCH M/CYL - Clevis,10x23 |
| 20197 | MF243624 | BOLT - Washer assembled,6x16 |
| 20197 | MF240051 | BOLT, ROCKER COVER - Washer assembled,8x16 |
| 20920 | MF520006 | O-RING, ENG OIL FILLER - 10.1 |
| 20957 | MA431825 | CLIP, BRAKE FLUID LINE - 13 |
| OEM | Part name | Category |
|---|---|---|
| MA431825 | CLIP, BRAKE FLUID LINE - 13 | Clutch control (RHD..-0006.3) |
| MB555016 | SEAL, CLUTCH M/CYL | Clutch control (RHD..-0006.3) |
| MB555135 | CAP, CLUTCH FLUID RESERVOIR | Clutch control (RHD..-0006.3) |
| MB555211 | PUSH ROD, CLUTCH M/CYL | Clutch control (RHD..-0006.3) |
| MB858800 | PIN, BRAKE BOOSTER - Snap,10 | Clutch control (RHD..-0006.3) |
| MF240051 | BOLT, ROCKER COVER - Washer assembled,8x16 | Clutch control (RHD..-0006.3) |
| MF243624 | BOLT - Washer assembled,6x16 | Clutch control (RHD..-0006.3) |
| MF451105 | WASHER, BACK DOOR LOCKING - Wave,10 | Clutch control (RHD..-0006.3) |
| MF473492 | PIN, CLUTCH M/CYL - Clevis,10x23 | Clutch control (RHD..-0006.3) |
| MF520006 | O-RING, ENG OIL FILLER - 10.1 | Clutch control (RHD..-0006.3) |
| MR244929 | SEAL, CLUTCH M/CYL | Clutch control (RHD..-0006.3) |
| MR244930 | PIN, CLUTCH M/CYL | Clutch control (RHD..-0006.3) |
| MR272776 | RESERVOIR, CLUTCH FLUID | Clutch control (RHD..-0006.3) |
| MR319787 | CYLINDER ASSY, CLUTCH MASTER | Clutch control (RHD..-0006.3) |
| MR403052 | CYLINDER KIT, CLUTCH MASTER | Clutch control (RHD..-0006.3) |
| MR491566 | TUBE,CLUTCH M/CYL | Clutch control (RHD..-0006.3) |
| MS440503 | NUT - Washer assembled,8 | Clutch control (RHD..-0006.3) |
