Search › Model › H57A
H57A

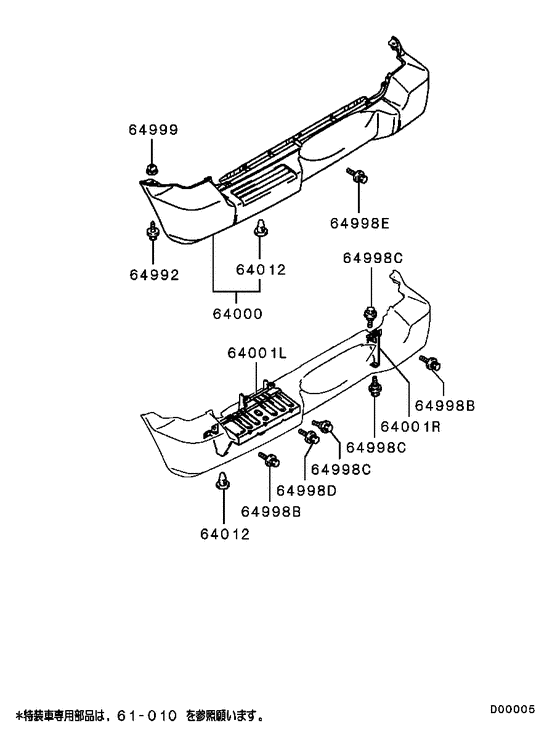

Rear bumper & support 10
| # | OEM | Part name |
|---|---|---|
| 64000 | MR273035 | FACE KIT, RR BUMPER |
| 64000 | MR414144 | FACE KIT, RR BUMPER |
| 64001 | MR208902 | REINFORCEMENT, RR BUMPER, LH |
| 64001 | MR208903 | REINFORCEMENT, RR BUMPER, RH |
| 64012 | MB253964 | CLIP, FR BUMPER |
| 64992 | MS452397 | SCREW, FR MUD GUARD - Tapping,6x20 |
| 64998 | MS240397 | BOLT, FR DOOR WINDOW - Washer assembled,8x20 |
| 64998 | MS240631 | BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 |
| 64998 | MS240586 | BOLT, BODY LOOSE PANEL - Washer assembled,8x25 |
| 64999 | MS480003 | GROMMET, FUEL FILLER LID PANEL - Screw,6 |
| OEM | Part name | Category |
|---|---|---|
| MB253964 | CLIP, FR BUMPER | Rear bumper & support |
| MR208902 | REINFORCEMENT, RR BUMPER, LH | Rear bumper & support |
| MR208903 | REINFORCEMENT, RR BUMPER, RH | Rear bumper & support |
| MR273035 | FACE KIT, RR BUMPER | Rear bumper & support |
| MR414144 | FACE KIT, RR BUMPER | Rear bumper & support |
| MS240397 | BOLT, FR DOOR WINDOW - Washer assembled,8x20 | Rear bumper & support |
| MS240586 | BOLT, BODY LOOSE PANEL - Washer assembled,8x25 | Rear bumper & support |
| MS240631 | BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 | Rear bumper & support |
| MS452397 | SCREW, FR MUD GUARD - Tapping,6x20 | Rear bumper & support |
| MS480003 | GROMMET, FUEL FILLER LID PANEL - Screw,6 | Rear bumper & support |
