Search › Model › H48A
H48A

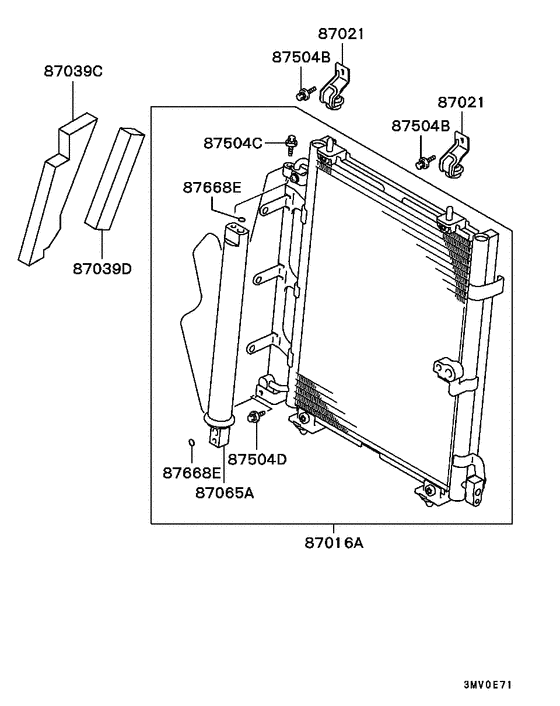

A/c condenser, piping (CONDENSER) 9
| # | OEM | Part name |
|---|---|---|
| 87016 | MR460283 | CONDENSER ASSY, A/C REFRIGERANT |
| 87021 | MR460414 | BRACKET, A/C CONDENSER |
| 87039 | MR460871 | INSULATOR, A/C CONDENSER |
| 87039 | MR460571 | INSULATOR, A/C CONDENSER |
| 87065 | MR460615 | RECEIVER ASSY, A/C |
| 87504 | MS240121 | BOLT, CONNROD - Washer assembled,6x16 |
| 87504 | MF244228 | BOLT, A/C PIPING - Washer assembled,6x25 |
| 87504 | MF244230 | BOLT, A/C CONDENSER - Washer assembled,6x30 |
| 87668 | MB946604 | O-RING, RR A/C |
| OEM | Part name | Category |
|---|---|---|
| MB946604 | O-RING, RR A/C | A/c condenser, piping (CONDENSER) |
| MF244228 | BOLT, A/C PIPING - Washer assembled,6x25 | A/c condenser, piping (CONDENSER) |
| MF244230 | BOLT, A/C CONDENSER - Washer assembled,6x30 | A/c condenser, piping (CONDENSER) |
| MR460283 | CONDENSER ASSY, A/C REFRIGERANT | A/c condenser, piping (CONDENSER) |
| MR460414 | BRACKET, A/C CONDENSER | A/c condenser, piping (CONDENSER) |
| MR460571 | INSULATOR, A/C CONDENSER | A/c condenser, piping (CONDENSER) |
| MR460615 | RECEIVER ASSY, A/C | A/c condenser, piping (CONDENSER) |
| MR460871 | INSULATOR, A/C CONDENSER | A/c condenser, piping (CONDENSER) |
| MS240121 | BOLT, CONNROD - Washer assembled,6x16 | A/c condenser, piping (CONDENSER) |
