Search › Model › H41

H41

Nissan ATLAS-CONDOR · 1991 · 2,256 parts · 205 categories

2,256 items

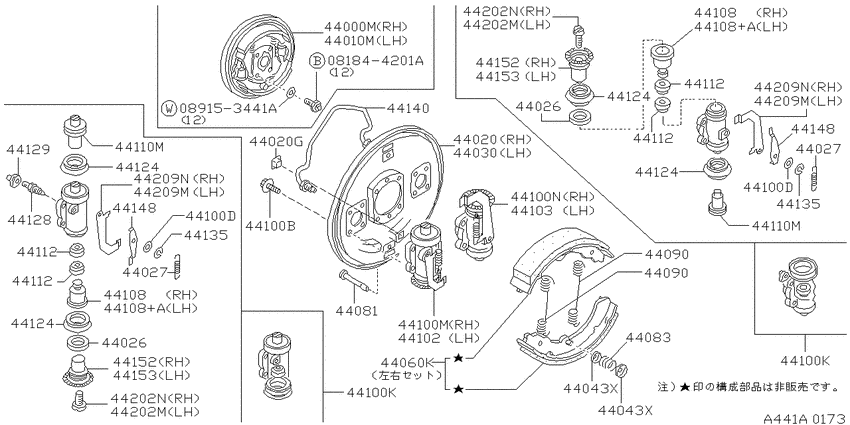

Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46)) 50

#	OEM	Part name
44000	44000-06D00	Brake Assy-Drum, Rear Rh
44000	44000-0T610	Brake Assy-Drum, Rear Rh
44000	44000-0T611	Brake Assy-Drum, Rear Rh
44010	44010-06D00	Brake Assy-Drum, Rear Lh
44010	44010-0T610	Brake Assy-Drum, Rear Lh
44010	44010-0T611	Brake Assy-Drum, Rear Lh
44020	44020-0T610	Plate Assy-Back, Rear Brake Rh
44020	44020-0T910	Plate Assy-Back, Rear Brake Rh
44020	41098-0T910	Plug-Adjuster Hole
44026	44133-0T000	Spacer-Adjusting
44026	44133-0T001	Spacer-Adjusting
44027	44214-0T000	Spring-Adjusting, Front Brake
44030	44030-0T610	Plate Assy-Back, Rear Brake Lh
44030	44030-0T910	Plate Assy-Back, Rear Brake Lh
44043	44043-L9000	Cup-Fixing Shoe
44060	41060-0T925	Shoe Set-Brake
44081	44025-50H00	Pin-Fixing Shoe
44100	41005-0T010	Bolt
44100	44139-0T000	Washer
44100	44139-0T001	Washer
44100	44100-0T010	Cylinder Assy-Rear Wheel, Fore Rh
44100	44101-0T010	Cylinder Assy-Rear Wheel, After Rh
44102	44102-0T010	Cylinder Assy-Rear Wheel, Fore Lh
44103	44103-0T010	Cylinder Assy-Rear Wheel, After Lh
44108	44121-0T000	Piston-Cylinder
44108	44121-0T001	Piston-Cylinder
44108	44121-0T500	Piston-Cylinder
44108	44121-0T501	Piston-Cylinder
44108	44122-0T000	Piston-Cylinder
44108	44122-0T001	Piston-Cylinder
44108	44122-0T500	Piston-Cylinder
44108	44122-0T501	Piston-Cylinder
44110	44110-0T000	Anchor Piston
44110	44110-0T500	Anchor Piston
44128	44128-0T000	Screw-Bleeder
44129	41129-60R00	Cap-Bleeder Screw
44135	44135-0T000	Ring-Retainer
44140	41140-0T910	Tube Assy-Bridge, Front Rh
44148	44148-0T000	Plate-Lock
44152	44204-0T000	Adjuster-Rh
44152	44204-0T001	Adjuster-Rh
44153	44205-0T000	Adjuster-Lh
44153	44205-0T001	Adjuster-Lh
44202	44203-0T000	Screw-Lh
44202	44203-0T001	Screw-Lh
44202	44202-0T000	Screw-Rh
44202	44202-0T001	Screw-Rh
44209	44211-0T000	Lever Assy-Adjuster, Lh
44209	44210-0T000	Lever Assy-Adjuster, Rh
81844201	08184-4201A	Bolt-hexagon

OEM	Part name	Category
08184-4201A	Bolt-hexagon	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
41005-0T010	Bolt	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
41060-0T925	Shoe Set-Brake	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
41098-0T910	Plug-Adjuster Hole	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
41129-60R00	Cap-Bleeder Screw	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
41140-0T910	Tube Assy-Bridge, Front Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44000-06D00	Brake Assy-Drum, Rear Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44000-0T610	Brake Assy-Drum, Rear Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44000-0T611	Brake Assy-Drum, Rear Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44010-06D00	Brake Assy-Drum, Rear Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44010-0T610	Brake Assy-Drum, Rear Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44010-0T611	Brake Assy-Drum, Rear Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44020-0T610	Plate Assy-Back, Rear Brake Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44020-0T910	Plate Assy-Back, Rear Brake Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44025-50H00	Pin-Fixing Shoe	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44030-0T610	Plate Assy-Back, Rear Brake Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44030-0T910	Plate Assy-Back, Rear Brake Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44043-L9000	Cup-Fixing Shoe	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44100-0T010	Cylinder Assy-Rear Wheel, Fore Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44101-0T010	Cylinder Assy-Rear Wheel, After Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44102-0T010	Cylinder Assy-Rear Wheel, Fore Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44103-0T010	Cylinder Assy-Rear Wheel, After Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44110-0T000	Anchor Piston	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44110-0T500	Anchor Piston	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44121-0T000	Piston-Cylinder	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44121-0T001	Piston-Cylinder	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44121-0T500	Piston-Cylinder	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44121-0T501	Piston-Cylinder	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44122-0T000	Piston-Cylinder	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44122-0T001	Piston-Cylinder	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44122-0T500	Piston-Cylinder	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44122-0T501	Piston-Cylinder	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44128-0T000	Screw-Bleeder	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44133-0T000	Spacer-Adjusting	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44133-0T001	Spacer-Adjusting	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44135-0T000	Ring-Retainer	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44139-0T000	Washer	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44139-0T001	Washer	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44148-0T000	Plate-Lock	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44202-0T000	Screw-Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44202-0T001	Screw-Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44203-0T000	Screw-Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44203-0T001	Screw-Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44204-0T000	Adjuster-Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44204-0T001	Adjuster-Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44205-0T000	Adjuster-Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44205-0T001	Adjuster-Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44210-0T000	Lever Assy-Adjuster, Rh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44211-0T000	Lever Assy-Adjuster, Lh	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
44214-0T000	Spring-Adjusting, Front Brake	Rear brake (1993-10-01 ~ ; 9(L.ST+LF.HWT+H.ST+H.WT+HS.WT+HK.WT).(BD30+ED35+FD42+FD46))
