Search › Model › H41

H41

Nissan ATLAS-CONDOR · 1991 · 2,256 parts · 205 categories

← Back to categories

2,256 items

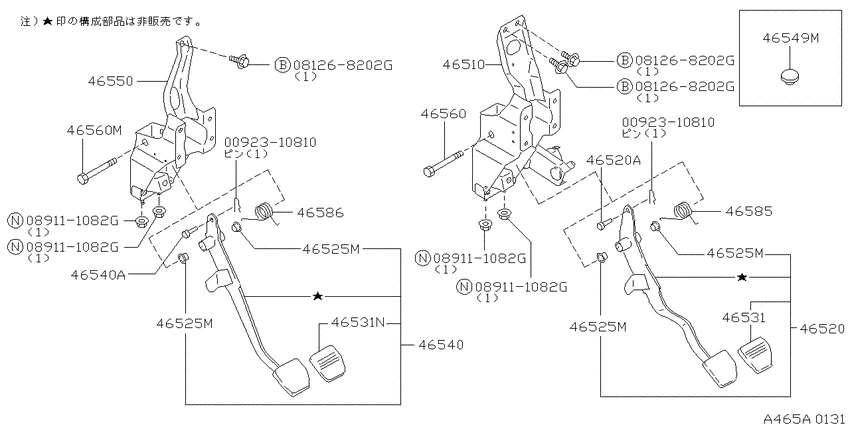

Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46) 12

#	OEM	Part name
46510	46510-0T003	Bracket Assy-Pedal
46510	46510-0T004	Bracket Assy-Pedal
46520	46520-0T000	Pedal Assy-Brake
46520	46123-H8500	Pin-Clevis
46520	46123-H850A	Pin-Clevis
46540	46540-0T001	Pedal Assy-Clutch
46549	46549-T8000	Rubber-Clutch Pedal
46550	46550-0T003	Bracket Assy-Clutch Pedal
46550	46550-0T005	Bracket Assy-Clutch Pedal
46585	46585-51E05	SPRING-RETURN
46586	46585-0T000	Spring-Return
92310810	00923-10810	PIN-SNAP

OEM	Part name	Category
00923-10810	PIN-SNAP	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46123-H8500	Pin-Clevis	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46123-H850A	Pin-Clevis	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46510-0T003	Bracket Assy-Pedal	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46510-0T004	Bracket Assy-Pedal	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46520-0T000	Pedal Assy-Brake	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46540-0T001	Pedal Assy-Clutch	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46549-T8000	Rubber-Clutch Pedal	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46550-0T003	Bracket Assy-Clutch Pedal	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46550-0T005	Bracket Assy-Clutch Pedal	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46585-0T000	Spring-Return	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)
46585-51E05	SPRING-RETURN	Brake & clutch pedal (1993-10-01 ~ ; BD30 +ED35 +FD42.MT +FD46)

Source: Public OEM parts-catalog data
Variants: 2 / 290
Category: 205
Collected: 2026-07-26
