| 08911-14210 |
ナツト,ヘクサゴン |

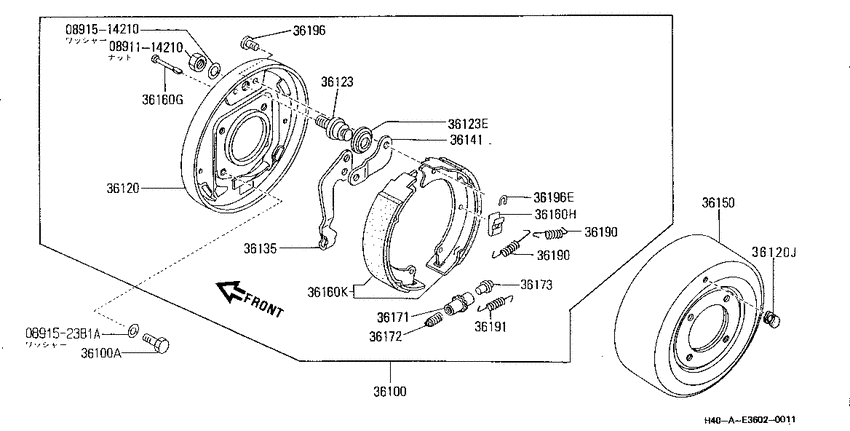

center brake (1990-06-01 ~ ; NA20S+ED35) |
| 08915-14210 |
WASHER-LOCK |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 27319-4401P |
Spring-Adjust |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36100-50T10 |
Brake Assy-Center |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36100-T8002 |
Brake Assy-Center |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36100-T8003 |
Brake Assy-Center |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36107-82600 |
Bolt |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36120-T8001 |
Plate Assy-Back, Center Brake |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36120-T8002 |
Plate Assy-Back, Center Brake |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36123-T8000 |
Pin-Anchor |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36132-82600 |
Plate-Shoe Guide |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36135-T8000 |
Lever-Brake |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36141-T8000 |
Strut-Cross |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36160-50T25 |
Shoe Set-Center Brake |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36160-T1025 |
Shoe Set-Center Brake |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36171-82600 |
Nut-Adjust |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36172-82600 |
Screw-Adjust |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36173-82600 |
Sleeve-Adjust |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36190-82600 |
Spring-Shoe Return |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36194-82600 |
Plug-Adjust Hole |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36194-T8000 |
Plug-Adjust Hole |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36196-82600 |
Pin-Shoe |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 36196-T8000 |
Pin-Shoe |
center brake (1990-06-01 ~ ; NA20S+ED35) |
| 44222-M4900 |
Ring-Retaining |
center brake (1990-06-01 ~ ; NA20S+ED35) |
