Search › Model › H40

H40

Nissan ATLAS-CONDOR · 1981 · 3,954 parts · 195 categories

3,954 items

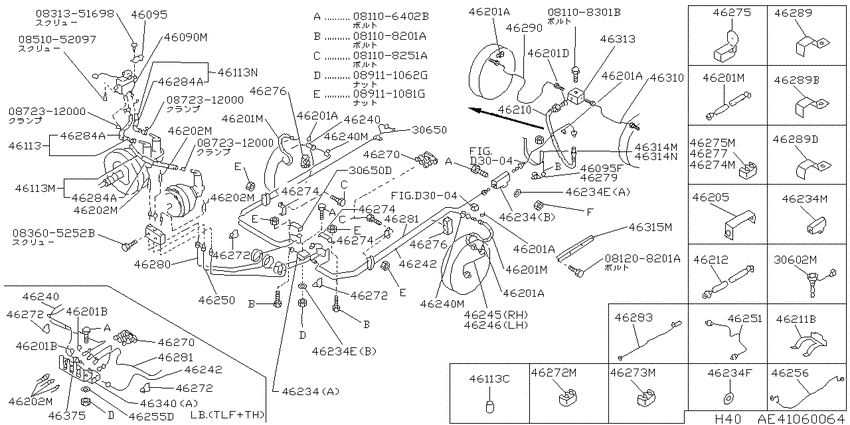

Brake piping & control (1986-11-01 ~ ; LB) 100

#	OEM	Part name
30602	46020-01T00	Cap Assy-Oil Reservoir
30650	30651-T8000	Tube Assy-Clutch
30650	30651-T8011	Tube Assy-Clutch
30650	30651-T9000	Tube Assy-Clutch
30650	30651-T9013	Tube Assy-Clutch
30650	30850-01T03	Tube Assy-Clutch
30650	30850-05T00	Tube Assy-Clutch
30650	30850-05T01	Tube Assy-Clutch
30650	46289-01T01	Clip-Tube, Clutch
30650	46289-89976	Clamp
46090	46090-T8000	Tank-Oil Reservoir
46090	46090-T8001	Tank-Oil Reservoir
46095	46095-T8001	Bracket-Reservoir Tank
46095	46289-T8006	Clamp-Reservoir Tank
46113	46113-T8001	Hose-Reservoir Brake
46113	46113-T3003	Hose-Reservoir Brake
46113	46113-T8002	Hose-Reservoir Brake
46201	46204-89922	Hose Assy-Brake, Front
46201	46204-89946	Hose Assy-Brake, Front
46201	46214-01A22	Hose Assy-Brake, Front
46202	46202-89940	Hose Assy-Brake, Center
46202	46212-01A40	Hose Assy-Brake, Center
46205	17572-T8004	Bracket-Front Brake Hose
46210	46201-89946	Hose Assy-Brake, Rear
46234	02462-34000	CONNECTOR-BRAKE TUBE
46234	02463-13200	CONNECTOR-BRAKE TUBE
46234	46250-01T01	Connector
46234	46250-02T00	Connector
46234	46321-T8004	Connector
46234	46364-T8000	Connector-Brake Tube
46234	43174-6401P	Spacer-Connector
46234	46347-J5100	Spacer-Connector
46234	46366-05T00	Spacer-Connector
46234	46366-T8000	Spacer-Connector
46240	46240-01T00	Tube Assy-Brake, Front Rh
46240	46323-T8002	Tube Assy-Brake, Front Rh
46240	46323-T8004	Tube Assy-Brake, Front Rh
46240	24091-82100	Grommet-Fuel Hose
46242	46242-01T00	Tube Assy-Brake, Front Lh
46242	46324-T8001	Tube Assy-Brake, Front Lh
46242	46324-T8002	Tube Assy-Brake, Front Lh
46245	46256-T8100	Tube Assy-Front Brake, Rh
46246	46257-T8000	Tube Assy-Front Brake, Lh
46246	46257-T8100	Tube Assy-Front Brake, Lh
46250	46250-01T03	Tube Assy-Brake, Front Master Cylinder
46250	46250-02T02	Tube Assy-Brake, Front Master Cylinder
46250	46321-T8000	Tube Assy-Brake, Front Master Cylinder
46250	46321-T8001	Tube Assy-Brake, Front Master Cylinder
46250	46321-T8006	Tube Assy-Brake, Front Master Cylinder
46250	46322-T8003	Tube Assy-Brake, Front Master Cylinder
46251	46250-50T01	Tube Assy-Brake, Front
46256	46285-05T01	Tube Assy-Brake, Rear
46270	46341-R8000	Grommet
46272	46289-01T00	Clamp
46272	46289-89972	Clip
46272	46283-89919	Insulator
46272	46297-J2000	Clip-Tube, Brake
46274	46289-J2000	Clip-Tube, Brake
46274	46283-89918	Insulator
46274	46283-89938	Insulator
46274	46297-T8008	Clip-Tube, Brake
46275	46289-89954	Clip-Tube, Brake
46275	46283-89952	Insulator-Fuel Tube
46276	46283-89904	Insulator-Fuel Tube
46279	46289-T8004	Clamp
46280	46280-01T02	Tube Assy-Brake, Rear Master
46280	46280-02T02	Tube Assy-Brake, Rear Master
46280	46331-T8000	Tube Assy-Brake, Rear Master
46280	46331-T8002	Tube Assy-Brake, Rear Master
46281	46285-01T01	Tube Assy-Brake, Rear
46281	46285-01T03	Tube Assy-Brake, Rear
46281	46332-T8002	Tube Assy-Brake, Rear
46281	46332-T8004	Tube Assy-Brake, Rear
46281	46332-T9001	Tube Assy-Brake, Rear
46284	46114-T8002	Protector
46289	46289-J5120	Clip-Vacuum Hose
46289	01551-10084	CLIP
46289	46289-89914	Clamp
46289	21383-Z5001	Clamp-Hose
46289	22316-T8000	Clamp-Hose
46290	46290-02T15	Tube Assy-Rear Brake, Rh
46290	46290-T9400	Tube Assy-Rear Brake, Rh
46310	46310-02T15	Tube Assy-Rear Brake, Lh
46310	46310-T9400	Tube Assy-Rear Brake, Lh
46314	46314-T8000	Protector
46314	46314-T9000	Protector
46314	46314-T9400	Protector
46315	46315-T9000	Support-Protector
46315	46370-04T00	Support-Protector
46340	46341-T8000	Connector Assy-6 Way
46340	46341-T8001	Connector Assy-6 Way
46340	46364-01T00	Connector-Brake Tube
46375	46344-T9000	Bracket-Brake Tube
81106402	08110-6402B	Bolt-hexagon
81108201	08110-8201A	Bolt-hexagon
81108251	08110-8251A	Bolt-hexagon
83605252	08360-5252B	スクリユ-,マシン
831351698	08313-51698	スクリユ-,マシン
851052097	08510-52097	スクリユ-,タツピング
872312000	08723-12000	CLAMP

OEM	Part name	Category
01551-10084	CLIP	Brake piping & control (1986-11-01 ~ ; LB)
02462-34000	CONNECTOR-BRAKE TUBE	Brake piping & control (1986-11-01 ~ ; LB)
02463-13200	CONNECTOR-BRAKE TUBE	Brake piping & control (1986-11-01 ~ ; LB)
08110-6402B	Bolt-hexagon	Brake piping & control (1986-11-01 ~ ; LB)
08110-8201A	Bolt-hexagon	Brake piping & control (1986-11-01 ~ ; LB)
08110-8251A	Bolt-hexagon	Brake piping & control (1986-11-01 ~ ; LB)
08313-51698	スクリユ-,マシン	Brake piping & control (1986-11-01 ~ ; LB)
08360-5252B	スクリユ-,マシン	Brake piping & control (1986-11-01 ~ ; LB)
08510-52097	スクリユ-,タツピング	Brake piping & control (1986-11-01 ~ ; LB)
08723-12000	CLAMP	Brake piping & control (1986-11-01 ~ ; LB)
17572-T8004	Bracket-Front Brake Hose	Brake piping & control (1986-11-01 ~ ; LB)
21383-Z5001	Clamp-Hose	Brake piping & control (1986-11-01 ~ ; LB)
22316-T8000	Clamp-Hose	Brake piping & control (1986-11-01 ~ ; LB)
24091-82100	Grommet-Fuel Hose	Brake piping & control (1986-11-01 ~ ; LB)
30651-T8000	Tube Assy-Clutch	Brake piping & control (1986-11-01 ~ ; LB)
30651-T8011	Tube Assy-Clutch	Brake piping & control (1986-11-01 ~ ; LB)
30651-T9000	Tube Assy-Clutch	Brake piping & control (1986-11-01 ~ ; LB)
30651-T9013	Tube Assy-Clutch	Brake piping & control (1986-11-01 ~ ; LB)
30850-01T03	Tube Assy-Clutch	Brake piping & control (1986-11-01 ~ ; LB)
30850-05T00	Tube Assy-Clutch	Brake piping & control (1986-11-01 ~ ; LB)
30850-05T01	Tube Assy-Clutch	Brake piping & control (1986-11-01 ~ ; LB)
43174-6401P	Spacer-Connector	Brake piping & control (1986-11-01 ~ ; LB)
46020-01T00	Cap Assy-Oil Reservoir	Brake piping & control (1986-11-01 ~ ; LB)
46090-T8000	Tank-Oil Reservoir	Brake piping & control (1986-11-01 ~ ; LB)
46090-T8001	Tank-Oil Reservoir	Brake piping & control (1986-11-01 ~ ; LB)
46095-T8001	Bracket-Reservoir Tank	Brake piping & control (1986-11-01 ~ ; LB)
46113-T3003	Hose-Reservoir Brake	Brake piping & control (1986-11-01 ~ ; LB)
46113-T8001	Hose-Reservoir Brake	Brake piping & control (1986-11-01 ~ ; LB)
46113-T8002	Hose-Reservoir Brake	Brake piping & control (1986-11-01 ~ ; LB)
46114-T8002	Protector	Brake piping & control (1986-11-01 ~ ; LB)
46201-89946	Hose Assy-Brake, Rear	Brake piping & control (1986-11-01 ~ ; LB)
46202-89940	Hose Assy-Brake, Center	Brake piping & control (1986-11-01 ~ ; LB)
46204-89922	Hose Assy-Brake, Front	Brake piping & control (1986-11-01 ~ ; LB)
46204-89946	Hose Assy-Brake, Front	Brake piping & control (1986-11-01 ~ ; LB)
46212-01A40	Hose Assy-Brake, Center	Brake piping & control (1986-11-01 ~ ; LB)
46214-01A22	Hose Assy-Brake, Front	Brake piping & control (1986-11-01 ~ ; LB)
46240-01T00	Tube Assy-Brake, Front Rh	Brake piping & control (1986-11-01 ~ ; LB)
46242-01T00	Tube Assy-Brake, Front Lh	Brake piping & control (1986-11-01 ~ ; LB)
46250-01T01	Connector	Brake piping & control (1986-11-01 ~ ; LB)
46250-01T03	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1986-11-01 ~ ; LB)
46250-02T00	Connector	Brake piping & control (1986-11-01 ~ ; LB)
46250-02T02	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1986-11-01 ~ ; LB)
46250-50T01	Tube Assy-Brake, Front	Brake piping & control (1986-11-01 ~ ; LB)
46256-T8100	Tube Assy-Front Brake, Rh	Brake piping & control (1986-11-01 ~ ; LB)
46257-T8000	Tube Assy-Front Brake, Lh	Brake piping & control (1986-11-01 ~ ; LB)
46257-T8100	Tube Assy-Front Brake, Lh	Brake piping & control (1986-11-01 ~ ; LB)
46280-01T02	Tube Assy-Brake, Rear Master	Brake piping & control (1986-11-01 ~ ; LB)
46280-02T02	Tube Assy-Brake, Rear Master	Brake piping & control (1986-11-01 ~ ; LB)
46283-89904	Insulator-Fuel Tube	Brake piping & control (1986-11-01 ~ ; LB)
46283-89918	Insulator	Brake piping & control (1986-11-01 ~ ; LB)
46283-89919	Insulator	Brake piping & control (1986-11-01 ~ ; LB)
46283-89938	Insulator	Brake piping & control (1986-11-01 ~ ; LB)
46283-89952	Insulator-Fuel Tube	Brake piping & control (1986-11-01 ~ ; LB)
46285-01T01	Tube Assy-Brake, Rear	Brake piping & control (1986-11-01 ~ ; LB)
46285-01T03	Tube Assy-Brake, Rear	Brake piping & control (1986-11-01 ~ ; LB)
46285-05T01	Tube Assy-Brake, Rear	Brake piping & control (1986-11-01 ~ ; LB)
46289-01T00	Clamp	Brake piping & control (1986-11-01 ~ ; LB)
46289-01T01	Clip-Tube, Clutch	Brake piping & control (1986-11-01 ~ ; LB)
46289-89914	Clamp	Brake piping & control (1986-11-01 ~ ; LB)
46289-89954	Clip-Tube, Brake	Brake piping & control (1986-11-01 ~ ; LB)
46289-89972	Clip	Brake piping & control (1986-11-01 ~ ; LB)
46289-89976	Clamp	Brake piping & control (1986-11-01 ~ ; LB)
46289-J2000	Clip-Tube, Brake	Brake piping & control (1986-11-01 ~ ; LB)
46289-J5120	Clip-Vacuum Hose	Brake piping & control (1986-11-01 ~ ; LB)
46289-T8004	Clamp	Brake piping & control (1986-11-01 ~ ; LB)
46289-T8006	Clamp-Reservoir Tank	Brake piping & control (1986-11-01 ~ ; LB)
46290-02T15	Tube Assy-Rear Brake, Rh	Brake piping & control (1986-11-01 ~ ; LB)
46290-T9400	Tube Assy-Rear Brake, Rh	Brake piping & control (1986-11-01 ~ ; LB)
46297-J2000	Clip-Tube, Brake	Brake piping & control (1986-11-01 ~ ; LB)
46297-T8008	Clip-Tube, Brake	Brake piping & control (1986-11-01 ~ ; LB)
46310-02T15	Tube Assy-Rear Brake, Lh	Brake piping & control (1986-11-01 ~ ; LB)
46310-T9400	Tube Assy-Rear Brake, Lh	Brake piping & control (1986-11-01 ~ ; LB)
46314-T8000	Protector	Brake piping & control (1986-11-01 ~ ; LB)
46314-T9000	Protector	Brake piping & control (1986-11-01 ~ ; LB)
46314-T9400	Protector	Brake piping & control (1986-11-01 ~ ; LB)
46315-T9000	Support-Protector	Brake piping & control (1986-11-01 ~ ; LB)
46321-T8000	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1986-11-01 ~ ; LB)
46321-T8001	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1986-11-01 ~ ; LB)
46321-T8004	Connector	Brake piping & control (1986-11-01 ~ ; LB)
46321-T8006	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1986-11-01 ~ ; LB)
46322-T8003	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1986-11-01 ~ ; LB)
46323-T8002	Tube Assy-Brake, Front Rh	Brake piping & control (1986-11-01 ~ ; LB)
46323-T8004	Tube Assy-Brake, Front Rh	Brake piping & control (1986-11-01 ~ ; LB)
46324-T8001	Tube Assy-Brake, Front Lh	Brake piping & control (1986-11-01 ~ ; LB)
46324-T8002	Tube Assy-Brake, Front Lh	Brake piping & control (1986-11-01 ~ ; LB)
46331-T8000	Tube Assy-Brake, Rear Master	Brake piping & control (1986-11-01 ~ ; LB)
46331-T8002	Tube Assy-Brake, Rear Master	Brake piping & control (1986-11-01 ~ ; LB)
46332-T8002	Tube Assy-Brake, Rear	Brake piping & control (1986-11-01 ~ ; LB)
46332-T8004	Tube Assy-Brake, Rear	Brake piping & control (1986-11-01 ~ ; LB)
46332-T9001	Tube Assy-Brake, Rear	Brake piping & control (1986-11-01 ~ ; LB)
46341-R8000	Grommet	Brake piping & control (1986-11-01 ~ ; LB)
46341-T8000	Connector Assy-6 Way	Brake piping & control (1986-11-01 ~ ; LB)
46341-T8001	Connector Assy-6 Way	Brake piping & control (1986-11-01 ~ ; LB)
46344-T9000	Bracket-Brake Tube	Brake piping & control (1986-11-01 ~ ; LB)
46347-J5100	Spacer-Connector	Brake piping & control (1986-11-01 ~ ; LB)
46364-01T00	Connector-Brake Tube	Brake piping & control (1986-11-01 ~ ; LB)
46364-T8000	Connector-Brake Tube	Brake piping & control (1986-11-01 ~ ; LB)
46366-05T00	Spacer-Connector	Brake piping & control (1986-11-01 ~ ; LB)
46366-T8000	Spacer-Connector	Brake piping & control (1986-11-01 ~ ; LB)
46370-04T00	Support-Protector	Brake piping & control (1986-11-01 ~ ; LB)

Source: Public OEM parts-catalog data
Variants: 2 / 202
Category: 195
Collected: 2026-07-26
