H36A

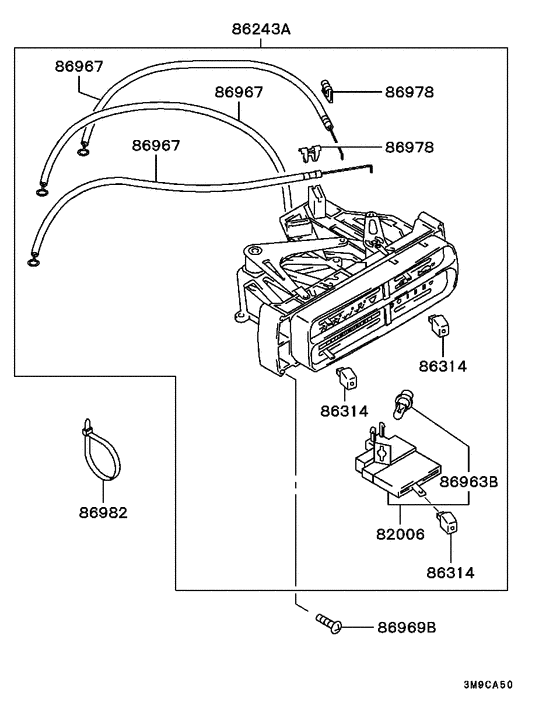

Heater control (STD TYPE) 11
| # | OEM | Part name |
|---|---|---|
| 82006 | MB938756 | SWITCH, HEATER BLOWER |
| 86243 | MR315038 | CONTROLLER ASSY, HEATER - Black |
| 86314 | MB938752 | KNOB, HEATER CONTROL LEVER |
| 86963 | MB938758 | BULB, HEATER CONTROL EQUIP |
| 86967 | MB938754 | WIRE, HEATER CONTROL EQUIP - Outside-inside,605 |
| 86967 | MB938755 | WIRE, HEATER CONTROL EQUIP - Temp,364 |
| 86967 | MR315043 | WIRE, HEATER CONTROL EQUIP - Mode,332 |
| 86967 | MR315044 | WIRE, HEATER CONTROL EQUIP - Temp,405 |
| 86969 | MB409437 | SCREW, STEERING COLUMN COVER - Tapping,5x12 |
| 86978 | MB298639 | CLIP, FR CTR VENTILATION - 5.2 |
| 86982 | MB249340 | BAND, FUEL TANK PROTECTOR - L=219.5 |
| OEM | Part name | Category |
|---|---|---|
| MB249340 | BAND, FUEL TANK PROTECTOR - L=219.5 | Heater control (STD TYPE) |
| MB298639 | CLIP, FR CTR VENTILATION - 5.2 | Heater control (STD TYPE) |
| MB409437 | SCREW, STEERING COLUMN COVER - Tapping,5x12 | Heater control (STD TYPE) |
| MB938752 | KNOB, HEATER CONTROL LEVER | Heater control (STD TYPE) |
| MB938754 | WIRE, HEATER CONTROL EQUIP - Outside-inside,605 | Heater control (STD TYPE) |
| MB938755 | WIRE, HEATER CONTROL EQUIP - Temp,364 | Heater control (STD TYPE) |
| MB938756 | SWITCH, HEATER BLOWER | Heater control (STD TYPE) |
| MB938758 | BULB, HEATER CONTROL EQUIP | Heater control (STD TYPE) |
| MR315038 | CONTROLLER ASSY, HEATER - Black | Heater control (STD TYPE) |
| MR315043 | WIRE, HEATER CONTROL EQUIP - Mode,332 | Heater control (STD TYPE) |
| MR315044 | WIRE, HEATER CONTROL EQUIP - Temp,405 | Heater control (STD TYPE) |
