Search › Model › H32A
H32A

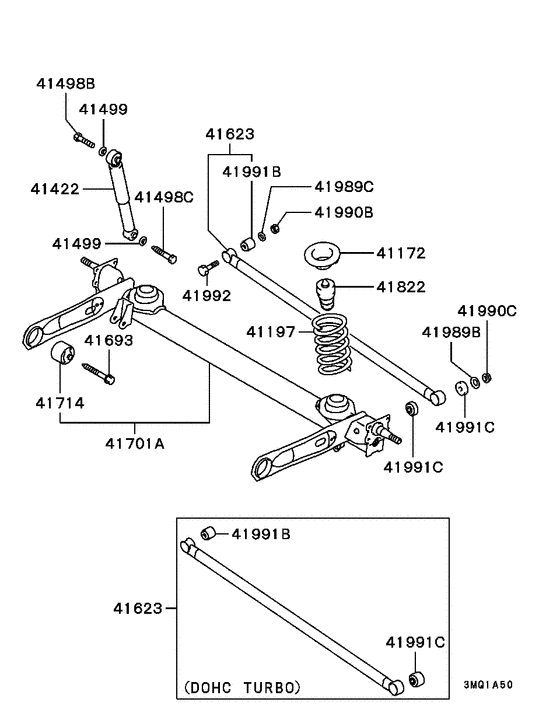

Rear susp (ALL) 18
| # | OEM | Part name |
|---|---|---|
| 41172 | MB242736 | SHEET, RR SUSP SPRING, UPR |
| 41197 | MB584246 | SPRING, RR SUSP COIL |
| 41422 | MB809537 | SHOCK ABSORBER, RR SUSP |
| 41498 | MU100006 | BOLT, RR SHOCK ABSORBER - 12x55 |
| 41499 | MS450044 | WASHER, ENG RR MOUNTING - Spring,12 |
| 41623 | MB584253 | ROD, RR SUSP LATERAL |
| 41693 | MB515759 | BOLT, RR SUSP TORSION AXLE - Flange,12x77 |
| 41701 | MB584242 | AXLE & ARM ASSY, RR SUSP TORSION |
| 41714 | MB584236 | BUSHING, RR SUSP TORSION AXLE |
| 41822 | MB584232 | STOPPER, RR SUSP LWR ARM BUMP |
| 41989 | MB631400 | WASHER, RR SWAY BAR - Eye,11 |
| 41989 | MT100389 | WASHER, RR SHOCK ABSORBER - Eye,11 |
| 41989 | MF450407 | WASHER - Spring,12 |
| 41990 | MF430123 | NUT, ENG RR MOUNTING - 12 |
| 41990 | MB631398 | NUT, RR SWAY BAR - Self locking,10 |
| 41991 | MT190817 | BUSHING, RR SWAY BAR |
| 41991 | MB631730 | BUSHING, RR SWAY BAR |
| 41992 | MT190849 | BOLT, RR SWAY BAR - Special,12x52 |
| OEM | Part name | Category |
|---|---|---|
| MB242736 | SHEET, RR SUSP SPRING, UPR | Rear susp (ALL) |
| MB515759 | BOLT, RR SUSP TORSION AXLE - Flange,12x77 | Rear susp (ALL) |
| MB584232 | STOPPER, RR SUSP LWR ARM BUMP | Rear susp (ALL) |
| MB584236 | BUSHING, RR SUSP TORSION AXLE | Rear susp (ALL) |
| MB584242 | AXLE & ARM ASSY, RR SUSP TORSION | Rear susp (ALL) |
| MB584246 | SPRING, RR SUSP COIL | Rear susp (ALL) |
| MB584253 | ROD, RR SUSP LATERAL | Rear susp (ALL) |
| MB631398 | NUT, RR SWAY BAR - Self locking,10 | Rear susp (ALL) |
| MB631400 | WASHER, RR SWAY BAR - Eye,11 | Rear susp (ALL) |
| MB631730 | BUSHING, RR SWAY BAR | Rear susp (ALL) |
| MB809537 | SHOCK ABSORBER, RR SUSP | Rear susp (ALL) |
| MF430123 | NUT, ENG RR MOUNTING - 12 | Rear susp (ALL) |
| MF450407 | WASHER - Spring,12 | Rear susp (ALL) |
| MS450044 | WASHER, ENG RR MOUNTING - Spring,12 | Rear susp (ALL) |
| MT100389 | WASHER, RR SHOCK ABSORBER - Eye,11 | Rear susp (ALL) |
| MT190817 | BUSHING, RR SWAY BAR | Rear susp (ALL) |
| MT190849 | BOLT, RR SWAY BAR - Special,12x52 | Rear susp (ALL) |
| MU100006 | BOLT, RR SHOCK ABSORBER - 12x55 | Rear susp (ALL) |
