Search › Model › H32A
H32A

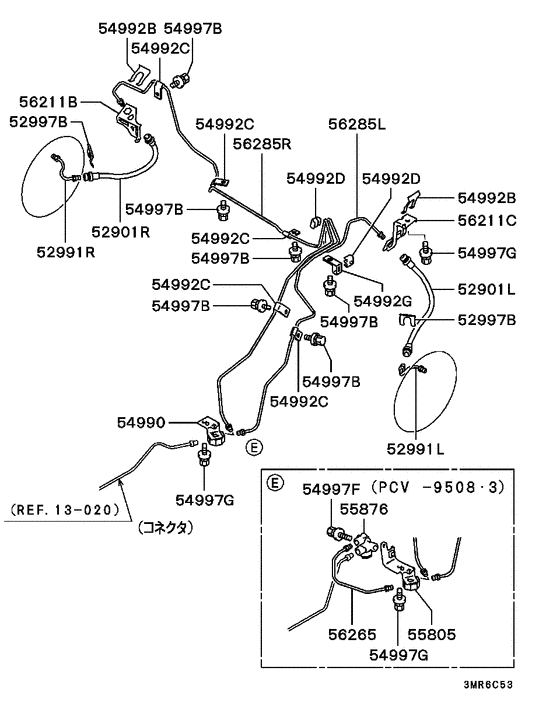

Brake line (REAR) 21
| # | OEM | Part name |
|---|---|---|
| 52901 | MB699983 | HOSE, RR BRAKE BODY SIDE - 330 |
| 52901 | MB699996 | HOSE, RR AXLE BRAKE TUBE - 330 |
| 52901 | MR129731 | HOSE, RR AXLE BRAKE TUBE - 330 |
| 52901 | MB699995 | HOSE, RR BRAKE BODY SIDE - 265 |
| 52901 | MR129730 | HOSE, RR BRAKE BODY SIDE - 265 |
| 52991 | MB587472 | TUBE, RR AXLE BRAKE, LH |
| 52991 | MB587473 | TUBE, RR AXLE BRAKE, RH |
| 52997 | MA431825 | CLIP, BRAKE FLUID LINE - 13 |
| 54990 | MB587464 | JOINT, BRAKE FLUID LINE |
| 54992 | MB277792 | CLIP, FRAME BRAKE FLUID LINE - 5 |
| 54992 | MB082164 | CLIP, FUEL RETURN LINE - 4.6 |
| 54992 | MB082162 | CLIP, FUEL LINE |
| 54997 | MS240121 | BOLT, CONNROD - Washer assembled,6x16 |
| 54997 | MF240061 | BOLT, THROTTLE BODY - Washer assembled,8x40 |
| 54997 | MF243651 | BOLT, ENG RR MOUNTING - Washer assembled,8x20 |
| 54997 | MF244251 | BOLT, BRAKE FLUID LINE - Washer assembled,8x20 |
| 55876 | MR205926 | VALVE, BRAKE FLUID PROPORTIONING |
| 56211 | MB500613 | BRACKET, BRAKE HOSE |
| 56211 | MB587466 | BRACKET, BRAKE HOSE |
| 56285 | MB587461 | TUBE, RR BRAKE, LH - 4.76 |
| 56285 | MB587462 | TUBE, RR BRAKE, RH - 4.76 |
| OEM | Part name | Category |
|---|---|---|
| MA431825 | CLIP, BRAKE FLUID LINE - 13 | Brake line (REAR) |
| MB082162 | CLIP, FUEL LINE | Brake line (REAR) |
| MB082164 | CLIP, FUEL RETURN LINE - 4.6 | Brake line (REAR) |
| MB277792 | CLIP, FRAME BRAKE FLUID LINE - 5 | Brake line (REAR) |
| MB500613 | BRACKET, BRAKE HOSE | Brake line (REAR) |
| MB587461 | TUBE, RR BRAKE, LH - 4.76 | Brake line (REAR) |
| MB587462 | TUBE, RR BRAKE, RH - 4.76 | Brake line (REAR) |
| MB587464 | JOINT, BRAKE FLUID LINE | Brake line (REAR) |
| MB587466 | BRACKET, BRAKE HOSE | Brake line (REAR) |
| MB587472 | TUBE, RR AXLE BRAKE, LH | Brake line (REAR) |
| MB587473 | TUBE, RR AXLE BRAKE, RH | Brake line (REAR) |
| MB699983 | HOSE, RR BRAKE BODY SIDE - 330 | Brake line (REAR) |
| MB699995 | HOSE, RR BRAKE BODY SIDE - 265 | Brake line (REAR) |
| MB699996 | HOSE, RR AXLE BRAKE TUBE - 330 | Brake line (REAR) |
| MF240061 | BOLT, THROTTLE BODY - Washer assembled,8x40 | Brake line (REAR) |
| MF243651 | BOLT, ENG RR MOUNTING - Washer assembled,8x20 | Brake line (REAR) |
| MF244251 | BOLT, BRAKE FLUID LINE - Washer assembled,8x20 | Brake line (REAR) |
| MR129730 | HOSE, RR BRAKE BODY SIDE - 265 | Brake line (REAR) |
| MR129731 | HOSE, RR AXLE BRAKE TUBE - 330 | Brake line (REAR) |
| MR205926 | VALVE, BRAKE FLUID PROPORTIONING | Brake line (REAR) |
| MS240121 | BOLT, CONNROD - Washer assembled,6x16 | Brake line (REAR) |
