Search › Model › H31A
H31A

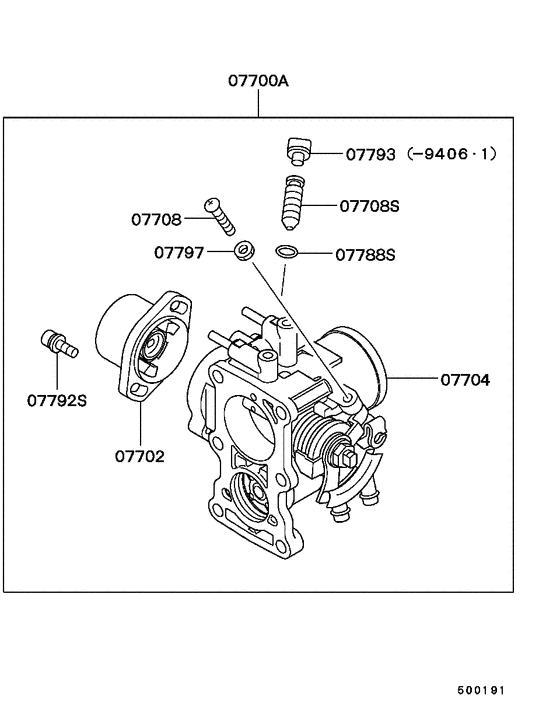

Injector & throttle body (-9508.3 (INNER PARTS)) 8
| # | OEM | Part name |
|---|---|---|
| 7700 | MD327855 | Throttle Body Assy - Ac38-010 |
| 7704 | MD614910 | BODY, THROTTLE BODY MIXING |
| 7708 | MD614304 | ADJUSTING SCREW, THROTTLE BODY SPEED |
| 7708 | MD614952 | ADJUSTING SCREW, THROTTLE BODY SPEED |
| 7788 | MD614950 | O-RING, THROTTLE BODY INR |
| 7793 | MD314467 | CAP, THROTTLE BODY |
| 7797 | MD614305 | NUT, THROTTLE BODY |
| 7797 | MF430004 | NUT, ENG OIL PAN - 6 |
| OEM | Part name | Category |
|---|---|---|
| MD314467 | CAP, THROTTLE BODY | Injector & throttle body (-9508.3 (INNER PARTS)) |
| MD327855 | Throttle Body Assy - Ac38-010 | Injector & throttle body (-9508.3 (INNER PARTS)) |
| MD614304 | ADJUSTING SCREW, THROTTLE BODY SPEED | Injector & throttle body (-9508.3 (INNER PARTS)) |
| MD614305 | NUT, THROTTLE BODY | Injector & throttle body (-9508.3 (INNER PARTS)) |
| MD614910 | BODY, THROTTLE BODY MIXING | Injector & throttle body (-9508.3 (INNER PARTS)) |
| MD614950 | O-RING, THROTTLE BODY INR | Injector & throttle body (-9508.3 (INNER PARTS)) |
| MD614952 | ADJUSTING SCREW, THROTTLE BODY SPEED | Injector & throttle body (-9508.3 (INNER PARTS)) |
| MF430004 | NUT, ENG OIL PAN - 6 | Injector & throttle body (-9508.3 (INNER PARTS)) |
