H27VW

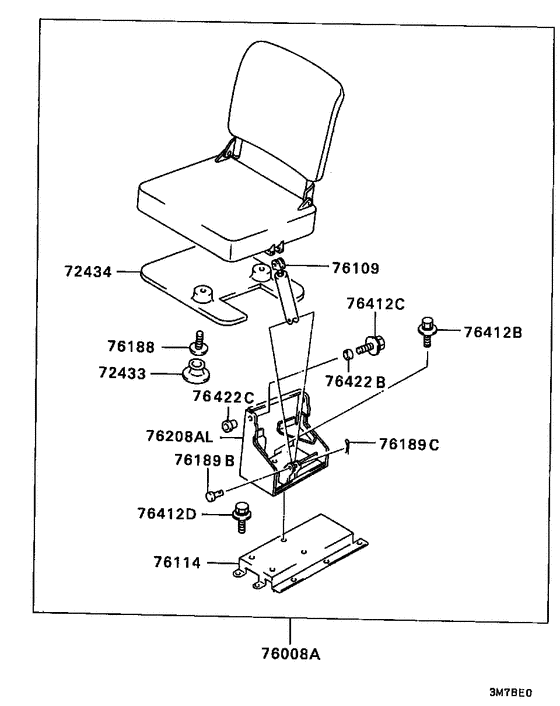

Rear seat (WALK THROUGH VAN) 14
| # | OEM | Part name |
|---|---|---|
| 72433 | MC319247 | CAP, JUMP SEAT CUSHION TRIM, LWR |
| 72434 | MC319246 | TRIM, JUMP SEAT CUSHION, LWR |
| 76008 | MB670946 | SEAT ASSY, RR JUMP |
| 76109 | MC319359 | TURNBUCKLE, JUMP SEAT |
| 76114 | MB800185 | BRACKET, RR JUMP SEAT |
| 76188 | MS450154 | SCREW, STEERING WHEEL - Tapping,4x16 |
| 76189 | MF472990 | PIN, FUEL TANK SUPPORT - Clevis,8x45 |
| 76189 | MF472302 | PIN, CARB - Snap,5x17.9 |
| 76208 | MC357505 | LEG ASSY, 2ND JUMP SEAT, RH |
| 76412 | MF243651 | BOLT, ENG RR MOUNTING - Washer assembled,8x20 |
| 76412 | MF243655 | BOLT, ROCKER COVER - Washer assembled,8x30 |
| 76412 | MF243624 | BOLT - Washer assembled,6x16 |
| 76422 | MB119485 | BUSHING, FR SEAT - 8x11.6 |
| 76422 | MC353825 | BUSHING, JUMP SEAT - 12 |
| OEM | Part name | Category |
|---|---|---|
| MB119485 | BUSHING, FR SEAT - 8x11.6 | Rear seat (WALK THROUGH VAN) |
| MB670946 | SEAT ASSY, RR JUMP | Rear seat (WALK THROUGH VAN) |
| MB800185 | BRACKET, RR JUMP SEAT | Rear seat (WALK THROUGH VAN) |
| MC319246 | TRIM, JUMP SEAT CUSHION, LWR | Rear seat (WALK THROUGH VAN) |
| MC319247 | CAP, JUMP SEAT CUSHION TRIM, LWR | Rear seat (WALK THROUGH VAN) |
| MC319359 | TURNBUCKLE, JUMP SEAT | Rear seat (WALK THROUGH VAN) |
| MC353825 | BUSHING, JUMP SEAT - 12 | Rear seat (WALK THROUGH VAN) |
| MC357505 | LEG ASSY, 2ND JUMP SEAT, RH | Rear seat (WALK THROUGH VAN) |
| MF243624 | BOLT - Washer assembled,6x16 | Rear seat (WALK THROUGH VAN) |
| MF243651 | BOLT, ENG RR MOUNTING - Washer assembled,8x20 | Rear seat (WALK THROUGH VAN) |
| MF243655 | BOLT, ROCKER COVER - Washer assembled,8x30 | Rear seat (WALK THROUGH VAN) |
| MF472302 | PIN, CARB - Snap,5x17.9 | Rear seat (WALK THROUGH VAN) |
| MF472990 | PIN, FUEL TANK SUPPORT - Clevis,8x45 | Rear seat (WALK THROUGH VAN) |
| MS450154 | SCREW, STEERING WHEEL - Tapping,4x16 | Rear seat (WALK THROUGH VAN) |
