Search › Model › H27VW
H27VW

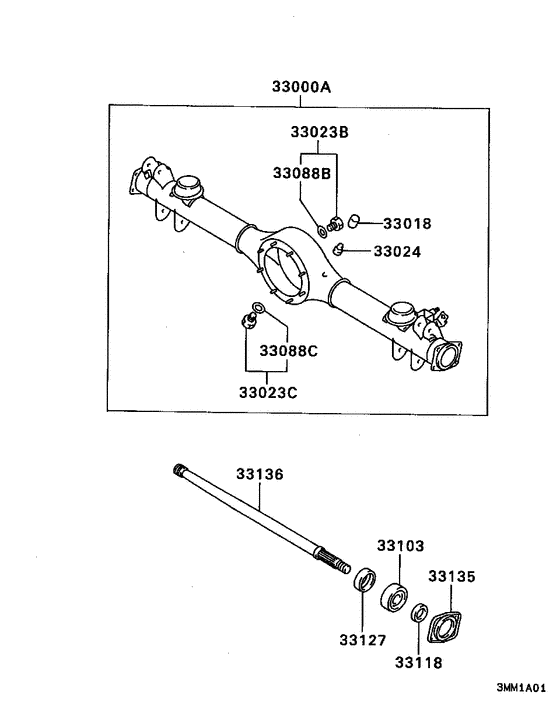

Rear axle housing & shaft 11
| # | OEM | Part name |
|---|---|---|
| 33000 | MB698838 | HOUSING ASSY, RR AXLE |
| 33023 | MB001261 | PLUG KIT, FR AXLE HOUSING |
| 33023 | MB001265 | PLUG KIT, RR AXLE HOUSING |
| 33024 | MA431409 | PLUG, FR AXLE HOUSING - Vent,16 |
| 33088 | MF660066 | GASKET, PLUG - D=16 |
| 33088 | MB001294 | Gasket, Drain Plug - D=18.2 |
| 33103 | MB569269 | BEARING, RR AXLE SHAFT - Ball,58x16-28 |
| 33118 | MT191617 | COLLAR, RR AXLE SHAFT |
| 33127 | MV026391 | OIL SEAL, RR AXLE SHAFT |
| 33135 | MB393349 | RETAINER, RR AXLE SHAFT BEARING, OTR |
| 33136 | MB569190 | SHAFT, RR AXLE |
| OEM | Part name | Category |
|---|---|---|
| MA431409 | PLUG, FR AXLE HOUSING - Vent,16 | Rear axle housing & shaft |
| MB001261 | PLUG KIT, FR AXLE HOUSING | Rear axle housing & shaft |
| MB001265 | PLUG KIT, RR AXLE HOUSING | Rear axle housing & shaft |
| MB001294 | Gasket, Drain Plug - D=18.2 | Rear axle housing & shaft |
| MB393349 | RETAINER, RR AXLE SHAFT BEARING, OTR | Rear axle housing & shaft |
| MB569190 | SHAFT, RR AXLE | Rear axle housing & shaft |
| MB569269 | BEARING, RR AXLE SHAFT - Ball,58x16-28 | Rear axle housing & shaft |
| MB698838 | HOUSING ASSY, RR AXLE | Rear axle housing & shaft |
| MF660066 | GASKET, PLUG - D=16 | Rear axle housing & shaft |
| MT191617 | COLLAR, RR AXLE SHAFT | Rear axle housing & shaft |
| MV026391 | OIL SEAL, RR AXLE SHAFT | Rear axle housing & shaft |
