Search › Model › H27V

H27V

Mitsubishi MINICA · 1990 · 2,432 parts · 190 categories

2,432 items

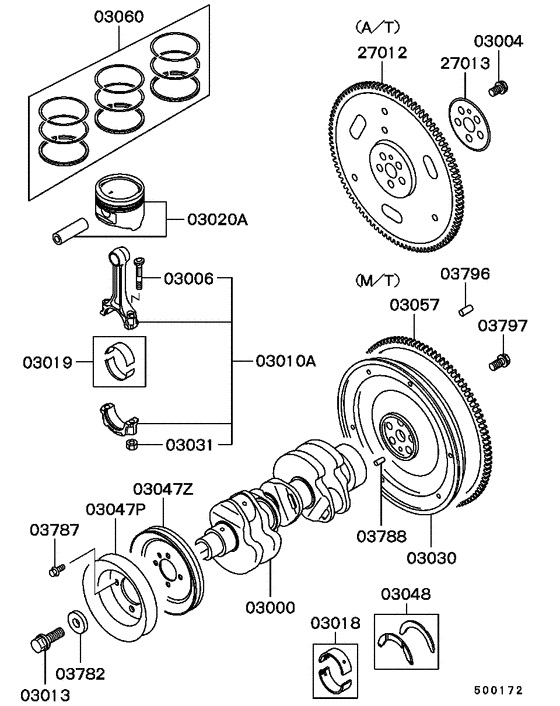

Piston & crankshaft (9308.1-) 46

#	OEM	Part name
3000	MD153330	CRANKSHAFT
3000	MD196005	CRANKSHAFT
3000	MD153332	CRANKSHAFT
3004	MD715097	BOLT, A/T DRIVE PLATE - Flange,10x15.5
3006	MD155277	BOLT, CONNROD
3006	MD179705	BOLT, CONNROD - 7x43.7
3010	MD153643	CONNECTING ROD ASSY
3010	MD195765	CONNECTING ROD ASSY
3013	MD114931	CENTER BOLT, CRANKSHAFT PULLEY - 12x32
3018	MD198949	BEARING, CRANKSHAFT - Plain,std 1
3018	MD315909	BEARING, CRANKSHAFT (BROWN) - Plain,std 1
3018	MD198950	BEARING, CRANKSHAFT - Plain,std 2
3018	MD198951	BEARING, CRANKSHAFT - Plain,std 3
3018	MD198952	BEARING, CRANKSHAFT - Plain,std 4
3018	MD198953	BEARING, CRANKSHAFT - Plain,std 5
3019	MD198955	BEARING, CONNROD - Plain,std 1
3019	MD315937	BEARING, CONNROD (BROWN) - Plain,std 1
3019	MD198956	BEARING, CONNROD - Plain,std 2
3019	MD198957	BEARING, CONNROD - Plain,std 3
3020	MD157050	PISTON & PIN ASSY - Std a
3020	MD157051	PISTON & PIN ASSY - Std b
3020	MD157052	PISTON & PIN ASSY - Std c
3020	MD160056	PISTON & PIN ASSY - O/size 0.25
3020	MD160057	PISTON & PIN ASSY - O/size 0.50
3020	MD160058	PISTON & PIN ASSY - O/size 0.75
3020	MD160059	PISTON & PIN ASSY - O/size 1.00
3030	MD113136	FLYWHEEL
3031	MD066045	NUT, CONNROD - Jam,7
3031	MD195747	NUT, CONNROD - 7
3047	MB657792	PULLEY, CRANKSHAFT - V-ditch
3047	MD127709	PULLEY, CRANKSHAFT - V-ditch
3048	MD198954	THRUST BEARING SET, CRANKSHAFT - Plain
3057	MD101846	RING GEAR, FLYWHEEL - N=97
3060	MD160195	RING SET, PISTON (STD)
3060	MD160196	RING SET, PISTON - O/size 0.25
3060	MD160197	RING SET, PISTON - O/size 0.50
3060	MD160198	RING SET, PISTON - O/size 0.75
3060	MD160199	RING SET, PISTON - O/size 1.00
3782	MD016641	WASHER, CRANKSHAFT PULLEY - Plain,12.5
3787	MD093792	BOLT, CRANKSHAFT PULLEY - Flange,6x16
3787	MF140405	BOLT, CRANKSHAFT PULLEY - Flange,6x16
3788	MF472403	PIN, CYLINDER BLOCK - Dowel,6x14
3796	MF472404	PIN, CYLINDER BLOCK - Dowel,8x18
3797	MD091434	BOLT, FLYWHEEL - Flange,10x19.5
27012	MD726058	PLATE, A/T DRIVE
27013	MD721559	PLATE, A/T DRIVE PLATE ADAPTER

OEM	Part name	Category
MB657792	PULLEY, CRANKSHAFT - V-ditch	Piston & crankshaft (9308.1-)
MD016641	WASHER, CRANKSHAFT PULLEY - Plain,12.5	Piston & crankshaft (9308.1-)
MD066045	NUT, CONNROD - Jam,7	Piston & crankshaft (9308.1-)
MD091434	BOLT, FLYWHEEL - Flange,10x19.5	Piston & crankshaft (9308.1-)
MD093792	BOLT, CRANKSHAFT PULLEY - Flange,6x16	Piston & crankshaft (9308.1-)
MD101846	RING GEAR, FLYWHEEL - N=97	Piston & crankshaft (9308.1-)
MD113136	FLYWHEEL	Piston & crankshaft (9308.1-)
MD114931	CENTER BOLT, CRANKSHAFT PULLEY - 12x32	Piston & crankshaft (9308.1-)
MD127709	PULLEY, CRANKSHAFT - V-ditch	Piston & crankshaft (9308.1-)
MD153330	CRANKSHAFT	Piston & crankshaft (9308.1-)
MD153332	CRANKSHAFT	Piston & crankshaft (9308.1-)
MD153643	CONNECTING ROD ASSY	Piston & crankshaft (9308.1-)
MD155277	BOLT, CONNROD	Piston & crankshaft (9308.1-)
MD157050	PISTON & PIN ASSY - Std a	Piston & crankshaft (9308.1-)
MD157051	PISTON & PIN ASSY - Std b	Piston & crankshaft (9308.1-)
MD157052	PISTON & PIN ASSY - Std c	Piston & crankshaft (9308.1-)
MD160056	PISTON & PIN ASSY - O/size 0.25	Piston & crankshaft (9308.1-)
MD160057	PISTON & PIN ASSY - O/size 0.50	Piston & crankshaft (9308.1-)
MD160058	PISTON & PIN ASSY - O/size 0.75	Piston & crankshaft (9308.1-)
MD160059	PISTON & PIN ASSY - O/size 1.00	Piston & crankshaft (9308.1-)
MD160195	RING SET, PISTON (STD)	Piston & crankshaft (9308.1-)
MD160196	RING SET, PISTON - O/size 0.25	Piston & crankshaft (9308.1-)
MD160197	RING SET, PISTON - O/size 0.50	Piston & crankshaft (9308.1-)
MD160198	RING SET, PISTON - O/size 0.75	Piston & crankshaft (9308.1-)
MD160199	RING SET, PISTON - O/size 1.00	Piston & crankshaft (9308.1-)
MD179705	BOLT, CONNROD - 7x43.7	Piston & crankshaft (9308.1-)
MD195747	NUT, CONNROD - 7	Piston & crankshaft (9308.1-)
MD195765	CONNECTING ROD ASSY	Piston & crankshaft (9308.1-)
MD196005	CRANKSHAFT	Piston & crankshaft (9308.1-)
MD198949	BEARING, CRANKSHAFT - Plain,std 1	Piston & crankshaft (9308.1-)
MD198950	BEARING, CRANKSHAFT - Plain,std 2	Piston & crankshaft (9308.1-)
MD198951	BEARING, CRANKSHAFT - Plain,std 3	Piston & crankshaft (9308.1-)
MD198952	BEARING, CRANKSHAFT - Plain,std 4	Piston & crankshaft (9308.1-)
MD198953	BEARING, CRANKSHAFT - Plain,std 5	Piston & crankshaft (9308.1-)
MD198954	THRUST BEARING SET, CRANKSHAFT - Plain	Piston & crankshaft (9308.1-)
MD198955	BEARING, CONNROD - Plain,std 1	Piston & crankshaft (9308.1-)
MD198956	BEARING, CONNROD - Plain,std 2	Piston & crankshaft (9308.1-)
MD198957	BEARING, CONNROD - Plain,std 3	Piston & crankshaft (9308.1-)
MD315909	BEARING, CRANKSHAFT (BROWN) - Plain,std 1	Piston & crankshaft (9308.1-)
MD315937	BEARING, CONNROD (BROWN) - Plain,std 1	Piston & crankshaft (9308.1-)
MD715097	BOLT, A/T DRIVE PLATE - Flange,10x15.5	Piston & crankshaft (9308.1-)
MD721559	PLATE, A/T DRIVE PLATE ADAPTER	Piston & crankshaft (9308.1-)
MD726058	PLATE, A/T DRIVE	Piston & crankshaft (9308.1-)
MF140405	BOLT, CRANKSHAFT PULLEY - Flange,6x16	Piston & crankshaft (9308.1-)
MF472403	PIN, CYLINDER BLOCK - Dowel,6x14	Piston & crankshaft (9308.1-)
MF472404	PIN, CYLINDER BLOCK - Dowel,8x18	Piston & crankshaft (9308.1-)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 190
Collected: 2026-07-25
