Search › Model › H22V
H22V

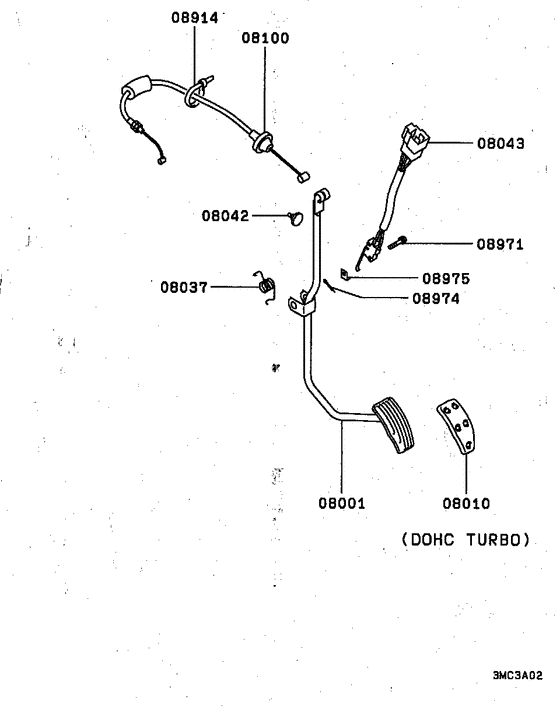

Engine control 9
| # | OEM | Part name |
|---|---|---|
| 8001 | MB539405 | ARM, ACCEL PEDAL |
| 8037 | MB539567 | SPRING, ACCEL PEDAL ARM RETURN |
| 8042 | MB134911 | STOPPER, BRAKE PEDAL |
| 8042 | MA306227 | STOPPER, ACCEL PEDAL ARM |
| 8043 | MB657793 | SWITCH, ACCEL PEDAL |
| 8100 | MB539358 | CABLE, ACCEL |
| 8971 | MF350006 | SCREW, ACCEL CONTROL EQUIP - Washer assembled,3x16 |
| 8974 | MF472036 | PIN, FUEL TANK SUPPORT - Split,2x15 |
| 8975 | MB322218 | NUT, ACCEL CONTROL EQUIP |
| OEM | Part name | Category |
|---|---|---|
| MA306227 | STOPPER, ACCEL PEDAL ARM | Engine control |
| MB134911 | STOPPER, BRAKE PEDAL | Engine control |
| MB322218 | NUT, ACCEL CONTROL EQUIP | Engine control |
| MB539358 | CABLE, ACCEL | Engine control |
| MB539405 | ARM, ACCEL PEDAL | Engine control |
| MB539567 | SPRING, ACCEL PEDAL ARM RETURN | Engine control |
| MB657793 | SWITCH, ACCEL PEDAL | Engine control |
| MF350006 | SCREW, ACCEL CONTROL EQUIP - Washer assembled,3x16 | Engine control |
| MF472036 | PIN, FUEL TANK SUPPORT - Split,2x15 | Engine control |
