Search › Model › H22A
H22A

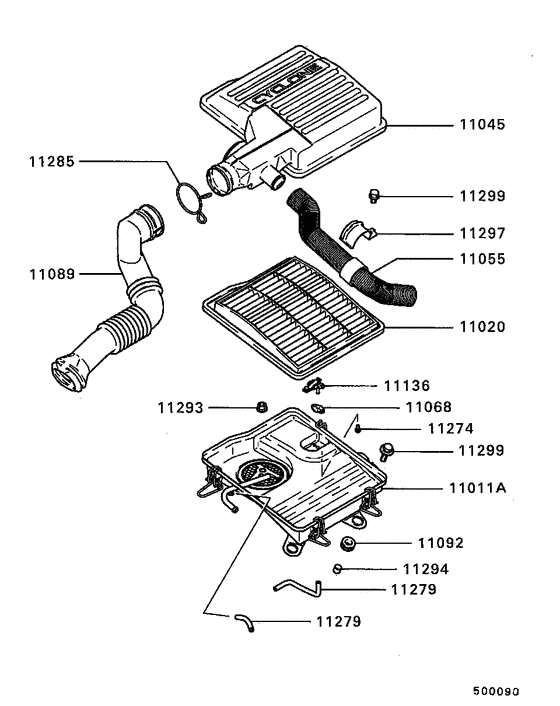

Air cleaner (DOHC..CARBURETOR) 15
| # | OEM | Part name |
|---|---|---|
| 11011 | MD620545 | BODY ASSY, AIR CLEANER |
| 11020 | MD620526 | ELEMENT, AIR CLEANER |
| 11045 | MD620616 | COVER, AIR CLEANER |
| 11055 | MD178258 | HEAT DUCT, AIR CLEANER - 30x365 |
| 11089 | MD152283 | DUCT, AIR CLEANER INTAKE |
| 11092 | MD040886 | INSULATOR, AIR CLEANER SUPPORT |
| 11136 | MD620243 | SENSOR, AIR CLEANER AIR TEMPERATURE |
| 11274 | MF350024 | SCREW, FUEL TANK - Washer assembled,4x10 |
| 11279 | MS632592 | HOSE, EMISSION VACUUM CONTROL EQUIP - 3x2000 |
| 11285 | MD156862 | CLIP, AIR CLEANER - 52 |
| 11293 | MF434104 | NUT, ROCKER COVER - Flange,8 |
| 11294 | MT206583 | COLLAR, AIR CLEANER |
| 11297 | MD151618 | CLAMP, AIR CLEANER |
| 11299 | MF140021 | BOLT, ACCEL CABLE SUPPORT - Flange,8x12 |
| 11299 | MF247253 | BOLT, ENG OIL COOLER - Washer assembled,8x25 |
| OEM | Part name | Category |
|---|---|---|
| MD040886 | INSULATOR, AIR CLEANER SUPPORT | Air cleaner (DOHC..CARBURETOR) |
| MD151618 | CLAMP, AIR CLEANER | Air cleaner (DOHC..CARBURETOR) |
| MD152283 | DUCT, AIR CLEANER INTAKE | Air cleaner (DOHC..CARBURETOR) |
| MD156862 | CLIP, AIR CLEANER - 52 | Air cleaner (DOHC..CARBURETOR) |
| MD178258 | HEAT DUCT, AIR CLEANER - 30x365 | Air cleaner (DOHC..CARBURETOR) |
| MD620243 | SENSOR, AIR CLEANER AIR TEMPERATURE | Air cleaner (DOHC..CARBURETOR) |
| MD620526 | ELEMENT, AIR CLEANER | Air cleaner (DOHC..CARBURETOR) |
| MD620545 | BODY ASSY, AIR CLEANER | Air cleaner (DOHC..CARBURETOR) |
| MD620616 | COVER, AIR CLEANER | Air cleaner (DOHC..CARBURETOR) |
| MF140021 | BOLT, ACCEL CABLE SUPPORT - Flange,8x12 | Air cleaner (DOHC..CARBURETOR) |
| MF247253 | BOLT, ENG OIL COOLER - Washer assembled,8x25 | Air cleaner (DOHC..CARBURETOR) |
| MF350024 | SCREW, FUEL TANK - Washer assembled,4x10 | Air cleaner (DOHC..CARBURETOR) |
| MF434104 | NUT, ROCKER COVER - Flange,8 | Air cleaner (DOHC..CARBURETOR) |
| MS632592 | HOSE, EMISSION VACUUM CONTROL EQUIP - 3x2000 | Air cleaner (DOHC..CARBURETOR) |
| MT206583 | COLLAR, AIR CLEANER | Air cleaner (DOHC..CARBURETOR) |
