Search › Model › H21V
H21V

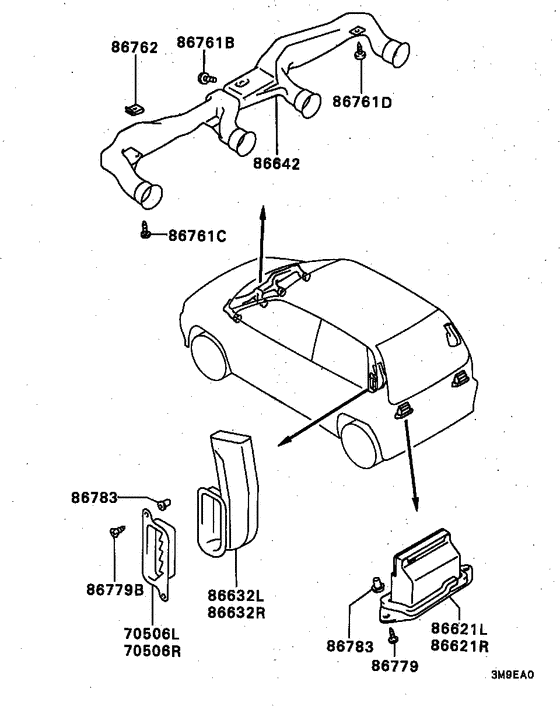

Ventilation & duct 9
| # | OEM | Part name |
|---|---|---|
| 86621 | MB568453 | DUCT, RR VENTILATOR, LH |
| 86621 | MB568454 | DUCT, RR VENTILATOR, RH |
| 86642 | MB568459 | DUCT, VENTILATOR AIR DISTRIBUTION |
| 86761 | MB409437 | SCREW, STEERING COLUMN COVER - Tapping,5x12 |
| 86761 | MF453031 | SCREW 5x12 - Tapping,5x12 |
| 86761 | MF453032 | SCREW, STEERING WHEEL - Tapping,5x14 |
| 86762 | MB135995 | NUT, FUEL FILLER LID LOCKING - Spring,5 |
| 86779 | MB067567 | SCREW, RR PILLAR TRIM - Tapping,5x12 |
| 86783 | MB174347 | GROMMET, FR END GARNISH - Screw,5 |
| OEM | Part name | Category |
|---|---|---|
| MB067567 | SCREW, RR PILLAR TRIM - Tapping,5x12 | Ventilation & duct |
| MB135995 | NUT, FUEL FILLER LID LOCKING - Spring,5 | Ventilation & duct |
| MB174347 | GROMMET, FR END GARNISH - Screw,5 | Ventilation & duct |
| MB409437 | SCREW, STEERING COLUMN COVER - Tapping,5x12 | Ventilation & duct |
| MB568453 | DUCT, RR VENTILATOR, LH | Ventilation & duct |
| MB568454 | DUCT, RR VENTILATOR, RH | Ventilation & duct |
| MB568459 | DUCT, VENTILATOR AIR DISTRIBUTION | Ventilation & duct |
| MF453031 | SCREW 5x12 - Tapping,5x12 | Ventilation & duct |
| MF453032 | SCREW, STEERING WHEEL - Tapping,5x14 | Ventilation & duct |
