Search › Model › H15V
H15V

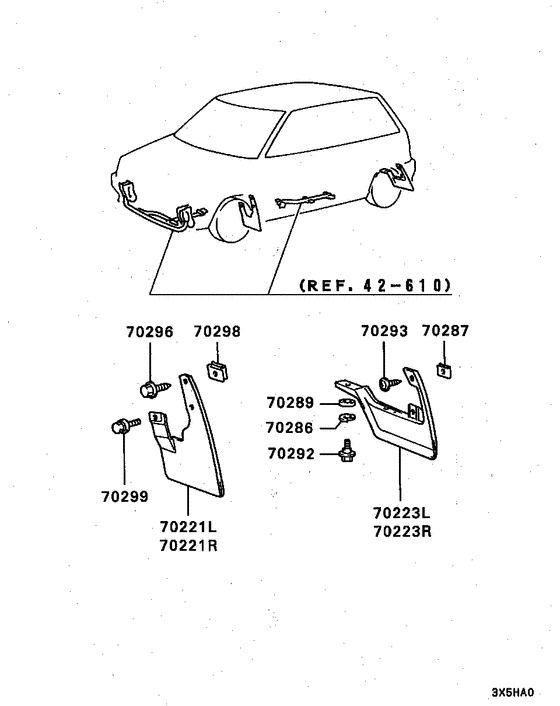

Mud guard,shield & stone guard 13
| # | OEM | Part name |
|---|---|---|
| 70221 | MB417881 | MUD GUARD, FR LH |
| 70221 | MB417882 | MUD GUARD, FR RH |
| 70223 | MB417883 | MUD GUARD, RR LH |
| 70223 | MB417884 | MUD GUARD, RR RH |
| 70286 | MF450006 | WASHER, CYLINDER HEAD - Plain,10 |
| 70287 | MU440003 | NUT, RR BUMPER - Spring 6 |
| 70287 | MU440009 | NUT, RR BUMPER - Spring,6 |
| 70289 | MB325168 | COLLAR, RR MUD GUARD |
| 70292 | MB369297 | BOLT, FR BUMPER - Flange,6x20 |
| 70293 | MS200322 | SCREW, RADIATOR GRILLE - Machine flange,6x16 |
| 70296 | MS452388 | SCREW, SPLASH SHIELD - Tapping washer assembled,6x25 |
| 70298 | MB138567 | GROMMET, SPLASH SHIELD - 6 |
| 70299 | MS240157 | BOLT, FR BUMPER - Washer assembled,6x25 |
| OEM | Part name | Category |
|---|---|---|
| MB138567 | GROMMET, SPLASH SHIELD - 6 | Mud guard,shield & stone guard |
| MB325168 | COLLAR, RR MUD GUARD | Mud guard,shield & stone guard |
| MB369297 | BOLT, FR BUMPER - Flange,6x20 | Mud guard,shield & stone guard |
| MB417881 | MUD GUARD, FR LH | Mud guard,shield & stone guard |
| MB417882 | MUD GUARD, FR RH | Mud guard,shield & stone guard |
| MB417883 | MUD GUARD, RR LH | Mud guard,shield & stone guard |
| MB417884 | MUD GUARD, RR RH | Mud guard,shield & stone guard |
| MF450006 | WASHER, CYLINDER HEAD - Plain,10 | Mud guard,shield & stone guard |
| MS200322 | SCREW, RADIATOR GRILLE - Machine flange,6x16 | Mud guard,shield & stone guard |
| MS240157 | BOLT, FR BUMPER - Washer assembled,6x25 | Mud guard,shield & stone guard |
| MS452388 | SCREW, SPLASH SHIELD - Tapping washer assembled,6x25 | Mud guard,shield & stone guard |
| MU440003 | NUT, RR BUMPER - Spring 6 | Mud guard,shield & stone guard |
| MU440009 | NUT, RR BUMPER - Spring,6 | Mud guard,shield & stone guard |
