Search › Model › H11A
H11A

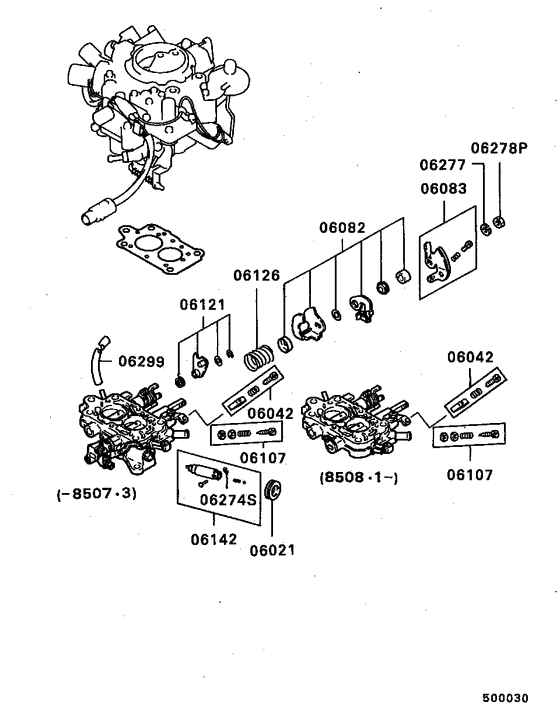

Carburetor (W/TURBO (INNER PARTS LOWER)) 10
| # | OEM | Part name |
|---|---|---|
| 6021 | MD606651 | CAP, CARB SUB EGR VALVE |
| 6082 | MD612030 | LEVER KIT, CARB THROTTLE CONTROL LINK |
| 6083 | MD612024 | LEVER KIT, CARB THROTTLE |
| 6107 | MD612051 | SCREW, CARB INR |
| 6121 | MD608417 | SPRING KIT, CARB SECONDARY THROTTLE |
| 6126 | MD608424 | SPRING, CARB THROTTLE RETURN |
| 6274 | MD606522 | SNAP RING, CARB INR |
| 6277 | MF450405 | WASHER, CYLINDER HEAD - Spring,8 |
| 6278 | MD600059 | NUT, CARB INR |
| 6299 | MD612052 | HOSE, CARB INR |
| OEM | Part name | Category |
|---|---|---|
| MD600059 | NUT, CARB INR | Carburetor (W/TURBO (INNER PARTS LOWER)) |
| MD606522 | SNAP RING, CARB INR | Carburetor (W/TURBO (INNER PARTS LOWER)) |
| MD606651 | CAP, CARB SUB EGR VALVE | Carburetor (W/TURBO (INNER PARTS LOWER)) |
| MD608417 | SPRING KIT, CARB SECONDARY THROTTLE | Carburetor (W/TURBO (INNER PARTS LOWER)) |
| MD608424 | SPRING, CARB THROTTLE RETURN | Carburetor (W/TURBO (INNER PARTS LOWER)) |
| MD612024 | LEVER KIT, CARB THROTTLE | Carburetor (W/TURBO (INNER PARTS LOWER)) |
| MD612030 | LEVER KIT, CARB THROTTLE CONTROL LINK | Carburetor (W/TURBO (INNER PARTS LOWER)) |
| MD612051 | SCREW, CARB INR | Carburetor (W/TURBO (INNER PARTS LOWER)) |
| MD612052 | HOSE, CARB INR | Carburetor (W/TURBO (INNER PARTS LOWER)) |
| MF450405 | WASHER, CYLINDER HEAD - Spring,8 | Carburetor (W/TURBO (INNER PARTS LOWER)) |
