Search › Model › H11A
H11A

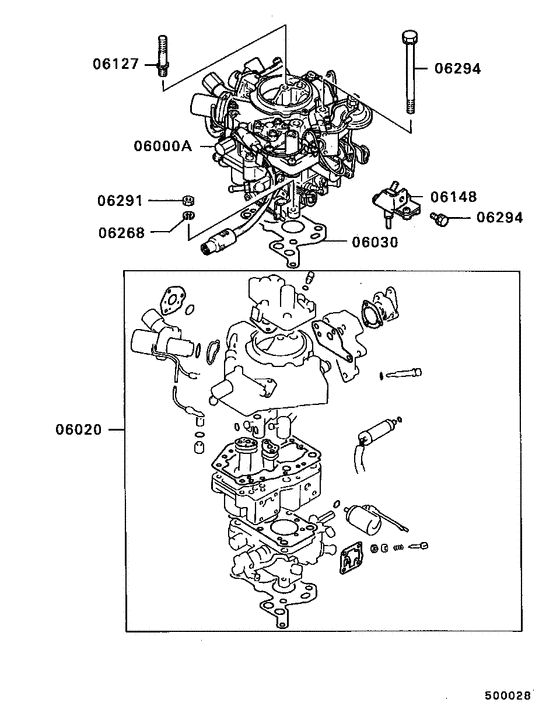

Carburetor (W/TURBO (ASSEMBLY)) 13
| # | OEM | Part name |
|---|---|---|
| 6000 | MD097364 | CARBURETOR ASSY |
| 6000 | MD097365 | CARBURETOR ASSY |
| 6020 | MD617141 | GASKET KIT, CARB |
| 6030 | MD097371 | GASKET, CARB |
| 6127 | MD025402 | STUD, CARB - 8x55 |
| 6127 | MD600190 | STUD, CARB - 8x58 |
| 6148 | MD076494 | VALVE, CARB IDLE COMPENSATOR |
| 6268 | MF450404 | WASHER, ENG OIL PAN - Spring,6 |
| 6268 | MF450405 | WASHER, CYLINDER HEAD - Spring,8 |
| 6291 | MF430004 | NUT, ENG OIL PAN - 6 |
| 6291 | MF430725 | NUT, CYLINDER HEAD - Jam,8 |
| 6294 | MD025419 | BOLT, CARB - Washer assembled,8x110 |
| 6294 | MF240022 | BOLT, ROCKER COVER - Washer assembled,6x10 |
| OEM | Part name | Category |
|---|---|---|
| MD025402 | STUD, CARB - 8x55 | Carburetor (W/TURBO (ASSEMBLY)) |
| MD025419 | BOLT, CARB - Washer assembled,8x110 | Carburetor (W/TURBO (ASSEMBLY)) |
| MD076494 | VALVE, CARB IDLE COMPENSATOR | Carburetor (W/TURBO (ASSEMBLY)) |
| MD097364 | CARBURETOR ASSY | Carburetor (W/TURBO (ASSEMBLY)) |
| MD097365 | CARBURETOR ASSY | Carburetor (W/TURBO (ASSEMBLY)) |
| MD097371 | GASKET, CARB | Carburetor (W/TURBO (ASSEMBLY)) |
| MD600190 | STUD, CARB - 8x58 | Carburetor (W/TURBO (ASSEMBLY)) |
| MD617141 | GASKET KIT, CARB | Carburetor (W/TURBO (ASSEMBLY)) |
| MF240022 | BOLT, ROCKER COVER - Washer assembled,6x10 | Carburetor (W/TURBO (ASSEMBLY)) |
| MF430004 | NUT, ENG OIL PAN - 6 | Carburetor (W/TURBO (ASSEMBLY)) |
| MF430725 | NUT, CYLINDER HEAD - Jam,8 | Carburetor (W/TURBO (ASSEMBLY)) |
| MF450404 | WASHER, ENG OIL PAN - Spring,6 | Carburetor (W/TURBO (ASSEMBLY)) |
| MF450405 | WASHER, CYLINDER HEAD - Spring,8 | Carburetor (W/TURBO (ASSEMBLY)) |
