Search › Model › GZG50
GZG50

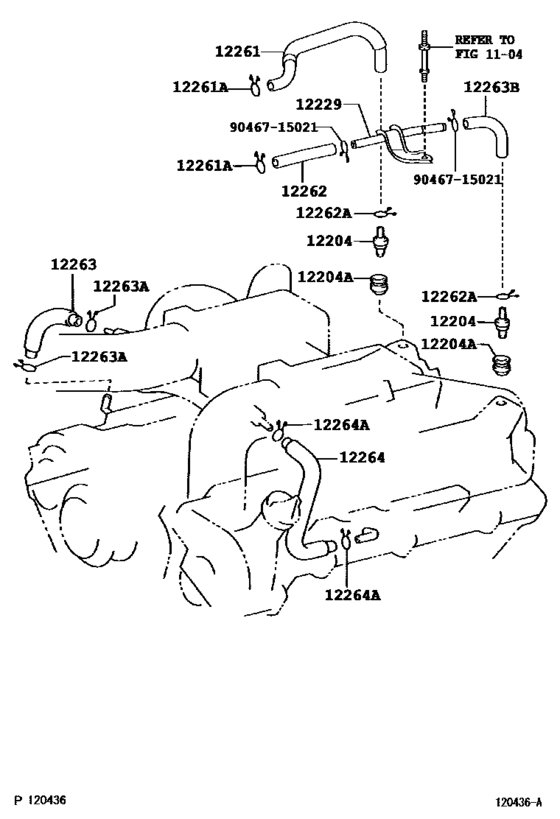

Ventilation Hose ([01.2005 - ] (0501- )) 12
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-32020 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18001 | Grommet(For Ventilation System) |
| 12229 | 12229-32010 | Pipe, Ventilation |
| 12261 | 12261-32050 | Hose, Ventilation |
| 12261 | 90467-15021 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-32030 | Hose, Ventilation, No.2 |
| 12262 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 12263-32020 | Hose, Ventilation, No.3 |
| 12263 | 90467-17012 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 12263-32030 | Hose, Ventilation, No,3 |
| 12264 | 12264-32010 | Hose, Ventilation, No.4 |
| OEM | Part name | Category |
|---|---|---|
| 12204-32020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([01.2005 - ] (0501- )) |
| 12229-32010 | Pipe, Ventilation | Ventilation Hose ([01.2005 - ] (0501- )) |
| 12261-32050 | Hose, Ventilation | Ventilation Hose ([01.2005 - ] (0501- )) |
| 12262-32030 | Hose, Ventilation, No.2 | Ventilation Hose ([01.2005 - ] (0501- )) |
| 12263-32020 | Hose, Ventilation, No.3 | Ventilation Hose ([01.2005 - ] (0501- )) |
| 12263-32030 | Hose, Ventilation, No,3 | Ventilation Hose ([01.2005 - ] (0501- )) |
| 12264-32010 | Hose, Ventilation, No.4 | Ventilation Hose ([01.2005 - ] (0501- )) |
| 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([01.2005 - ] (0501- )) |
| 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([01.2005 - ] (0501- )) |
| 90467-15021 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([01.2005 - ] (0501- )) |
| 90467-17012 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([01.2005 - ] (0501- )) |
| 90480-18001 | Grommet(For Ventilation System) | Ventilation Hose ([01.2005 - ] (0501- )) |
