Search › Model › GZG50
GZG50

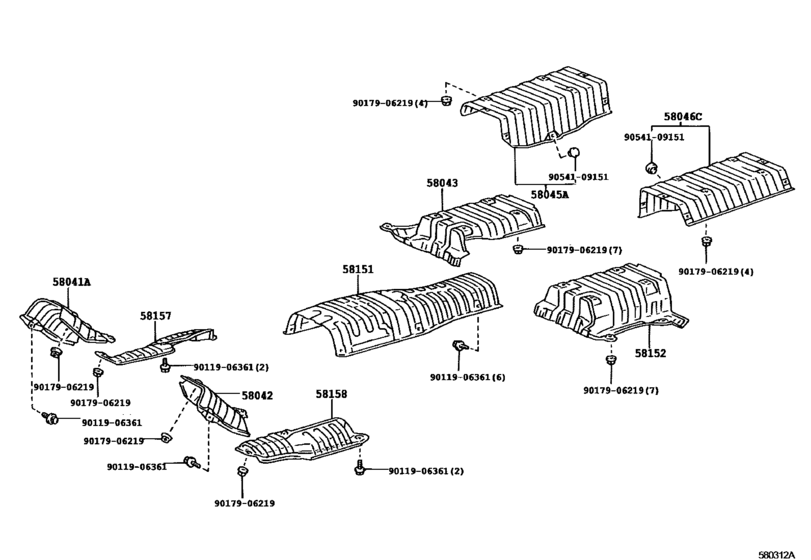

Floor Insulator ([04.1997 - ] (9704- )) 13
| # | OEM | Part name |
|---|---|---|
| 58041 | 58041-40020 | Insulator Sub-Assy, Front Floor Heat, No.1 |
| 58042 | 58042-40020 | Insulator Sub-Assy, Front Floor Heat, No.2 |
| 58043 | 58043-50010 | Insulator Sub-Assy, Main Muffler Heat, Rear |
| 58045 | 58045-40010 | Insulator Sub-Assy, Rear Floor Heat |
| 58046 | 58046-40010 | Insulator Sub-Assy, Rear Floor Heat, No.2 |
| 58151 | 58151-50010 | Insulator, Front Floor Heat, No.1 |
| 58152 | 58044-50010 | Insulator Sub-Assy, Center Floor Heat, No.2 |
| 58157 | 58157-50020 | Insulator, Front Floor Heat, No.5 |
| 58158 | 58158-50020 | Insulator, Front Floor Heat, No.6 |
| 9011906361 | 90119-06361 | BOLT WWASHER |
| 9017906219 | 90179-06219 | Nut |
| 9017906219 | 90182-A0005 | Nut |
| 9054109151 | 90541-09151 | Cushion(For Luggage Compartment Door Panel) |
| OEM | Part name | Category |
|---|---|---|
| 58041-40020 | Insulator Sub-Assy, Front Floor Heat, No.1 | Floor Insulator ([04.1997 - ] (9704- )) |
| 58042-40020 | Insulator Sub-Assy, Front Floor Heat, No.2 | Floor Insulator ([04.1997 - ] (9704- )) |
| 58043-50010 | Insulator Sub-Assy, Main Muffler Heat, Rear | Floor Insulator ([04.1997 - ] (9704- )) |
| 58044-50010 | Insulator Sub-Assy, Center Floor Heat, No.2 | Floor Insulator ([04.1997 - ] (9704- )) |
| 58045-40010 | Insulator Sub-Assy, Rear Floor Heat | Floor Insulator ([04.1997 - ] (9704- )) |
| 58046-40010 | Insulator Sub-Assy, Rear Floor Heat, No.2 | Floor Insulator ([04.1997 - ] (9704- )) |
| 58151-50010 | Insulator, Front Floor Heat, No.1 | Floor Insulator ([04.1997 - ] (9704- )) |
| 58157-50020 | Insulator, Front Floor Heat, No.5 | Floor Insulator ([04.1997 - ] (9704- )) |
| 58158-50020 | Insulator, Front Floor Heat, No.6 | Floor Insulator ([04.1997 - ] (9704- )) |
| 90119-06361 | BOLT WWASHER | Floor Insulator ([04.1997 - ] (9704- )) |
| 90179-06219 | Nut | Floor Insulator ([04.1997 - ] (9704- )) |
| 90182-A0005 | Nut | Floor Insulator ([04.1997 - ] (9704- )) |
| 90541-09151 | Cushion(For Luggage Compartment Door Panel) | Floor Insulator ([04.1997 - ] (9704- )) |
