Search › Model › GYL20

GYL20

Lexus RX · 2015 · 7,108 parts · 368 categories

7,108 items

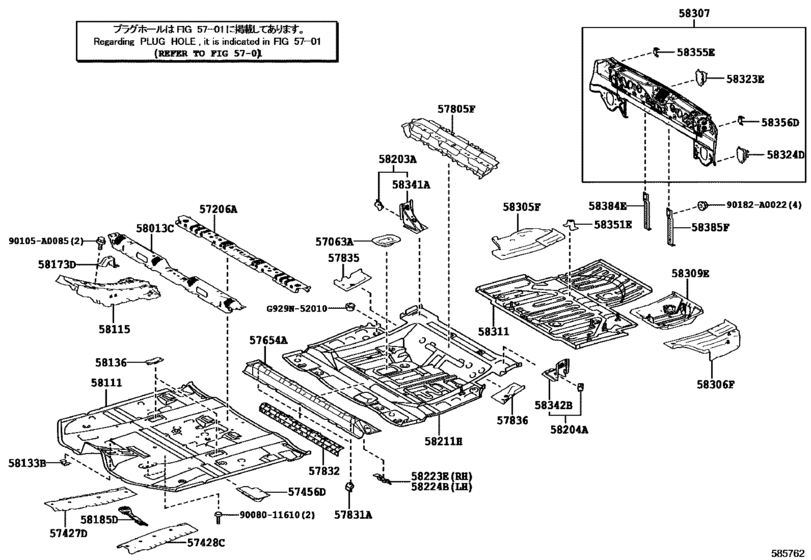

Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#) 38

#	OEM	Part name
57063	57063-0E010	Bracket Sub-Assy, Fuel Tank Mounting, Rear Rh
57206	57206-0E050	Member Sub-Assy, Front Floor Cross, No.2
57427	57427-0E011	Reinforcement, Front Floor, No.3 Rh
57428	57428-0E060	Reinforcement, Front Floor, No.3 Lh
57456	57456-0E010	Plate, Front Floor Cross Member, No.3 Lh
57654	57654-0E050	Member, Rear Floor Cross, No.3
57805	57805-0E020	Reinforcement Sub-Assy, Belt Anchor, Rh
57831	57831-0E010	Reinforcement, Rear No.1 Seat Leg, Front No.1
57832	57832-0E050	Reinforcement, Rear No.1 Seat Leg, Front No.2
57835	57835-0E020	Reinforcement, Rear No.1 Seat Leg, Rear No.1
57836	57836-0E020	Reinforcement, Rear No.1 Seat Leg, Rear No.2
58013	58013-0E022	Support Sub-Assy, Shift & Select Lever
58111	58111-0E070	Pan, Front Floor
58115	58115-0E020	Reinforcement, Front Floor Panel, Front
58133	58133-0E010	Bracket, Front Floor Heat Insulator, No.3
58136	58136-0E010	Cover, Front Floor Hole
58173	58173-0E010	Bracket, Computer Mounting, No.4
58185	58185-0E010	Plate, Accelerator Pedal Mounting
58203	58203-0E010	Reinforcement Sub-Assy, Center Floor Panel, Rh
58204	58204-0E020	Reinforcement Sub-Assy, Center Floor Panel, Lh
58211	58211-0E080	Pan, Center Floor
58223	58223-0E020	Reinforcement, Floor Panel Side, Rh
58224	58224-0E020	Reinforcement, Floor Panel Side, Lh
58305	58305-0E020	Panel Sub-Assy, Rear Floor Side, Rh
58306	58306-0E020	Panel Sub-Assy, Rear Floor Side, Lh
58307	58307-0E070	Panel Sub-Assy, Body Lower Back
58309	58309-0E050	Plate Sub-Assy, Rear Floor
58311	58311-0E080	Pan, Rear Floor
58323	58323-0E010	Reinforcement, Rear Bumper Arm Support, Rh
58324	58324-0E010	Reinforcement, Rear Bumper Arm Support, Lh
58341	58341-0E030	Bracket, Rear Absorber Mounting, Rh
58342	58342-0E030	Bracket, Rear Absorber Mounting, Lh
58351	58351-0E010	Bracket, Spare Wheel Carrier
58355	58355-0E060	Bracket, Rear Bumper Arm, Rh
58384	58384-0E010	Gusset, Lower Back Panel, No.1 Rh
90105	90105-A0085	Bolt (For Transmission Control Cable Bracket)
90182	90182-A0022	NUT WWASHER
9008011610	90080-11610	Bolt, Weld(For Front Floor Pan)

OEM	Part name	Category
57063-0E010	Bracket Sub-Assy, Fuel Tank Mounting, Rear Rh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
57206-0E050	Member Sub-Assy, Front Floor Cross, No.2	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
57427-0E011	Reinforcement, Front Floor, No.3 Rh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
57428-0E060	Reinforcement, Front Floor, No.3 Lh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
57456-0E010	Plate, Front Floor Cross Member, No.3 Lh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
57654-0E050	Member, Rear Floor Cross, No.3	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
57805-0E020	Reinforcement Sub-Assy, Belt Anchor, Rh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
57831-0E010	Reinforcement, Rear No.1 Seat Leg, Front No.1	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
57832-0E050	Reinforcement, Rear No.1 Seat Leg, Front No.2	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
57835-0E020	Reinforcement, Rear No.1 Seat Leg, Rear No.1	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
57836-0E020	Reinforcement, Rear No.1 Seat Leg, Rear No.2	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58013-0E022	Support Sub-Assy, Shift & Select Lever	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58111-0E070	Pan, Front Floor	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58115-0E020	Reinforcement, Front Floor Panel, Front	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58133-0E010	Bracket, Front Floor Heat Insulator, No.3	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58136-0E010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58173-0E010	Bracket, Computer Mounting, No.4	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58185-0E010	Plate, Accelerator Pedal Mounting	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58203-0E010	Reinforcement Sub-Assy, Center Floor Panel, Rh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58204-0E020	Reinforcement Sub-Assy, Center Floor Panel, Lh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58211-0E080	Pan, Center Floor	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58223-0E020	Reinforcement, Floor Panel Side, Rh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58224-0E020	Reinforcement, Floor Panel Side, Lh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58305-0E020	Panel Sub-Assy, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58306-0E020	Panel Sub-Assy, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58307-0E070	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58309-0E050	Plate Sub-Assy, Rear Floor	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58311-0E080	Pan, Rear Floor	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58323-0E010	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58324-0E010	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58341-0E030	Bracket, Rear Absorber Mounting, Rh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58342-0E030	Bracket, Rear Absorber Mounting, Lh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58351-0E010	Bracket, Spare Wheel Carrier	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58355-0E060	Bracket, Rear Bumper Arm, Rh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
58384-0E010	Gusset, Lower Back Panel, No.1 Rh	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
90080-11610	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
90105-A0085	Bolt (For Transmission Control Cable Bracket)	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)
90182-A0022	NUT WWASHER	Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1510- )GYL2#)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 368
Collected: 2026-07-23
