GYL16

Lexus RX · 2009 · 6,753 parts · 230 categories

← Back to categories

6,753 items

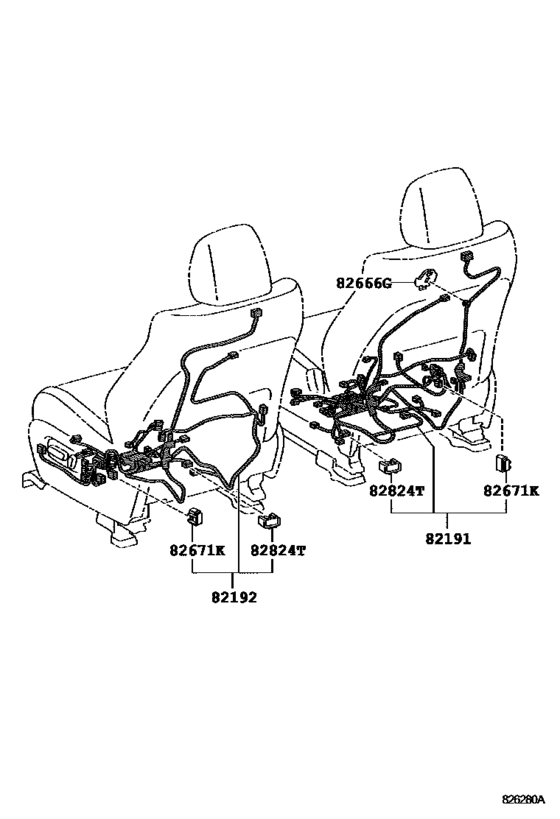

Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- )) 11

#	OEM	Part name
82191	82191-48460	Wire, Front Seat, Rh
82191	82191-48500	Wire, Front Seat, Rh
82191	82191-48730	Wire, Front Seat, Rh
82191	82191-48780	Wire, Front Seat, Rh
82192	82192-48350	Wire, Front Seat, Lh
82192	82192-48430	Wire, Front Seat, Lh
82192	82192-48590	Wire, Front Seat, Lh
82192	82192-48600	Wire, Front Seat, Lh
82666	82666-48360	Holder, Connector No.8
82671	82671-30340	Block, Junction
82824	82824-22080	Connector, Wiring Harness

OEM	Part name	Category
82191-48460	Wire, Front Seat, Rh	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))
82191-48500	Wire, Front Seat, Rh	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))
82191-48730	Wire, Front Seat, Rh	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))
82191-48780	Wire, Front Seat, Rh	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))
82192-48350	Wire, Front Seat, Lh	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))
82192-48430	Wire, Front Seat, Lh	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))
82192-48590	Wire, Front Seat, Lh	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))
82192-48600	Wire, Front Seat, Lh	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))
82666-48360	Holder, Connector No.8	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))
82671-30340	Block, Junction	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))
82824-22080	Connector, Wiring Harness	Wiring & Clamp ([12.2008 - ] ｼｰﾄ (0812- ))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 230
Collected: 2026-07-30
