Search › Model › GYL16
GYL16

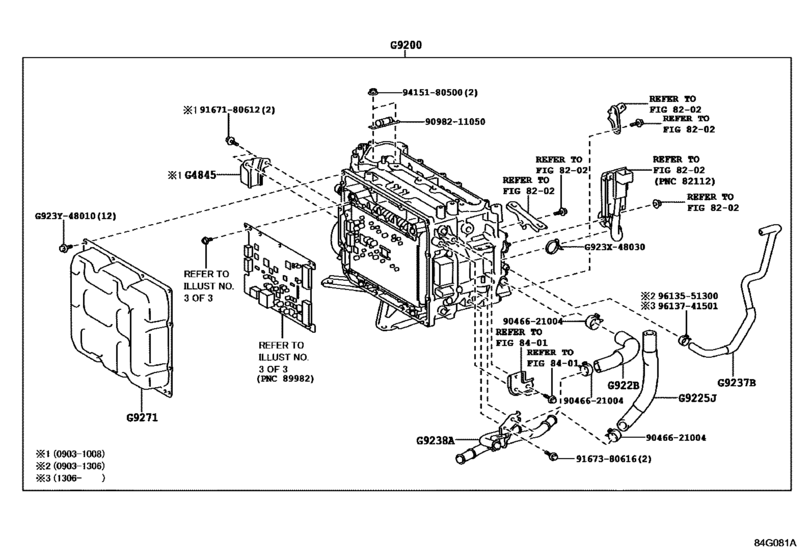

Hv Inverter ([03.2009 - 06.2014] (0903-1406)GYL1#) 7
| # | OEM | Part name |
|---|---|---|
| 9046621004 | 90466-21004 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 9098211050 | 90982-11050 | Fuse, High Voltage |
| 9167180612 | 91671-80612 | Bolt |
| 9167380616 | 91673-80616 | Bolt, W/washer |
| 9415180500 | 94151-80500 | New Genuine Part |
| 9613551300 | 96135-51300 | Clamp, Hose |
| 9613741501 | 96137-41501 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| OEM | Part name | Category |
|---|---|---|
| 90466-21004 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Hv Inverter ([03.2009 - 06.2014] (0903-1406)GYL1#) |
| 90982-11050 | Fuse, High Voltage | Hv Inverter ([03.2009 - 06.2014] (0903-1406)GYL1#) |
| 91671-80612 | Bolt | Hv Inverter ([03.2009 - 06.2014] (0903-1406)GYL1#) |
| 91673-80616 | Bolt, W/washer | Hv Inverter ([03.2009 - 06.2014] (0903-1406)GYL1#) |
| 94151-80500 | New Genuine Part | Hv Inverter ([03.2009 - 06.2014] (0903-1406)GYL1#) |
| 96135-51300 | Clamp, Hose | Hv Inverter ([03.2009 - 06.2014] (0903-1406)GYL1#) |
| 96137-41501 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Hv Inverter ([03.2009 - 06.2014] (0903-1406)GYL1#) |
