Search › Model › GXS12
GXS12

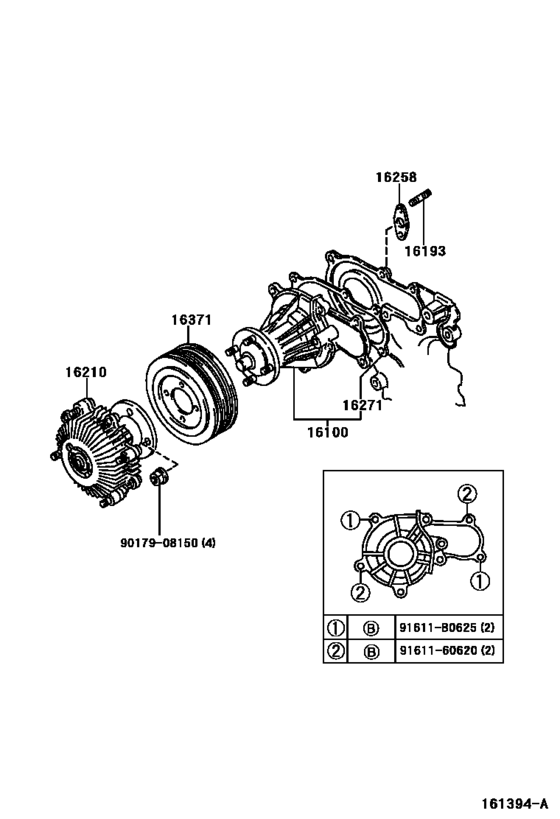

Water Pump ([08.2001 - ] (0108- )1GFE..GXS12) 9
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-79285 | Pump Assy, Engine Water |
| 16193 | 16192-70010 | Bolt, Stud(For Water Pump Cover) |
| 16210 | 16210-70090 | Coupling Assy, Fluid |
| 16258 | 16258-70020 | Gasket(For Heater Return) |
| 16271 | 16124-70041 | Gasket, Water Pump |
| 16371 | 16371-70060 | Pulley, Fan |
| 91611 | 91611-B0625 | Bolt (For Automatic Transmission Oil Pan) |
| 9017908150 | 90179-08150 | NUT |
| 9161160620 | 91611-60620 | Screw Or Bolt(For Valve Rocker Shaft Lock) |
| OEM | Part name | Category |
|---|---|---|
| 16100-79285 | Pump Assy, Engine Water | Water Pump ([08.2001 - ] (0108- )1GFE..GXS12) |
| 16124-70041 | Gasket, Water Pump | Water Pump ([08.2001 - ] (0108- )1GFE..GXS12) |
| 16192-70010 | Bolt, Stud(For Water Pump Cover) | Water Pump ([08.2001 - ] (0108- )1GFE..GXS12) |
| 16210-70090 | Coupling Assy, Fluid | Water Pump ([08.2001 - ] (0108- )1GFE..GXS12) |
| 16258-70020 | Gasket(For Heater Return) | Water Pump ([08.2001 - ] (0108- )1GFE..GXS12) |
| 16371-70060 | Pulley, Fan | Water Pump ([08.2001 - ] (0108- )1GFE..GXS12) |
| 90179-08150 | NUT | Water Pump ([08.2001 - ] (0108- )1GFE..GXS12) |
| 91611-60620 | Screw Or Bolt(For Valve Rocker Shaft Lock) | Water Pump ([08.2001 - ] (0108- )1GFE..GXS12) |
| 91611-B0625 | Bolt (For Automatic Transmission Oil Pan) | Water Pump ([08.2001 - ] (0108- )1GFE..GXS12) |
