Search › Model › GXS12

GXS12

Toyota CROWN-COMFORT · 2001 · 3,534 parts · 179 categories

3,534 items

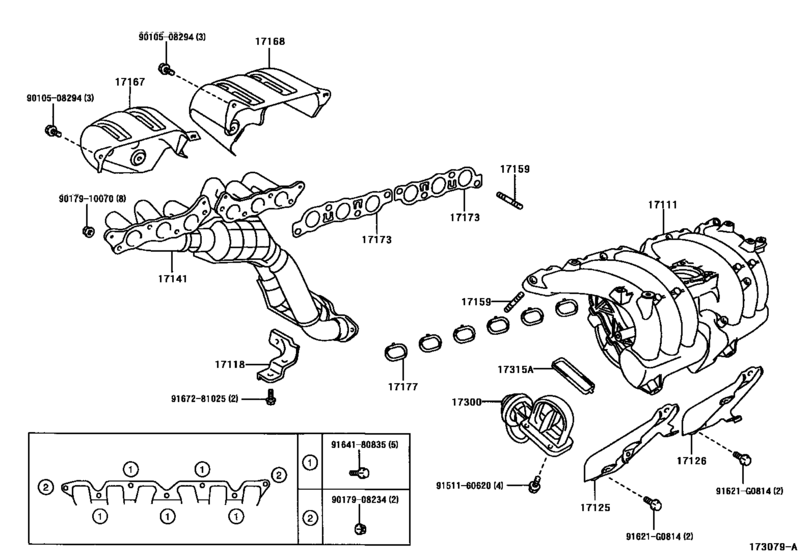

Manifold ([08.2001 - ] (0108- )1GFE..GXS12) 22

#	OEM	Part name
17111	17101-70100	Manifold, Intake
17118	17118-70160	Stay, Manifold
17125	17125-70040	Stay, Surge Tank, No.1
17126	17126-70040	Stay, Surge Tank, No.2
17141	17140-70060	Manifold, Exhaust
17159	90116-10205	Bolt, Stud(For Manifold To Cylinder Head)
17159	92132-C0832	Bolt, Stud(For Manifold To Cylinder Head)
17167	17167-70070	Insulator, Exhaust Manifold Heat, No.1
17168	17168-70050	Insulator, Exhaust Manifold Heat, No.2
17173	17173-70050	Gasket, Exhaust Manifold To Head
17177	17177-70050	Gasket, Intake Manifold To Head, No.1
17300	17300-70010	Valve Assy, Intake Air Control
17315	17315-70010	Gasket, Intake Air Control Valve
91621	91621-G0814	New Genuine Part
9010508294	90105-08294	New Genuine Part
9017908234	90179-08234	NUT
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9151160620	91511-60620	Bolt(For Clutch Release Bearing Hub Retainer)
9151160620	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
9164180835	91641-80835	Bolt, Compressor, No.1
9167281025	91672-81025	Bolt, Center Support Bearing Bracket

OEM	Part name	Category
17101-70100	Manifold, Intake	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
17118-70160	Stay, Manifold	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
17125-70040	Stay, Surge Tank, No.1	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
17126-70040	Stay, Surge Tank, No.2	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
17140-70060	Manifold, Exhaust	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
17167-70070	Insulator, Exhaust Manifold Heat, No.1	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
17168-70050	Insulator, Exhaust Manifold Heat, No.2	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
17173-70050	Gasket, Exhaust Manifold To Head	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
17177-70050	Gasket, Intake Manifold To Head, No.1	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
17300-70010	Valve Assy, Intake Air Control	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
17315-70010	Gasket, Intake Air Control Valve	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
90105-08294	New Genuine Part	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
90116-10205	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
90179-08234	NUT	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
91511-60620	Bolt(For Clutch Release Bearing Hub Retainer)	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
91621-G0814	New Genuine Part	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
91641-80835	Bolt, Compressor, No.1	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
91672-81025	Bolt, Center Support Bearing Bracket	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
92132-C0832	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.2001 - ] (0108- )1GFE..GXS12)
