GXS12

Toyota CROWN-COMFORT · 2001 · 3,534 parts · 179 categories
GXS12 ×

← Back to categories

3,534 items

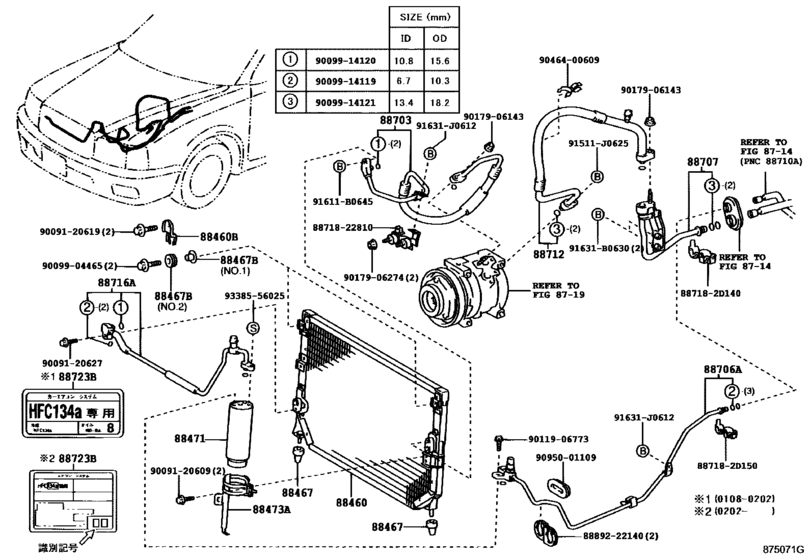

Heating & Air Conditioning - Cooler Piping ([08.2001 - ] (0108- )GXS1#) 38
#OEMPart name
88460 88460-43010 Condenser Assy, Cooler
88460 88688-43010 Bracket, Cooler Condenser, No.1
88467 88467-32020 Cushion, Cooler Condenser, No.1
88467 88467-14050 Cushion, Cooler Condenser, No.1
88467 88467-24060 Insulator, Cooler Condenser Mounting
88471 88471-22030 Tank, Receiver Air Conditioner
88473 88473-43020 Holder, Receiver
88703 88703-43010 Hose Sub-Assy, Discharge
88706 88706-43010 Tube Sub-Assy, Liquid, A
88707 88707-43010 Pipe Sub-Assy, Suction
88712 88712-43090 Hose, Cooler Refrigerant Suction, No.1
88716 88716-43100 Pipe, Cooler Refrigerant Liquid, A
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
88723 88733-24010 Label, Cooler Service Caution
88723 88733-24011 Label, Cooler Service Caution
91511 91511-J0625 Bolt(For Cylinder Head Cover)
91611 91611-B0645 New Genuine Part
91631 91631-B0630 BOLT WWASHER
91631 91631-J0612 BRACKET
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8871822810 88718-22810 Pipe, Cooler Refrigerant Suction, No.2
8889222140 88892-22140 Bracket, Cooler Evaporator Mounting
9009120609 90091-20609 BOLT
9009120619 90091-20619 BOLT
9009120627 90091-20627 New Genuine Part
9009904465 90099-04465 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9011906773 90119-06773 Bolt
9017906143 90179-06143 NUT
9017906274 90179-06274 Nut
9046400609 90464-00609 New Genuine Part
9095001109 90950-01109 New Genuine Part
9338556025 93385-56025 New Genuine Part
