GXS12

Toyota CROWN-COMFORT · 2001 · 3,534 parts · 179 categories

← Back to categories

3,534 items

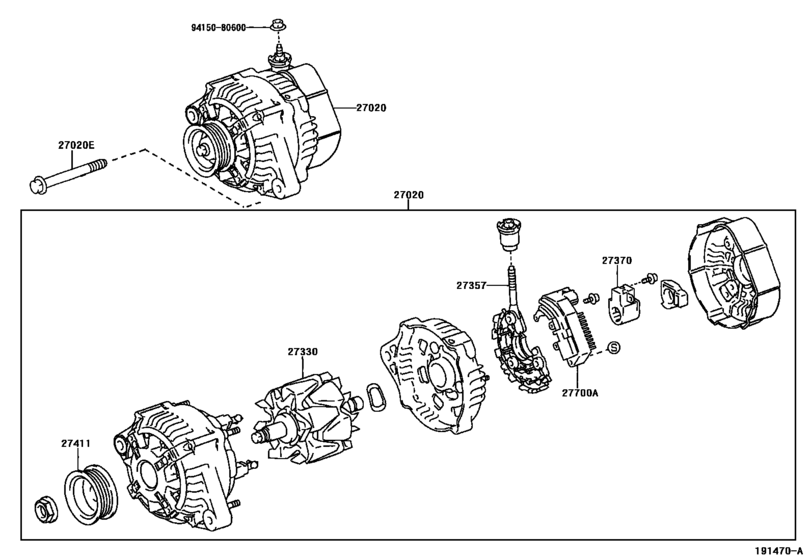

Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12) 10

#	OEM	Part name
27020	27060-70520	Alternator Assy
27020	27060-70510	Alternator Assy
27020	90105-10499	Bolt(For Alternator)
27330	27330-70470	Rotor Assy, Alternator
27330	27330-74550	Rotor Assy, Alternator
27357	27357-55080	Holder, Alternator, W/rectifier
27370	27370-75060	Holder Assy, Alternator Brush
27411	27411-70330	Pulley, Alternator
27700	27700-46050	Regulator Assy, Generator
9415080600	94150-80600	NUT FLANGE

OEM	Part name	Category
27060-70510	Alternator Assy	Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12)
27060-70520	Alternator Assy	Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12)
27330-70470	Rotor Assy, Alternator	Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12)
27330-74550	Rotor Assy, Alternator	Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12)
27357-55080	Holder, Alternator, W/rectifier	Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12)
27370-75060	Holder Assy, Alternator Brush	Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12)
27411-70330	Pulley, Alternator	Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12)
27700-46050	Regulator Assy, Generator	Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12)
90105-10499	Bolt(For Alternator)	Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12)
94150-80600	NUT FLANGE	Alternator ([08.2001 - ] 12V 80A (0108- )1GFE..GXS12)
