GXE15

Toyota ALTEZZA-ALTEZZA-GITA · 2002 · 4,803 parts · 193 categories

← Back to categories

4,803 items

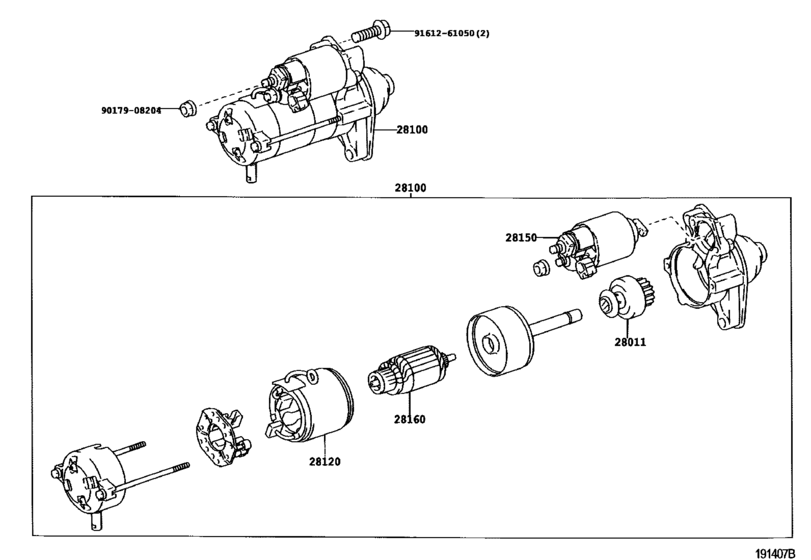

Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE) 12

#	OEM	Part name
28011	28011-70020	Clutch Sub-Assy, Starter
28100	28100-70030	Starter Assy
28100	28100-70050	Starter Assy
28120	28120-70020	Yoke Assy, Starter
28120	28120-70050	Yoke Assy, Starter
28150	28150-70030	Switch Assy, Magnet Starter
28150	28150-22100	Switch Assy, Magnet Starter
28160	28160-70021	Armature Assy, Starter
28160	28160-70050	Armature Assy, Starter
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9161261050	91612-61050	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
28011-70020	Clutch Sub-Assy, Starter	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
28100-70030	Starter Assy	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
28100-70050	Starter Assy	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
28120-70020	Yoke Assy, Starter	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
28120-70050	Yoke Assy, Starter	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
28150-22100	Switch Assy, Magnet Starter	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
28150-70030	Switch Assy, Magnet Starter	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
28160-70021	Armature Assy, Starter	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
28160-70050	Armature Assy, Starter	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
90080-18070	NUT, WWASHER	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
90179-08204	Nut	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)
91612-61050	Bolt(For Transaxle & Engine Setting)	Starter ([05.2001 - ] 12V 0.8KW,12V 1.0KW (0105- )1GFE)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 193
Collected: 2026-08-02
