Search › Model › GX81

GX81

Toyota CHASER · 1988 · 7,573 parts · 234 categories

7,573 items

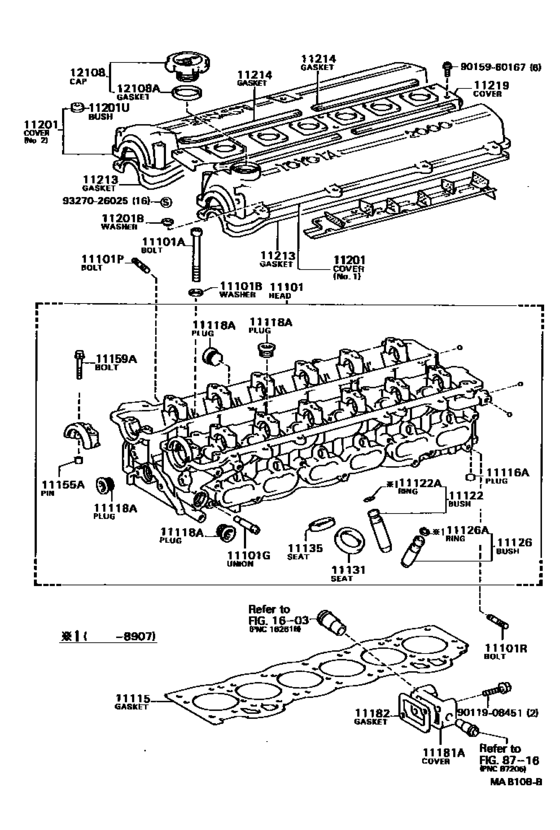

Cylinder Head ([08.1988 - ] (8808- )1GGE) 44

#	OEM	Part name
11101	11101-70023	Head Sub-Assy, Cylinder
11101	11101-70025	Head Sub-Assy, Cylinder
11101	11101-70024	Head Sub-Assy, Cylinder
11101	11101-88301	Head Sub-Assy, Cylinder
11101	11101-88302	Head Sub-Assy, Cylinder
11101	90110-10003	Bolt(For Cylinder Head Set)
11101	90201-10050	Washer, Plate(For Cylinder Head Set)
11101	90072-40625	Union(For Cylinder Head)
11101	90406-08011	Union(For Cylinder Head)
11101	90116-08115	Bolt, Stud(For Distributor)
11101	90116-06063	Bolt, Stud(For Fuel Pipe)
11101	92132-60614	Bolt, Stud(For Fuel Pipe)
11115	11115-88302	Gasket, Cylinder Head
11116	96411-41800	Plug, Tight, No.1
11118	90341-27003	Plug, W/head Taper Screw, No.1
11122	11122-16020	Bush, Intake Valve Guide
11122	11122-88320	Bush, Intake Valve Guide
11122	11123-16020	Bush, Intake Valve Guide
11122	11123-88320	Bush, Intake Valve Guide
11122	90520-10004	Ring, Shaft Snap (For Valve Guide Bush)
11131	11131-70010	Seat, Intake Valve
11131	11132-70010	Seat, Intake Valve
11135	11135-70021	Seat, Exhaust Valve
11135	11136-70021	Seat, Exhaust Valve
11155	90253-10004	Pin, Ring W/head
11155	90253-10006	Pin, Ring(For Camshaft Bearing Cap Setting)
11159	90119-07002	Bolt(For Head To Camshaft Bearing Cap)
11181	11181-88300	Cover, Cylinder Head, Rear
11182	11182-88300	Gasket, Cylinder Head Rear Plate
11182	11182-70030	Gasket, Cylinder Head Rear Plate
11201	11201-70060	Cover Sub-Assy, Cylinder Head
11201	11202-70020	Cover Sub-Assy, Cylinder Head
11201	90210-07001	Washer, Seal(For Cylinder Head Cover)
11201	90210-07004	Washer, Seal(For Cylinder Head Cover)
11201	90385-07001	Bush(For Cylinder Head Cover)
11213	11213-88302	Gasket, Cylinder Head Cover
11214	11214-88300	Gasket, Cylinder Head Cover, No.2
11214	11229-88300	Gasket, Cylinder Head Cover, No.2
11219	11219-88300	Cover, Cylinder Head, No.3
12108	12180-70020	Cap Sub-Assy, Oil Filler
12108	12195-70010	Gasket(For Oil Filler Cap)
9011908451	90119-08451	New Genuine Part
9015960167	90159-60167	New Genuine Part
9327026025	93270-26025	SCREW

OEM	Part name	Category
11101-70023	Head Sub-Assy, Cylinder	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11101-70024	Head Sub-Assy, Cylinder	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11101-70025	Head Sub-Assy, Cylinder	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11101-88301	Head Sub-Assy, Cylinder	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11101-88302	Head Sub-Assy, Cylinder	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11115-88302	Gasket, Cylinder Head	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11122-16020	Bush, Intake Valve Guide	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11122-88320	Bush, Intake Valve Guide	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11123-16020	Bush, Intake Valve Guide	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11123-88320	Bush, Intake Valve Guide	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11131-70010	Seat, Intake Valve	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11132-70010	Seat, Intake Valve	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11135-70021	Seat, Exhaust Valve	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11136-70021	Seat, Exhaust Valve	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11181-88300	Cover, Cylinder Head, Rear	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11182-70030	Gasket, Cylinder Head Rear Plate	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11182-88300	Gasket, Cylinder Head Rear Plate	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11201-70060	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11202-70020	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11213-88302	Gasket, Cylinder Head Cover	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11214-88300	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11219-88300	Cover, Cylinder Head, No.3	Cylinder Head ([08.1988 - ] (8808- )1GGE)
11229-88300	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([08.1988 - ] (8808- )1GGE)
12180-70020	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.1988 - ] (8808- )1GGE)
12195-70010	Gasket(For Oil Filler Cap)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90072-40625	Union(For Cylinder Head)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90110-10003	Bolt(For Cylinder Head Set)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90116-06063	Bolt, Stud(For Fuel Pipe)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90116-08115	Bolt, Stud(For Distributor)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90119-07002	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90119-08451	New Genuine Part	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90159-60167	New Genuine Part	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90201-10050	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90210-07001	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90210-07004	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90253-10004	Pin, Ring W/head	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90253-10006	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90341-27003	Plug, W/head Taper Screw, No.1	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90385-07001	Bush(For Cylinder Head Cover)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90406-08011	Union(For Cylinder Head)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
90520-10004	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
92132-60614	Bolt, Stud(For Fuel Pipe)	Cylinder Head ([08.1988 - ] (8808- )1GGE)
93270-26025	SCREW	Cylinder Head ([08.1988 - ] (8808- )1GGE)
96411-41800	Plug, Tight, No.1	Cylinder Head ([08.1988 - ] (8808- )1GGE)
