Search › Model › GX61

GX61

Toyota CHASER · 1980 · 5,269 parts · 187 categories

5,269 items

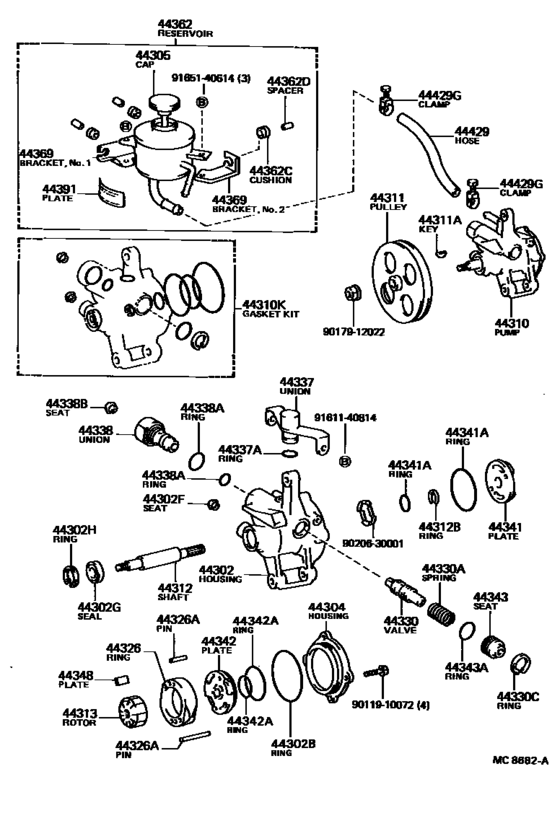

Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC) 87

#	OEM	Part name
44302	44302-22030	Housing Sub-Assy, Vane Pump, Front
44302	44302-22031	Housing Sub-Assy, Vane Pump, Front
44302	90301-63002	Ring, O, No.1(For Vane Pump Housing)
44302	90410-05035	Seat, Union(For Valve Body Housing)
44302	90311-18003	Seal, Oil, No.2(For Vane Pump Housing)
44302	90311-18008	Seal, Oil, No.2(For Vane Pump Housing)
44302	90521-32001	Ring, Snap, No.1(For Vane Pump Housing)
44304	44324-22030	Housing Sub-Assy, Vane Pump, Rear
44304	44324-22031	Housing Sub-Assy, Vane Pump, Rear
44304	44324-32010	Housing Sub-Assy, Vane Pump, Rear
44305	44305-30020	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir
44310	44320-14140	Pump Assy, Vane
44310	44320-14141	Pump Assy, Vane
44310	04446-16010	Gasket Kit, Power Steering Pump
44310	04446-16011	Gasket Kit, Power Steering Pump
44311	44311-22041	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12020	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-12010	Rotor, Vane Pump
44313	44313-22040	Rotor, Vane Pump
44313	44313-12020	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-12030	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-12040	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-12050	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44326	44325-12010	Ring, Cam(For Vane Pump)
44326	44325-12020	Ring, Cam(For Vane Pump)
44326	44325-12030	Ring, Cam(For Vane Pump)
44326	44325-12040	Ring, Cam(For Vane Pump)
44326	44325-12050	Ring, Cam(For Vane Pump)
44326	90250-05008	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-05017	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-12130	Valve Assy, Flow Control
44330	44330-32670	Valve Assy, Flow Control
44330	44330-12140	Valve Assy, Flow Control
44330	44330-32680	Valve Assy, Flow Control
44330	44330-12150	Valve Assy, Flow Control
44330	44330-32690	Valve Assy, Flow Control
44330	44330-12160	Valve Assy, Flow Control
44330	44330-32700	Valve Assy, Flow Control
44330	44330-12170	Valve Assy, Flow Control
44330	44330-32710	Valve Assy, Flow Control
44330	44330-12180	Valve Assy, Flow Control
44330	44330-32720	Valve Assy, Flow Control
44330	90501-12447	Spring, Compression(For Flow Control Valve)
44330	96151-02200	Ring(For Clutch Master Cylinder Reservoir)
44337	44337-22030	Union, Power Steering Suction Port
44337	96711-19013	Ring, O(For Power Steering Suction Port)
44338	44308-14040	Union, Pressure Port
44338	44308-14041	Union Sub-Assy, Pressure Port
44338	90301-22001	Ring, O(For Pressure Port Union)
44341	44341-12020	Plate, Vane Pump Side, Front
44341	44341-30030	Plate, Vane Pump Side, Front
44341	90301-21001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-56002	Ring, O(For Vane Pump Front Side Plate)
44342	44342-12010	Plate, Vane Pump Side, Rear
44342	44342-22010	Plate, Vane Pump Side, Rear
44342	44342-30020	Plate, Vane Pump Side, Rear
44342	90301-13004	Ring, O(For Vane Pump Side Plate Rear)
44342	90301-30004	Ring, O(For Vane Pump Side Plate Rear)
44342	90301-37002	Ring, O(For Vane Pump Side Plate Rear)
44343	44343-12030	Seat, Flow Control Spring
44343	96711-19019	Ring, O(For Vane Pump Union)
44348	44345-12010	Plate, Vane Pump
44348	44345-12020	Plate, Vane Pump
44348	44345-12030	Plate, Vane Pump
44348	44345-12040	Plate, Vane Pump
44348	44345-12050	Plate, Vane Pump
44362	44360-22060	Reservoir, Oil(For Vane Pump)
44362	90540-09004	Cushion(For Vane Pump Oil Reservoir)
44362	90560-06014	Spacer(For Vane Pump Oil Reservoir)
44369	44369-22030	Bracket, Oil Reservoir, No.1
44369	44379-22030	Bracket, Oil Reservoir, No.1
44391	44391-30020	Plate, Power Steering Oil Reservoir Caution
44429	44348-22070	Hose, Reservoir To Oil Pump
44429	90460-26001	Clamp(For Oil Reservoir To Pump Hose)
9011910072	90119-10072	New Genuine Part
9017912022	90179-12022	Nut(For Vane Pump Pulley)
9020630001	90206-30001	New Genuine Part
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9165140614	91651-40614	Bolt

OEM	Part name	Category
04446-16010	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
04446-16011	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44302-22030	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44302-22031	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44305-30020	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44308-14040	Union, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44308-14041	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44311-22041	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44312-12020	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44313-12010	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44313-12020	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44313-12030	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44313-12040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44313-12050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44320-14140	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44320-14141	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44324-22030	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44324-22031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44324-32010	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44325-12010	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44325-12020	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44325-12030	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44325-12040	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44325-12050	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-12130	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-12140	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-12150	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-12160	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-12170	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-12180	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-32670	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-32680	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-32690	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-32700	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-32710	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44330-32720	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44337-22030	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44341-12020	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44341-30030	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44342-12010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44342-22010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44342-30020	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44343-12030	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44348-22070	Hose, Reservoir To Oil Pump	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44360-22060	Reservoir, Oil(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44369-22030	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44379-22030	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
44391-30020	Plate, Power Steering Oil Reservoir Caution	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90119-10072	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90206-30001	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90250-05008	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90250-05017	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90301-13004	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90301-21001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90301-22001	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90301-30004	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90301-37002	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90301-56002	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90301-63002	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90311-18003	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90311-18008	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90410-05035	Seat, Union(For Valve Body Housing)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90460-26001	Clamp(For Oil Reservoir To Pump Hose)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90501-12447	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90521-32001	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90540-09004	Cushion(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
90560-06014	Spacer(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
91611-60814	Bolt	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
91651-40614	Bolt	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
96151-02200	Ring(For Clutch Master Cylinder Reservoir)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
96711-19013	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
96711-19019	Ring, O(For Vane Pump Union)	Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC)
