Search › Model › GX61

GX61

Toyota CHASER · 1980 · 5,269 parts · 187 categories

5,269 items

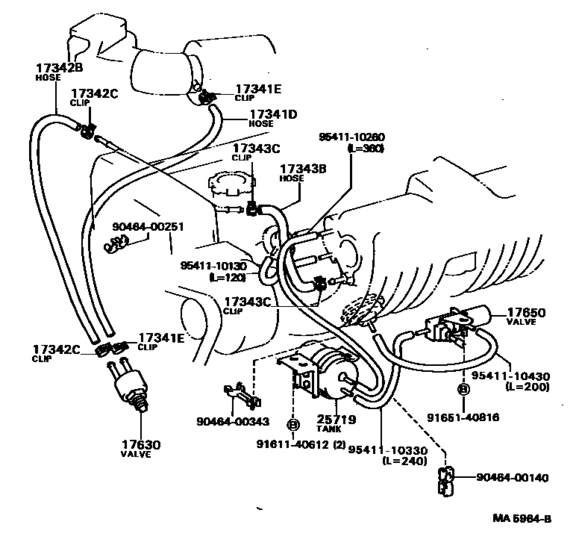

Vacuum Piping ([08.1982 - ] (8208- )1GGEU) 26

#	OEM	Part name
17341	17341-70030	Hose, No.1(For Idle-Up)
17341	96132-30400	Clip Or Clamp(For Ventilation Hose)
17341	96132-51000	Clip Or Clamp(For Ventilation Hose)
17342	90445-10009	Hose, No.2(For Idle-Up)
17342	90445-10016	Hose, No.2(For Idle-Up)
17342	96132-30600	Clip(For Actuator Hose)
17342	96132-51100	Clip (For Hose)
17343	17343-88300	Hose, No.3(For Idle-Up)
17630	17630-70020	Valve Assy, Air Control
17630	17630-16040	Valve Assy, Air Control
17650	89570-22130	Valve Assy, Vacuum Switching
25719	25719-88300	Tank, Vacuum Surge
25719	16264-88301	Hose, Water By-Pass, No.2
25719	25719-88301	Tank, Vacuum Surge
9046400140	90464-00140	Clamp, Resistive Cord, No.4
9046400251	90464-00251	Clamp, Vacuum Tube
9046400343	90464-00343	New Genuine Part
9161140612	91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612	91611-G0612	Bolt
9165140816	91651-40816	BOLT
9541110130	95411-10130	Pipe Or Hose
9541110130	90999-92002	Air Hose (300 mm)
9541110260	95411-10260	Hose (For Idle Up Device)
9541110260	90999-92003	Hose, Breather (For Transfer Case)
9541110330	95411-10330	Hose, Vacuum, No.1 (For Front Drive Shift)
9541110430	95411-10430	Hose (For Idle Up Device)

OEM	Part name	Category
16264-88301	Hose, Water By-Pass, No.2	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
17341-70030	Hose, No.1(For Idle-Up)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
17343-88300	Hose, No.3(For Idle-Up)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
17630-16040	Valve Assy, Air Control	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
17630-70020	Valve Assy, Air Control	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
25719-88300	Tank, Vacuum Surge	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
25719-88301	Tank, Vacuum Surge	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
89570-22130	Valve Assy, Vacuum Switching	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
90445-10009	Hose, No.2(For Idle-Up)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
90445-10016	Hose, No.2(For Idle-Up)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
90464-00140	Clamp, Resistive Cord, No.4	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
90464-00251	Clamp, Vacuum Tube	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
90464-00343	New Genuine Part	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
90999-92003	Hose, Breather (For Transfer Case)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
91611-G0612	Bolt	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
91651-40816	BOLT	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
95411-10130	Pipe Or Hose	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
95411-10260	Hose (For Idle Up Device)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
95411-10330	Hose, Vacuum, No.1 (For Front Drive Shift)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
95411-10430	Hose (For Idle Up Device)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
96132-30600	Clip(For Actuator Hose)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
96132-51100	Clip (For Hose)	Vacuum Piping ([08.1982 - ] (8208- )1GGEU)
