Search › Model › GX61

GX61

Toyota CHASER · 1980 · 5,269 parts · 187 categories

← Back to categories

5,269 items

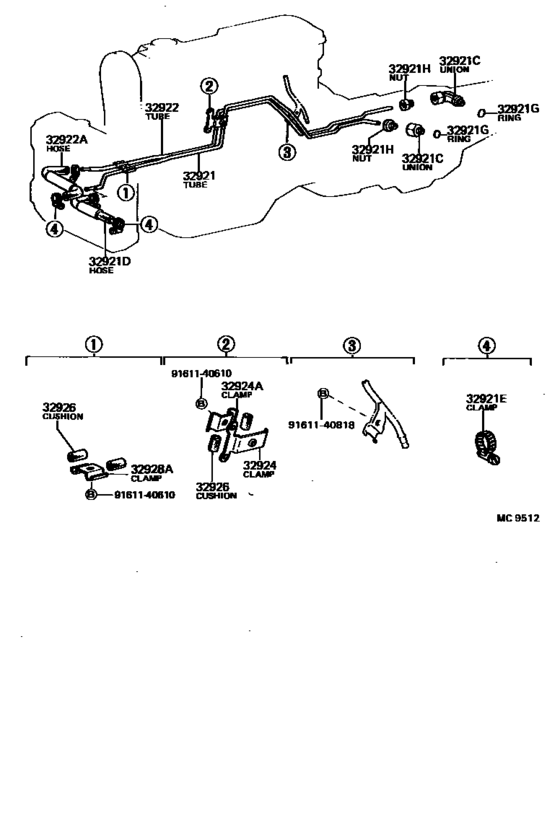

Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC) 19

#	OEM	Part name
32921	32921-22210	Tube, Oil Cooler Inlet, No.1
32921	32921-22211	Tube, Oil Cooler Inlet, No.1
32921	90404-14007	Union(For Oil Cooler Tube)
32921	90407-14003	Union(For Oil Cooler Tube)
32921	32941-22010	Hose(For Oil Cooler Inlet)
32921	90460-14085	Clamp, Hose(For Oil Cooler)
32921	90460-20004	Clamp, Hose(For Oil Cooler)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32921	90402-14004	Nut, Union(For Oil Cooler Tube)
32922	32922-22150	Tube, Oil Cooler Outlet, No.1
32922	32942-22030	Hose(For Oil Cooler Outlet)
32924	32924-22060	Clamp, Oil Cooler Tube, No.2
32924	32924-22061	Clamp, Oil Cooler Tube, No.2
32924	90462-12085	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-30011	Cushion, Oil Cooler Tube(Atm)
9161140610	91611-40610	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161140610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161140818	91611-40818	Bolt(for Oil Receiver Pipe)
9161140818	90119-08830	Bolt(For Oil Receiver Pipe)

OEM	Part name	Category
32921-22210	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
32921-22211	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
32922-22150	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
32924-22060	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
32924-22061	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
32926-30011	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
32941-22010	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
32942-22030	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
90119-08830	Bolt(For Oil Receiver Pipe)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
90402-14004	Nut, Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
90404-14007	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
90407-14003	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
90460-14085	Clamp, Hose(For Oil Cooler)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
90460-20004	Clamp, Hose(For Oil Cooler)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
90462-12085	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
91611-40610	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
91611-40818	Bolt(for Oil Receiver Pipe)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Oil Cooler & Tube (Atm) ([02.1983 - ] (8302- )4FC..TWC)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 187
Collected: 2026-08-02
