GX60

Toyota CHASER · 1980 · 4,485 parts · 168 categories
GX60 ×

← Back to categories

4,485 items

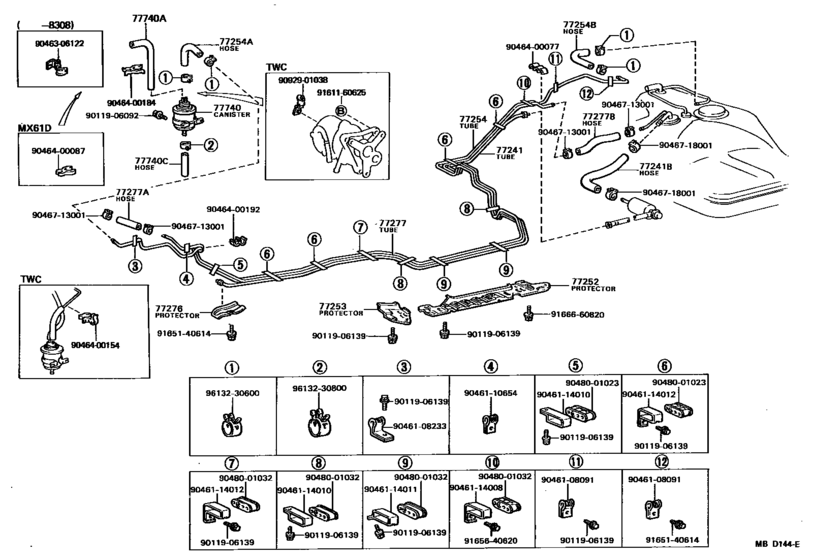

Fuel Tank & Tube ([09.1980 - ] (8009- )GX6#,MX61) 56
#OEMPart name
77241 77251-22210 Tube, Fuel Main, No.1
77241 77251-22250 Tube, Fuel Main, No.1
77241 77259-22030 Hose, Fuel, No.2 (For Main Tube, No.1)
77252 77266-22020 Protector, Fuel Tube
77253 77267-22010 Protector, Fuel Tube, No.2
77254 77261-22050 Tube, Fuel Emission, No.1
77254 95332-06030 Hose(For Carburetor)
77254 95333-06030 Hose, Fuel
77254 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77254 95337-06020 Hose, Differential Pressure Control
77276 77276-22010 Protector, Fuel Hose
77277 77255-22110 Tube, Fuel Return, No.1
77277 77255-22250 Tube, Fuel Return, No.1
77277 95335-08030 Hose, Fuel, No.1(For Return Tube, No.1)
77277 95336-08030 Hose, Fuel, No.1(For Return Tube, No.1)
77277 95335-08022 Hose, Fuel, No.2(For Return Tube, No.1)
77740 77740-22170 Canister Assy, Charcoal
77740 90445-08201 Hose, Fuel, No.1(For Charcoal Canister) - VACUUM, NO.1
77740 90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)
77740 90445-12120 Hose, Fuel, No.3(For Charcoal Canister)
77740 95326-07014 Hose, Fuel, No.3(For Charcoal Canister) - FUEL, NO.1 (FOR FUEL EMISSION TUBE)
77740 95332-08020 Hose, Fuel Pipe, No.1
77740 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
9011906092 90119-06092 New Genuine Part
9011906092 90119-06699 BOLT WWASHER
9011906139 90119-06139 New Genuine Part
9011906139 91651-40614 Bolt
9046108091 90461-08091 New Genuine Part
9046108233 90461-08233 New Genuine Part
9046110654 90461-10654 New Genuine Part
9046114008 90461-14008 New Genuine Part
9046114010 90461-14010 New Genuine Part
9046114011 90461-14011 New Genuine Part
9046114012 90461-14012 New Genuine Part
9046306122 90463-06122 New Genuine Part
9046400077 90464-00077 New Genuine Part
9046400087 90464-00087 New Genuine Part
9046400154 90464-00154 New Genuine Part
9046400184 90464-00184 Clamp, Vacuum Tube
9046400192 90464-00192 Clamp, Fuel Tube, No.1 (For Front Fuel Main)
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9046718001 90467-18001 Clip(For Ventilation Hose No.2)
9048001023 90480-01023 New Genuine Part
9048001032 90480-01032 New Genuine Part
9092901038 90929-01038 New Genuine Part
9161160625 91611-60625 Bolt, W/washer (For Parking Cove & Case)
9161160625 91611-B0625 Bolt (For Automatic Transmission Oil Pan)
9165640620 91656-40620 Bolt(For Oil Receiver Pipe)
9165640620 91651-60618 Bolt(For Oil Receiver Pipe)
9166660820 91666-60820 New Genuine Part
9166660820 91661-60816 Bolt
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
