Search › Model › GX60

GX60

Toyota CHASER · 1980 · 4,485 parts · 168 categories

4,485 items

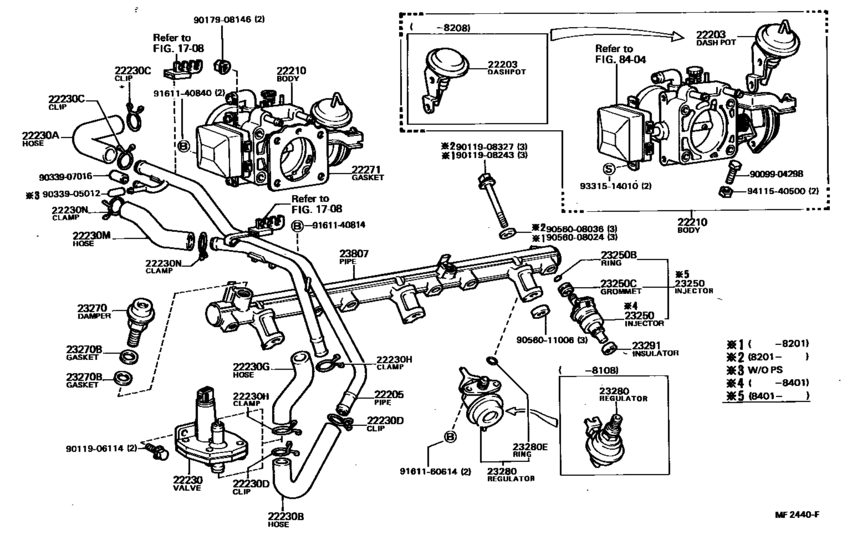

Fuel Injection System ([09.1980 - ] (8009- )1GEU) 91

#	OEM	Part name
22203	22203-70010	Dash Pot Sub-Assy(For Throttle Body)
22205	22205-70010	Pipe Sub-Assy, Auxiliary Air
22205	22205-70020	Pipe Sub-Assy, Auxiliary Air
22205	22233-70020	Hose, Auxiliary Air Valve, No.1
22210	22210-70010	Body Assy, Throttle
22230	22230-70010	Valve Assy, Auxiliary Air
22230	22230-70011	Valve Assy, Auxiliary Air
22230	22230-70021	Valve Assy, Auxiliary Air
22230	22233-70010	Hose, Auxiliary Air Valve, No.1
22230	22234-70010	Hose, Auxiliary Air Valve, No.2
22230	90467-20002	Clip(For Ventilation Tube)
22230	90467-21152	Clip Or Clamp(For Ventilation Hose)
22230	22237-70010	Hose, Auxiliary Air Valve, No.3
22271	22271-70010	Gasket, Throttle Body
23210	23210-45030	Pump Assy, Fuel W/motor & Bracket
23210	23206-45030	Bracket, Fuel Pump
23230	23230-26080	Silencer Assy
23232	23232-26080	Gasket(For Fuel Pump Hose)
23232	23232-41081	Gasket(For Fuel Pump Hose)
23233	90999-99066	Hose, Fuel Pump
23233	90999-99097	Hose, Fuel Pump
23233	90099-01012	Washer(For Fuel Pump Hose)
23233	90099-01496	Washer(For Fuel Pump Hose)
23250	23250-70010	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23260	23260-70010	Injector Assy, Cold Start Fuel
23260	23260-79015	Injector Assy, Cold Start Fuel
23260	23260-70020	Injector Assy, Cold Start Fuel
23260	23260-79025	Injector Assy, Cold Start Fuel
23270	23270-70010	Damper Assy, Fuel Pressure Pulsation
23270	90430-14002	Gasket(For Pulsation Damper Hose)
23270	90430-17002	Gasket(For Pulsation Damper Hose)
23280	23280-70010	Regulator Assy, Fuel Pressure
23280	23280-70020	Regulator Assy, Fuel Pressure
23291	23291-41010	Insulator, Injector Vibration
23293	23293-70010	Gasket, Cold Start Injector
23300	23300-70010	Filter, Fuel(For Efi)
23300	23300-79015	Filter, Fuel(For Efi)
23300	23300-70011	Filter, Fuel(For Efi)
23300	90430-12005	Gasket(For Water Hole)
23300	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23300	90923-01216	Hose, Fuel(For Fuel Inlet)
23300	90923-01302	Hose, Fuel(For Fuel Inlet)
23801	23801-70010	Pipe Sub-Assy, Fuel, No.1
23802	23802-70010	Pipe Sub-Assy, Fuel, No.2
23802	23802-70011	Pipe Sub-Assy, Fuel, No.2
23802	23802-70040	Pipe Sub-Assy, Fuel, No.2
23802	90401-08003	Bolt, Union
23802	90401-10011	Bolt, Union(For Fuel Pipe Or Hose Set)
23802	90099-01459	Gasket
23802	90430-08005	Gasket
23803	23803-70010	Pipe Sub-Assy, Fuel, No.3
23803	23803-70020	Pipe Sub-Assy, Fuel, No.3
23807	23807-70010	Pipe Sub-Assy, Fuel Delivery
23807	23807-70020	Pipe Sub-Assy, Fuel Delivery
2321741100	23217-41100	Filter, Suction
2384170010	23841-70010	Clamp, Fuel Pipe(hose), No.1
9009904298	90099-04298	New Genuine Part
9011906114	90119-06114	New Genuine Part
9011906114	90119-06206	New Genuine Part
9011908243	90119-08243	New Genuine Part
9011908243	90119-08327	New Genuine Part
9011908243	90560-08036	New Genuine Part
9017906045	90179-06045	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9033905012	90339-05012	New Genuine Part
9033907016	90339-07016	Cap(For Intake Air Connector)
9038510002	90385-10002	Bush(For Brake Traction Actuator Bracket)
9046112179	90461-12179	New Genuine Part
9046112180	90461-12180	New Genuine Part
9054105007	90541-05007	New Genuine Part
9056008024	90560-08024	Spacer, No.2(For Delivery Pipe)
9056011006	90560-11006	Spacer, No.1(For Delivery Pipe)
9056108002	90561-08002	Spacer(For Brake Traction Actuator Bracket)
9161140812	91611-40812	Bolt(for Drive Plate & Torque Converter Setting)
9161140812	91611-B0812	Bolt
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161140840	91611-40840	New Genuine Part
9161140840	91611-60840	BOLT
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161640616	91616-40616	Screw Or Bolt(for Valve Rocker Shaft Lock)
9165140614	91651-40614	Bolt
9165140816	91651-40816	BOLT
9166640830	91666-40830	New Genuine Part
9166640830	91661-60830	Bolt
9331514010	93315-14010	SCREW
9411540500	94115-40500	Nut(For Lpg Filter Stud Bolt Set)

OEM	Part name	Category
22203-70010	Dash Pot Sub-Assy(For Throttle Body)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22205-70010	Pipe Sub-Assy, Auxiliary Air	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22205-70020	Pipe Sub-Assy, Auxiliary Air	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22210-70010	Body Assy, Throttle	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22230-70010	Valve Assy, Auxiliary Air	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22230-70011	Valve Assy, Auxiliary Air	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22230-70021	Valve Assy, Auxiliary Air	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22233-70010	Hose, Auxiliary Air Valve, No.1	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22233-70020	Hose, Auxiliary Air Valve, No.1	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22234-70010	Hose, Auxiliary Air Valve, No.2	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22237-70010	Hose, Auxiliary Air Valve, No.3	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
22271-70010	Gasket, Throttle Body	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23206-45030	Bracket, Fuel Pump	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23210-45030	Pump Assy, Fuel W/motor & Bracket	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23217-41100	Filter, Suction	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23230-26080	Silencer Assy	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23232-26080	Gasket(For Fuel Pump Hose)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23232-41081	Gasket(For Fuel Pump Hose)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23250-70010	Injector Assy, Fuel	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23260-70010	Injector Assy, Cold Start Fuel	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23260-70020	Injector Assy, Cold Start Fuel	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23260-79015	Injector Assy, Cold Start Fuel	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23260-79025	Injector Assy, Cold Start Fuel	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23270-70010	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23280-70010	Regulator Assy, Fuel Pressure	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23280-70020	Regulator Assy, Fuel Pressure	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23293-70010	Gasket, Cold Start Injector	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23300-70010	Filter, Fuel(For Efi)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23300-70011	Filter, Fuel(For Efi)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23300-79015	Filter, Fuel(For Efi)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23801-70010	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23802-70010	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23802-70011	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23802-70040	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23803-70010	Pipe Sub-Assy, Fuel, No.3	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23803-70020	Pipe Sub-Assy, Fuel, No.3	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23807-70010	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23807-70020	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
23841-70010	Clamp, Fuel Pipe(hose), No.1	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90099-01012	Washer(For Fuel Pump Hose)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90099-01459	Gasket	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90099-01496	Washer(For Fuel Pump Hose)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90099-04298	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90119-06114	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90119-06206	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90119-08243	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90119-08327	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90179-06045	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90179-08146	Nut	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90179-08204	Nut	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90339-05012	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90339-07016	Cap(For Intake Air Connector)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90385-10002	Bush(For Brake Traction Actuator Bracket)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90401-08003	Bolt, Union	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90401-10011	Bolt, Union(For Fuel Pipe Or Hose Set)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90430-08005	Gasket	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90430-12005	Gasket(For Water Hole)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90430-14002	Gasket(For Pulsation Damper Hose)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90430-17002	Gasket(For Pulsation Damper Hose)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90461-12179	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90461-12180	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90467-20002	Clip(For Ventilation Tube)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90467-21152	Clip Or Clamp(For Ventilation Hose)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90541-05007	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90560-08024	Spacer, No.2(For Delivery Pipe)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90560-08036	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90560-11006	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90561-08002	Spacer(For Brake Traction Actuator Bracket)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90923-01216	Hose, Fuel(For Fuel Inlet)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90923-01302	Hose, Fuel(For Fuel Inlet)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90999-99066	Hose, Fuel Pump	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
90999-99097	Hose, Fuel Pump	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91611-40812	Bolt(for Drive Plate & Torque Converter Setting)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91611-40840	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91611-60814	Bolt	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91611-60840	BOLT	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91611-B0812	Bolt	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91616-40616	Screw Or Bolt(for Valve Rocker Shaft Lock)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91651-40614	Bolt	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91651-40816	BOLT	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91661-60830	Bolt	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
91666-40830	New Genuine Part	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
93315-14010	SCREW	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
94115-40500	Nut(For Lpg Filter Stud Bolt Set)	Fuel Injection System ([09.1980 - ] (8009- )1GEU)
