Search › Model › GX60

GX60

Toyota CHASER · 1980 · 4,485 parts · 168 categories

4,485 items

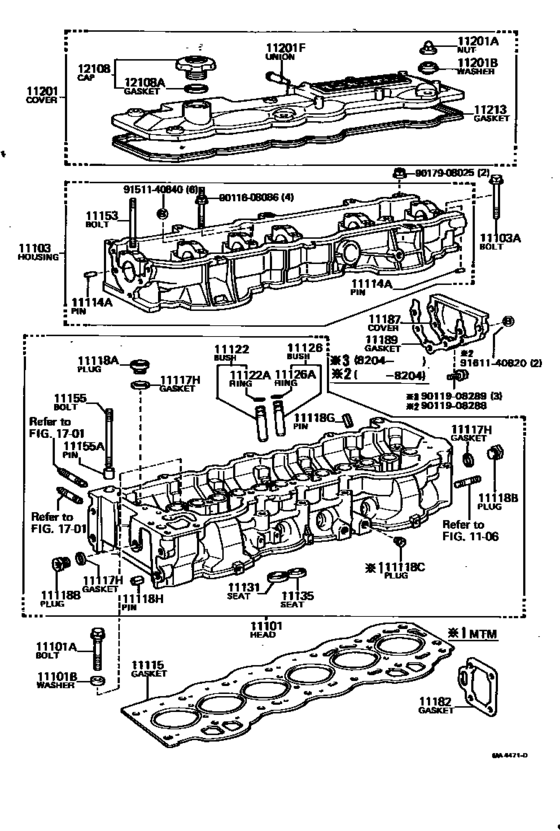

Cylinder Head ([09.1980 - ] (8009- )1GEU) 55

#	OEM	Part name
11101	11101-79025	Head Sub-Assy, Cylinder
11101	11101-70010	Head Sub-Assy, Cylinder
11101	90109-10025	Bolt(For Cylinder Head Set)
11101	90201-10344	Washer, Plate(For Cylinder Head Set)
11103	11103-79016	Housing Sub-Assy, Camshaft
11103	11103-79017	Housing Sub-Assy, Camshaft
11103	90105-08030	Bolt(For Camshaft Housing Set)
11114	90250-06003	Pin, Straight
11115	11115-70010	Gasket, Cylinder Head
11115	11115-70020	Gasket, Cylinder Head
11117	90430-12005	Gasket(For Water Hole)
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11118	90341-20002	Plug, W/head Taper Screw, No.1
11118	90341-12002	Plug, Straight, No.2
11118	90341-12013	Plug, Straight, No.2
11118	90254-11001	Pin, Slotted Spring, No.1
11118	90254-13001	Pin, Slotted Spring, No.2
11118	90340-16002	Plug, W/head Straight Screw, No.2
11118	90341-16094	Plug, W/head Taper Screw, No.1
11122	11126-15020	Bush, Intake Valve Guide
11122	11127-15020	Bush, Intake Valve Guide
11122	90520-10001	Ring, Shaft Snap (For Valve Guide Bush)
11126	11126-70020	Bush, Exhaust Valve Guide
11126	11127-70020	Bush, Exhaust Valve Guide
11131	11131-15010	Seat, Intake Valve
11131	11131-15020	Seat, Intake Valve
11131	11132-15010	Seat, Intake Valve
11131	11132-15020	Seat, Intake Valve
11135	11135-15010	Seat, Exhaust Valve
11135	11135-70030	Seat, Exhaust Valve
11135	11136-15010	Seat, Exhaust Valve
11135	11136-70030	Seat, Exhaust Valve
11153	90116-06015	Bolt, Stud(For Camshaft Housing To Cylinder Head Cover)
11155	90116-08088	Bolt, Stud(For Head To Camshaft Housing)
11155	90253-13017	Pin, Ring W/head
11182	11182-70010	Gasket, Cylinder Head Rear Plate
11182	11182-70011	Gasket, Cylinder Head Rear Plate
11187	11185-70011	Cover, Camshaft Housing, Rear
11187	91611-60828	Bolt(For Clutch Release Cylinder Setting)
11187	11185-70012	Cover, Camshaft Housing, Rear
11189	11186-70010	Gasket, Camshaft Housing Rear Cover
11201	11201-79015	Cover Sub-Assy, Cylinder Head
11201	90176-06008	Nut, Cap(For Cylinder Head Cover)
11201	90210-08020	Washer, Seal(For Cylinder Head Cover)
11201	90406-09001	Union(For Positive Crankcase Ventilation)
11213	11213-70010	Gasket, Cylinder Head Cover
12108	12180-13010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
9011608086	90116-08086	New Genuine Part
9011908288	90119-08288	New Genuine Part
9011908289	90119-08289	Bolt(for Clutch Release Cylinder Setting)
9017908025	90179-08025	Nut, Cap(For Cylinder Head Cover)
9151140840	91511-40840	Bolt(for Alternator)
9151140840	91511-J0840	Bolt(For Alternator)
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)

OEM	Part name	Category
11101-70010	Head Sub-Assy, Cylinder	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11101-79025	Head Sub-Assy, Cylinder	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11103-79016	Housing Sub-Assy, Camshaft	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11103-79017	Housing Sub-Assy, Camshaft	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11115-70010	Gasket, Cylinder Head	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11115-70020	Gasket, Cylinder Head	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11126-15020	Bush, Intake Valve Guide	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11126-70020	Bush, Exhaust Valve Guide	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11127-15020	Bush, Intake Valve Guide	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11127-70020	Bush, Exhaust Valve Guide	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11131-15010	Seat, Intake Valve	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11131-15020	Seat, Intake Valve	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11132-15010	Seat, Intake Valve	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11132-15020	Seat, Intake Valve	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11135-15010	Seat, Exhaust Valve	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11135-70030	Seat, Exhaust Valve	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11136-15010	Seat, Exhaust Valve	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11136-70030	Seat, Exhaust Valve	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11182-70010	Gasket, Cylinder Head Rear Plate	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11182-70011	Gasket, Cylinder Head Rear Plate	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11185-70011	Cover, Camshaft Housing, Rear	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11185-70012	Cover, Camshaft Housing, Rear	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11186-70010	Gasket, Camshaft Housing Rear Cover	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11201-79015	Cover Sub-Assy, Cylinder Head	Cylinder Head ([09.1980 - ] (8009- )1GEU)
11213-70010	Gasket, Cylinder Head Cover	Cylinder Head ([09.1980 - ] (8009- )1GEU)
12180-13010	Cap Sub-Assy, Oil Filler	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90105-08030	Bolt(For Camshaft Housing Set)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90109-10025	Bolt(For Cylinder Head Set)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90116-06015	Bolt, Stud(For Camshaft Housing To Cylinder Head Cover)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90116-08086	New Genuine Part	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90116-08088	Bolt, Stud(For Head To Camshaft Housing)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90119-08288	New Genuine Part	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90119-08289	Bolt(for Clutch Release Cylinder Setting)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90176-06008	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90179-08025	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90201-10344	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90210-08020	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90250-06003	Pin, Straight	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90253-13017	Pin, Ring W/head	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90254-11001	Pin, Slotted Spring, No.1	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90254-13001	Pin, Slotted Spring, No.2	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90340-16002	Plug, W/head Straight Screw, No.2	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90341-12002	Plug, Straight, No.2	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90341-12013	Plug, Straight, No.2	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90341-16094	Plug, W/head Taper Screw, No.1	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90406-09001	Union(For Positive Crankcase Ventilation)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90430-12005	Gasket(For Water Hole)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
90520-10001	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
91511-40840	Bolt(for Alternator)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
91511-J0840	Bolt(For Alternator)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Cylinder Head ([09.1980 - ] (8009- )1GEU)
