Search › Model › GX60

GX60

Toyota CHASER · 1980 · 4,485 parts · 168 categories

4,485 items

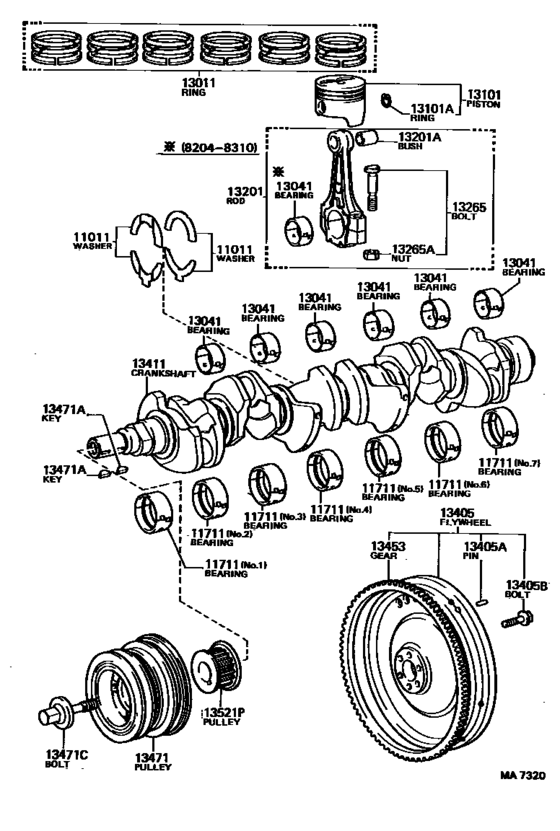

Crankshaft & Piston ([09.1980 - ] (8009- )1GEU) 45

#	OEM	Part name
11011	11011-70010	Washer Set, Crankshaft Thrust
11711	11701-70011-01	Bearing, Crankshaft
11711	11701-70011-02	Bearing, Crankshaft
11711	11701-70011-03	Bearing, Crankshaft
11711	11701-70012-01	Bearing, Crankshaft
11711	11701-63022-01	Bearing, Crankshaft
11711	11701-70012-02	Bearing, Crankshaft
11711	11701-63022-02	Bearing, Crankshaft
11711	11701-70012-03	Bearing, Crankshaft
11711	11701-63022-03	Bearing, Crankshaft
13011	13011-70010	Ring Set, Piston
13011	13013-70010	Ring Set, Piston
13011	13014-70010	Ring Set, Piston
13011	13015-70010	Ring Set, Piston
13041	13041-70010-03	Bearing, Connecting Rod
13041	13041-70010-04	Bearing, Connecting Rod
13041	13041-70010-05	Bearing, Connecting Rod
13101	13101-70010	Piston Sub-Assy, W/pin
13101	13103-70010	Piston Sub-Assy, W/pin
13101	13104-70010	Piston Sub-Assy, W/pin
13101	13105-70010	Piston Sub-Assy, W/pin
13101	90521-21088	Ring, Hole Snap(For Piston Pin)
13201	13201-70010	Rod Sub-Assy, Connecting
13201	13201-13010	Rod Sub-Assy, Connecting
13201	13201-79015	Rod Sub-Assy, Connecting
13201	13201-79055	Rod Sub-Assy, Connecting
13201	13201-79056	Rod Sub-Assy, Connecting
13201	90999-73070	Bush(For Connecting Rod Small End)
13265	13265-29015	Bolt, Connecting Rod
13265	13265-70020	Bolt, Connecting Rod
13265	90170-09001	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-79015	Flywheel Sub-Assy
13405	90250-08054	Pin, Straight
13405	90105-10042	Bolt, Flywheel Setting
13411	13411-70010	Crankshaft
13411	13411-70905	Crankshaft
13411	13411-70011	Crankshaft
13453	13453-20010	Gear, Flywheel Ring
13471	13407-70030	Pulley, Crankshaft
13471	99332-00910	Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
13471	13407-70031	Pulley, Crankshaft
13471	95161-10519	Key(For Oil Pump Drive Spline)
13471	90105-18001	Bolt(For Crankshaft Pulley Set)
13521	13521-70010	Pulley, Crankshaft Timing
13521	13521-70011	Pulley, Crankshaft Timing

OEM	Part name	Category
11011-70010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
11701-63022-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
11701-63022-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
11701-63022-03	Bearing, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
11701-70011-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
11701-70011-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
11701-70011-03	Bearing, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
11701-70012-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
11701-70012-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
11701-70012-03	Bearing, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13011-70010	Ring Set, Piston	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13013-70010	Ring Set, Piston	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13014-70010	Ring Set, Piston	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13015-70010	Ring Set, Piston	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13041-70010-03	Bearing, Connecting Rod	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13041-70010-04	Bearing, Connecting Rod	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13041-70010-05	Bearing, Connecting Rod	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13101-70010	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13103-70010	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13104-70010	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13105-70010	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13201-13010	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13201-70010	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13201-79015	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13201-79055	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13201-79056	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13265-29015	Bolt, Connecting Rod	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13265-70020	Bolt, Connecting Rod	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13405-79015	Flywheel Sub-Assy	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13407-70030	Pulley, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13407-70031	Pulley, Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13411-70010	Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13411-70011	Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13411-70905	Crankshaft	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13453-20010	Gear, Flywheel Ring	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13521-70010	Pulley, Crankshaft Timing	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
13521-70011	Pulley, Crankshaft Timing	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
90105-10042	Bolt, Flywheel Setting	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
90105-18001	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
90170-09001	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
90250-08054	Pin, Straight	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
90521-21088	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
90999-73070	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
95161-10519	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
99332-00910	Belt, V (Cooler Compressor To Crankshaft Pulley), No.1	Crankshaft & Piston ([09.1980 - ] (8009- )1GEU)
