GX51

Toyota CRESTA · 1980 · 5,181 parts · 171 categories
GX51 ×

← Back to categories

5,181 items

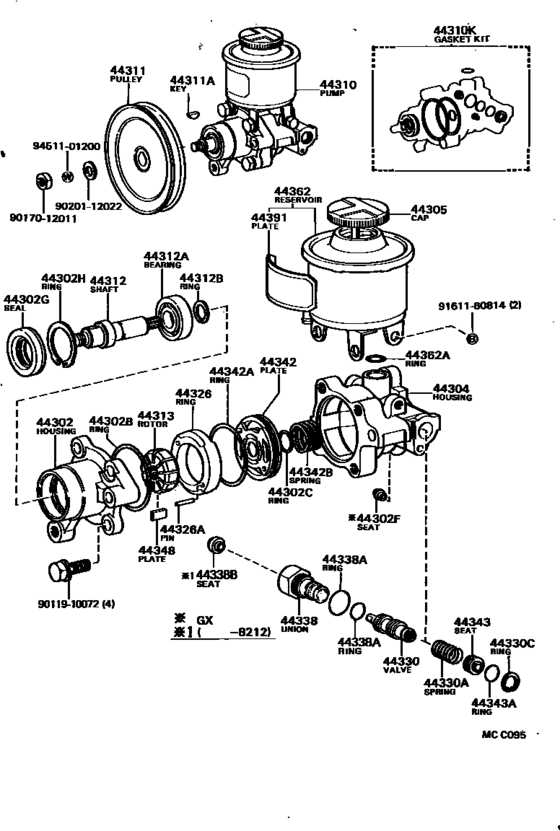

Vane Pump & Reservoir (Power Steering) ([01.1982 - ] (8110-8208)MX51 ; (8201- )EFI,TBO) 102
#OEMPart name
44302 44302-22010 Housing Sub-Assy, Vane Pump, Front
44302 44302-22020 Housing Sub-Assy, Vane Pump, Front
44302 90301-27002 Ring, O, No.1(For Vane Pump Housing)
44302 90301-60001 Ring, O, No.1(For Vane Pump Housing)
44302 90301-15002 Ring, O, No.2(For Vane Pump Housing)
44302 96711-19016 Ring, O (For 5Th Shift Arm Shaft)
44302 90410-05003 Seat, Union(For Vane Pump Housing)
44302 90410-05035 Seat, Union(For Valve Body Housing)
44302 90311-17001 Seal, Oil, No.2(For Vane Pump Housing)
44302 90311-24001 Seal, Oil, No.1(For Vane Pump Housing)
44302 90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)
44304 44304-22010 Housing Sub-Assy, Vane Pump, Rear
44304 44304-22012 Housing Sub-Assy, Vane Pump, Rear
44304 90105-10092 Bolt(For Alternator)
44304 44343-12040 Seat, Flow Control Spring
44304 90501-12103 Spring, Compression(For Flow Control Valve)
44304 44324-22010 Housing Sub-Assy, Vane Pump, Rear
44305 44305-22010 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-30020 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir
44310 44320-22100 Pump Assy, Vane
44310 44320-24011 Pump Assy, Vane
44310 44320-22901 Pump Assy, Vane
44310 04446-14010 Gasket Kit, Power Steering Pump
44310 04446-14040 Gasket Kit, Power Steering Pump
44310 04446-22030 Gasket Kit, Power Steering Pump
44311 44311-22020 Pulley, Vane Pump
44311 44311-22030 Pulley, Vane Pump
44311 90280-05002 Key, Vane Pump Pulley
44311 90280-05008 Key, Woodruff(For Distributor Drive Gear)
44312 44312-12010 Shaft, Vane Pump
44312 44312-22010 Shaft, Vane Pump
44312 90363-17004 Bearing(For Vane Pump Shaft)
44312 90520-10002 Ring, Snap, No.1(For Vane Pump Shaft)
44312 90520-15001 Ring, Snap, No.1(For Vane Pump Shaft)
44312 90520-15005 Ring, Snap, No.1(For Vane Pump Shaft)
44313 44313-12010 Rotor, Vane Pump
44313 44313-22040 Rotor, Vane Pump
44313 44313-12020 Rotor, Vane Pump
44313 44313-22050 Rotor, Vane Pump
44313 44313-12030 Rotor, Vane Pump
44313 44313-22060 Rotor, Vane Pump
44313 44313-12040 Rotor, Vane Pump
44313 44313-22070 Rotor, Vane Pump
44313 44313-12050 Rotor, Vane Pump
44313 44313-22080 Rotor, Vane Pump
44326 44325-12010 Ring, Cam(For Vane Pump)
44326 44325-12020 Ring, Cam(For Vane Pump)
44326 44325-12030 Ring, Cam(For Vane Pump)
44326 44325-12040 Ring, Cam(For Vane Pump)
44326 44325-12050 Ring, Cam(For Vane Pump)
44326 90250-04016 Pin, Straight(For Vane Pump Cam Ring)
44326 90250-05008 Pin, Straight(For Vane Pump Cam Ring)
44330 44330-12010 Valve Assy, Flow Control
44330 44330-32670 Valve Assy, Flow Control
44330 44330-12020 Valve Assy, Flow Control
44330 44330-32680 Valve Assy, Flow Control
44330 44330-12030 Valve Assy, Flow Control
44330 44330-32690 Valve Assy, Flow Control
44330 44330-12040 Valve Assy, Flow Control
44330 44330-32700 Valve Assy, Flow Control
44330 44330-12050 Valve Assy, Flow Control
44330 44330-32710 Valve Assy, Flow Control
44330 44330-12060 Valve Assy, Flow Control
44330 44330-32720 Valve Assy, Flow Control
44330 44330-12130 Valve Assy, Flow Control
44330 44330-12140 Valve Assy, Flow Control
44330 44330-12150 Valve Assy, Flow Control
44330 44330-12160 Valve Assy, Flow Control
44330 44330-12170 Valve Assy, Flow Control
44330 44330-12180 Valve Assy, Flow Control
44330 44330-22010 Valve Assy, Flow Control
44330 44330-22020 Valve Assy, Flow Control
44330 44330-22030 Valve Assy, Flow Control
44330 90501-12447 Spring, Compression(For Flow Control Valve)
44330 90501-14044 Spring, Compression(For Flow Control Valve)
44330 96151-01700 Ring, Snap(For Flow Control Valve)
44338 44308-22020 Union, Pressure Port
44338 90301-22001 Ring, O(For Pressure Port Union)
44338 96711-19014 O-Ring
44338 90410-06030 Seat, Union(For Valve Body Housing)
44342 44341-12010 Plate, Vane Pump Side, Front
44342 90301-53002 Ring, O(For Vane Pump Side Plate Rear)
44342 90501-23014 Spring, Compression(For Vane Pump Side Plate Rear)
44343 44343-12010 Seat, Flow Control Spring
44348 44345-12010 Plate, Vane Pump
44348 44345-12020 Plate, Vane Pump
44348 44345-12030 Plate, Vane Pump
44348 44345-12040 Plate, Vane Pump
44348 44345-12050 Plate, Vane Pump
44362 44306-22040 Reservoir, Oil(For Vane Pump)
44362 44306-22100 Reservoir, Oil(For Vane Pump)
44362 44306-22200 Reservoir, Oil(For Vane Pump) - VANE PUMP OIL
44362 90301-13001 Ring, O(For Flow Control Valve)
44362 96711-19013 Ring, O(For Power Steering Suction Port)
44391 44391-22010 Plate, Power Steering Oil Reservoir Caution
44391 44391-30020 Plate, Power Steering Oil Reservoir Caution
9011910072 90119-10072 New Genuine Part
9017012011 90170-12011 Nut(For Vane Pump Pulley)
9020112022 90201-12022 New Genuine Part
9161160814 91611-60814 Bolt
9451101200 94511-01200 WASHER
