Search › Model › GX51

GX51

Toyota CRESTA · 1980 · 5,181 parts · 171 categories

5,181 items

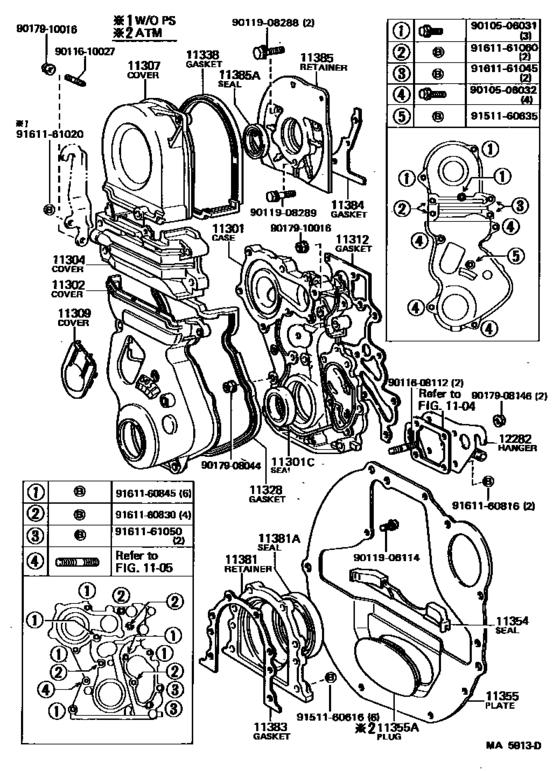

Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU) 63

#	OEM	Part name
11301	11311-70010	Case Sub-Assy, Timing Gear
11301	11311-79015	Case Sub-Assy, Timing Gear
11301	11311-70011	Case Sub-Assy, Timing Gear
11301	90311-45003	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-45015	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11302	11302-70010	Cover Sub-Assy, Timing Chain Or Belt
11302	11302-70011	Cover Sub-Assy, Timing Chain Or Belt
11304	11322-70010	Cover, Timing Chain Or Belt, No.2
11304	11322-70011	Cover, Timing Chain Or Belt, No.2
11307	11304-70010	Cover, Sub-Assy, Timing Belt, No.3
11309	11325-70010	Cover Sub-Assy, Timing Belt, No.4
11312	11312-70010	Gasket, Front End Plate
11312	11312-70020	Gasket, Front End Plate
11312	11312-70011	Gasket, Front End Plate
11328	11328-70010	Gasket, Timing Gear Or Chain Cover
11328	11328-70011	Gasket, Timing Gear Or Chain Cover
11338	11329-70010	Gasket, Timing Chain Cover, No.2
11354	11354-70010	Seal, Flywheel Housing Dust
11355	11355-70020	Plate, Rear End
11355	90950-01307	Plug, Hole(For Rear End Plate)
11381	11381-70010	Retainer, Engine Rear Oil Seal
11381	90311-75113	Seal, Engine Rear Oil
11381	90311-75009	Seal, Engine Rear Oil
11383	11383-70010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-70011	Gasket, Engine Rear Oil Seal Retainer
11384	11384-70010	Gasket, Oil Seal Retainer, No.2
11385	11382-70010	Retainer, Camshaft Oil Seal
11385	90311-38017	Seal, Oil(For Camshaft Setting)
11385	90311-38067	Seal, Oil(For Camshaft Setting)
12282	12282-70010	Hanger, Engine, No.2
12282	12282-70011	Hanger, Engine, No.2
9010506031	90105-06031	New Genuine Part
9010506032	90105-06032	New Genuine Part
9010506032	91511-G0620	BOLT, FLANGE
9011608112	90116-08112	Bolt, Stud(For Water Pump Coupling)
9011610027	90116-10027	Bolt, Stud(For Manifold To Exhaust Pipe)
9011906114	90119-06114	New Genuine Part
9011906114	90119-06206	New Genuine Part
9011908288	90119-08288	New Genuine Part
9011908289	90119-08289	Bolt(for Clutch Release Cylinder Setting)
9011908289	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9017908044	90179-08044	NUT
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE
9151160635	91511-60635	Bolt
9151160635	90080-10195	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160830	91611-60830	Bolt(For Clutch Release Cylinder Setting)
9161160845	91611-60845	Bolt(for Clutch Release Cylinder Setting)
9161160845	91611-B0845	Bolt(for Clutch Release Cylinder Setting)
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9161161045	91611-61045	Bolt, Hexagon(For Idle Gear Bolt Lock)
9161161045	91612-61045	Bolt(For Transaxle & Engine Setting)
9161161050	91611-61050	Bolt(For Transaxle & Engine Setting)
9161161050	91612-61050	Bolt(For Transaxle & Engine Setting)
9161161060	91611-61060	Bolt(for Clutch Release Cylinder Setting)
9161161060	91612-61060	Bolt(for Clutch Release Cylinder Setting)

OEM	Part name	Category
11302-70010	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11302-70011	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11304-70010	Cover, Sub-Assy, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11311-70010	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11311-70011	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11311-79015	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11312-70010	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11312-70011	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11312-70020	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11322-70010	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11322-70011	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11325-70010	Cover Sub-Assy, Timing Belt, No.4	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11328-70010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11328-70011	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11329-70010	Gasket, Timing Chain Cover, No.2	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11354-70010	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11355-70020	Plate, Rear End	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11381-70010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11382-70010	Retainer, Camshaft Oil Seal	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11383-70010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11383-70011	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
11384-70010	Gasket, Oil Seal Retainer, No.2	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
12282-70010	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
12282-70011	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90080-10195	Bolt	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90105-06031	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90105-06032	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90116-08112	Bolt, Stud(For Water Pump Coupling)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90116-10027	Bolt, Stud(For Manifold To Exhaust Pipe)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90119-06114	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90119-06206	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90119-08288	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90119-08289	Bolt(for Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90179-08044	NUT	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90179-08146	Nut	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90179-08204	Nut	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90179-10016	Nut(For Counter Gear Shaft)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90179-10132	Nut	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90311-38017	Seal, Oil(For Camshaft Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90311-38067	Seal, Oil(For Camshaft Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90311-45003	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90311-45015	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90311-75009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90311-75113	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
90950-01307	Plug, Hole(For Rear End Plate)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91511-60616	BOLTFLANGE	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91511-60635	Bolt	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91511-B0616	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91511-G0620	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91611-60830	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91611-60845	Bolt(for Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91611-61020	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91611-61045	Bolt, Hexagon(For Idle Gear Bolt Lock)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91611-61050	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91611-61060	Bolt(for Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91611-B0816	Bolt	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91611-B0845	Bolt(for Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91612-61045	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91612-61050	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91612-61060	Bolt(for Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([03.1980 - ] (8003- )1GEU)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 171
Collected: 2026-08-02
